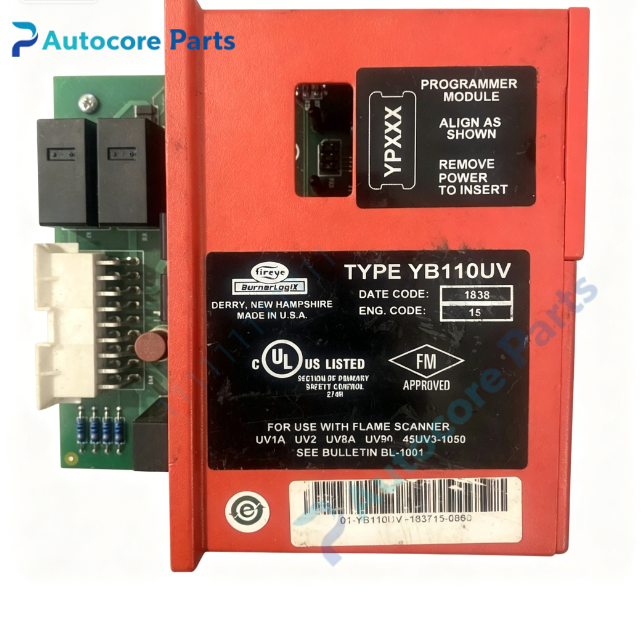

Fireye YB110UV BurnerLogix Y Integrated Burner Control Chassis

Technical Specifications

Model：YB110UV Brand：Fireye Product Type: BurnerLogix Y series microprocessor burner control chassis with built-in standard non-self-check UV flame amplifier

Control Feature:

• Amplifier type: Standard non-self-check UV flame amplifier

• Sequence control: Pre-purge, ignition trial, flame supervision, post-purge and safety lockout

• Supported burner modes: on/off,high-low-off and modulating burner

• Compatible flame detector: Fireye standard UV flame scanners (non self-check type)

• Built-in valve proving, burner runtime log and lockout fault history storage

• Support flame signal strength display and remote reset function

Electrical Parameters:

• Supply voltage: 120 VAC,50/60Hz

• Power consumption:25VA

• Flame input: Dedicated UV scanner signal terminals

• Relay outputs: Fuel valve,ignition,alarm and auxiliary relay outputs

• Digital inputs: Safety interlock,airflow,pressure and temperature limit switch inputs

• Communication: Optional Modbus RTU communication module

Mechanical & Structure:

• Mounting: DIN rail installation inside control cabinet

• Housing: NEMA1 metal chassis

• Front panel: Multi LED status indicators,manual reset button

• Expansion slot: For plug-in YP programmer module

• Optional display: BLV512 OLED or BLL510 LCD display (sold separately)

Environmental:

• Operating temperature: -40℃ ~ +60℃

• Ambient humidity: 0~90% non-condensing

• Certification: UL,FM approved

• Weight: Approx 1.45kg

System compatibility

YB110UV belongs to Fireye BurnerLogix Y burner control family. Compatible with Fireye standard non-self-check UV flame scanners. Matches YP series programmer modules,BLV512/BLL510 display units and wiring base 60-2810-1. Suitable for gas,oil and dual-fuel boiler and furnace burners. Widely used for industrial combustion safety control spare replacement.

Function

YB110UV is BurnerLogix Y integrated burner control chassis manufactured by Fireye. It integrates burner sequence control and standard non-self-check UV flame amplifier. It receives ultraviolet flicker signal from UV flame scanner to judge flame presence. The controller executes full burner operating cycle. When flame loss is detected, it triggers safety lockout and cuts fuel supply immediately to avoid unburned fuel accumulation and explosion risk. This model does NOT provide automatic scanner health self-check function. It supports fuel valve leak proving and stores lockout fault history for maintenance troubleshooting. Widely deployed for industrial boilers and furnaces burner combustion safety control and spare replacement.

Installation

Follow lockout/tagout safety procedure before installation. Mount YB110UV chassis on DIN rail in control cabinet with wiring base 60-2810-1. Install YP programmer module and optional display. Wire 120VAC power,external safety interlock switches,ignition transformer and fuel valve relays. Connect standard UV flame scanner wiring strictly following Fireye wiring schematic. Complete cold test and burner firing commissioning,verify UV flame signal and safety interlock action.

InterfaceAC power terminal block,UV flame scanner input terminals,digital interlock input terminals,relay output terminals,YP programmer slot,LED status indicators and reset button for Fireye YB110UV.

FeatureOriginal Fireye YB110UV BurnerLogix Y chassis,120VAC power,built-in standard non-self-check UV flame amplifier,full burner sequencing,integrated valve proving function,UL & FM safety certified. This spare unit is used for industrial boiler burner sequence and flame safety system maintenance and hardware replacement.

DiagnosticFlame lockout: Inspect UV scanner lens contamination,optical alignment,scanner wiring and flame signal strength. No scanner self-check: This model is non-self-check UV amplifier,does not support scanner auto diagnosis. Interlock lockout: Check external pressure/temperature/airflow limit switches and interlock loop continuity. No power: Check 120VAC supply voltage and internal fuse integrity. Valve proving failure: Inspect fuel valve sealing condition and valve switch wiring.

Product BriefYB110UV is Fireye BurnerLogix Y series 120VAC burner management chassis with standard non-self-check UV amplifier,designed for gas/oil burner applications,provides burner sequencing and ultraviolet flame safety interlock,classic spare for industrial furnace combustion control system.
