Fireye UV90-9 UV Flame Scanner

Technical Specifications

Model：UV90-9 Brand：Fireye Product Type: Non self-checking ultraviolet flame scanner for industrial burner flame detection

Detection Feature:

• Detection spectrum: Ultraviolet UV band

• Self-check function: NO built-in automatic sensor health self-check

• Mounting option: Front mounting or 90° lateral side mounting

• Flame target: Gas, light oil industrial burner flame

• Operating principle: Detect UV flicker radiation generated by combustion flame

• Mounting hardware: Supplied with snug-fit mounting block, no threaded sight pipe required

Electrical Parameters:

• Cable: 108 inch (3660mm) integrated shielded cable

• Power: Powered by matched Fireye non-self-check UV amplifier chassis

• Signal output: UV flame flicker signal to burner management chassis

Mechanical & Structure:

• Housing: Metal enclosure, NEMA 4X rated

• Window: UV transparent quartz viewing window

• Installation: Snug-fit block mounting for burner observation port

Environmental:

• Operating temperature: -40℃ ~ +85℃

• Ambient humidity: 0~90% non-condensing

• Certification: UL, FM approved

• Weight: Approx 0.35kg

System compatibility

UV90-9 belongs to Fireye UV90 flame scanner family. Compatible with Fireye YB110UV, ZB110UV non-self-check UV amplifier burner chassis. Matches YP series programmer modules, BLV512 / BLL510 display units. Widely used for gas and light oil boiler and furnace burners. Widely used for combustion safety system spare replacement.

Function

UV90-9 is non self-check ultraviolet flame scanner manufactured by Fireye. It captures ultraviolet flicker radiation from combustion flame and converts flame signal and transmits to burner control chassis. This model has no internal sensor self-test circuit. When flame extinguishes, scanner stops sending flame signal, burner chassis triggers safety lockout and cuts fuel supply to eliminate explosion hazard. It supports front or 90° lateral installation for difficult sighting positions. The 108-inch pre-wired shielded cable simplifies field wiring work. Widely deployed for industrial boiler and furnace burner flame monitoring and spare replacement.

Installation

Follow lockout/tagout safety procedure before installation. Install UV90-9 with supplied snug-fit mounting block on burner sight port, align optical window toward flame. Keep quartz window clean. Route integrated shielded cable to non-self-check UV burner chassis, strictly follow Fireye wiring schematic. Power on and test flame signal strength during burner commissioning.

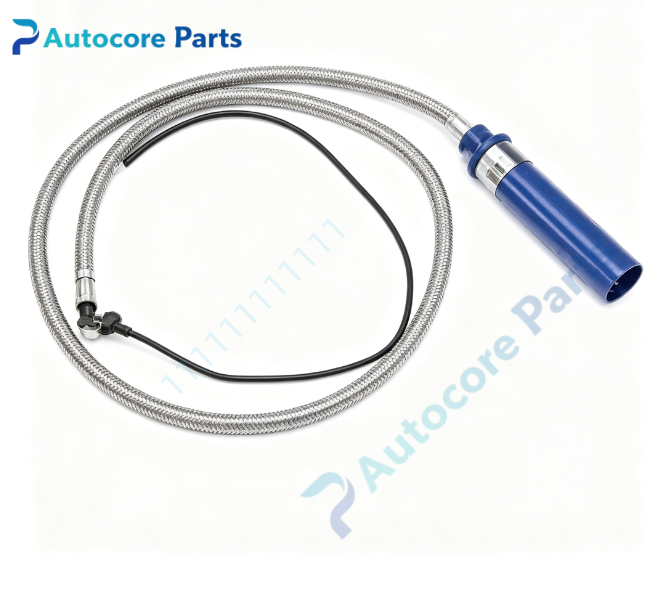

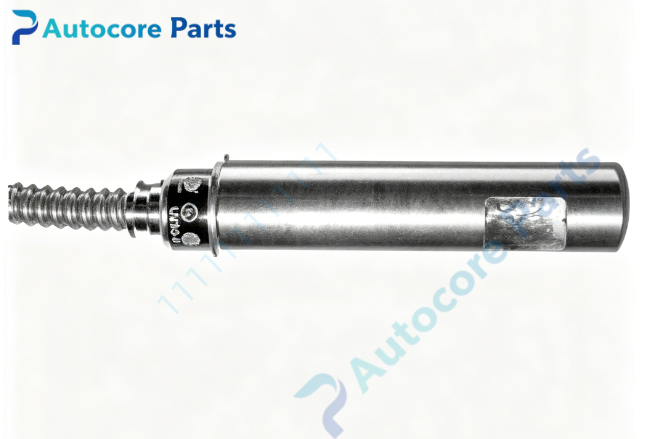

InterfaceQuartz viewing window,metal mounting block,108 inch integrated shielded signal cable,metal NEMA4X housing for Fireye UV90-9.

FeatureOriginal Fireye UV90-9 non self-check UV flame scanner,108 inch shielded cable,optional 90° side mounting,NEMA4X enclosure,UL & FM safety certified. This spare unit is used for industrial boiler burner flame detection maintenance and hardware replacement.

DiagnosticNo flame signal: Inspect quartz window soot contamination,optical alignment,cable continuity. No scanner self-diagnosis: This model is non-self-check UV scanner, no built-in sensor health test. Intermittent flame signal: Check cable vibration, loose wiring or dirty viewing window. False flame signal: Eliminate nearby UV interference source.

Product BriefUV90-9 is Fireye non-self-check UV flame scanner with 108 inch shielded cable, supports front or 90° lateral mounting, works with non-self-check UV BurnerLogix chassis,classic spare for industrial furnace combustion control system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
