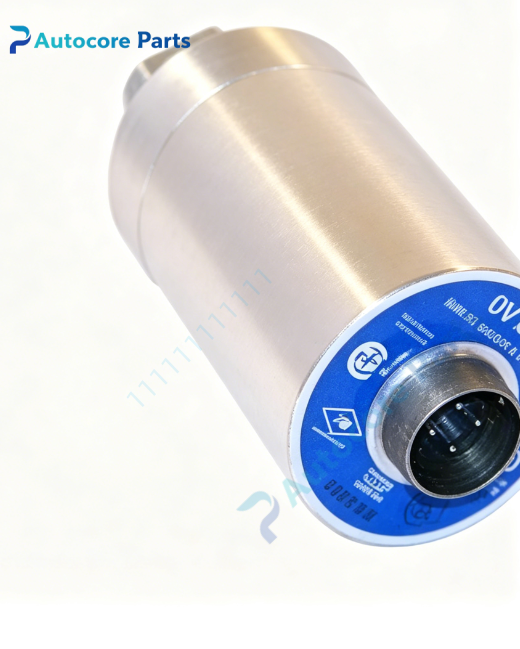

Fireye UV7SC Self-Check UV Flame Scanner

Technical SpecificationsModel：UV7SC Brand：Fireye Product Type: Self-checking ultraviolet flame scanner for industrial burner flame detection

Detection Feature:

• Detection spectrum: Ultraviolet UV band

• Self-check mechanism: Built-in mechanical shutter, automatic self-test every 10 seconds

• Flame target: Gas, light oil industrial burner flame

• Operating principle: Capture UV flicker radiation generated by combustion flame

• Shutter function: Verify sensor circuit health, prevent false flame signal caused by tube failure

Electrical Parameters:

• Supply voltage:120VAC, +10/-15%, 60Hz

• Supply current:0.04A

• Output:10V frequency modulated square wave signal

• Required cable: Dual pair individually shielded #18AWG instrument cable, mating connector 59-504-010

Mechanical & Structure:

• Housing: Machined 6061 aluminum alloy, clear anodized finish

• Dimension: 197mm length, 83mm diameter

• Sight tube port: 1 inch NPT pipe thread

• Purge air port: 3/8 inch pipe thread, max 10psi, 5cfm airflow

• Window: Fused silica quartz lens

Environmental:

• Case operating temperature: -20℃ ~ +60℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 1.4kg

System compatibilityUV7SC belongs to Fireye UV flame scanner family. Compatible with Fireye MBSERIES multi-burner, SBSERIES single burner controllers, MBPF-100S and MB-600PF flame sensing modules. Widely used for gas,oil boiler and furnace burners combustion safety spare replacement.

FunctionUV7SC is self-check ultraviolet flame scanner manufactured by Fireye. It detects ultraviolet flicker radiation from combustion flame and transmits frequency-modulated flame signal to matched flame safeguard controller. The internal mechanical shutter executes automatic self-test every 10 seconds to validate scanner circuit performance. If sensor fault or runaway signal detected, it interrupts output and triggers safety lockout to avoid false flame indication. Purge air interface keeps quartz window clean from soot contamination. When flame extinguishes, flame signal disappears, burner system will shut off fuel supply for explosion protection. Widely deployed for industrial boiler and furnace flame continuous monitoring and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount UV7SC on burner sight port via 1" NPT thread. Connect purge air piping to 3/8" port, set airflow and pressure within rated range. Run specified shielded instrument cable between scanner and matched Fireye controller, install mating connector 59-504-010. Power on, execute self-check test and flame signal calibration during burner commissioning.

InterfaceFused silica quartz viewing window,1"NPT sight thread,3/8" purge air port,multi-pin signal connector,aluminum alloy housing for Fireye UV7SC.

FeatureOriginal Fireye UV7SC self-check UV flame scanner,10s mechanical shutter auto-diagnosis,1 inch NPT mounting,with purge air inlet,UL & FM safety certified. This spare unit is used for industrial boiler burner flame detection maintenance and hardware replacement.

DiagnosticSelf-check fault: Inspect shutter mechanical operation, quartz window contamination, cable wiring and connector contact. No flame signal: Verify optical alignment, purge air supply, check cable continuity. Intermittent flame signal: Check soot accumulation on lens, vibration and shielding cable integrity. False flame alarm: Eliminate external UV interference source near burner sight port.

Product BriefUV7SC is Fireye mechanical shutter self-check UV flame scanner,equipped with 1"NPT sight port and purge air interface,works with MBSERIES/SBSERIES burner safety controllers,classic spare for industrial furnace combustion control system.
