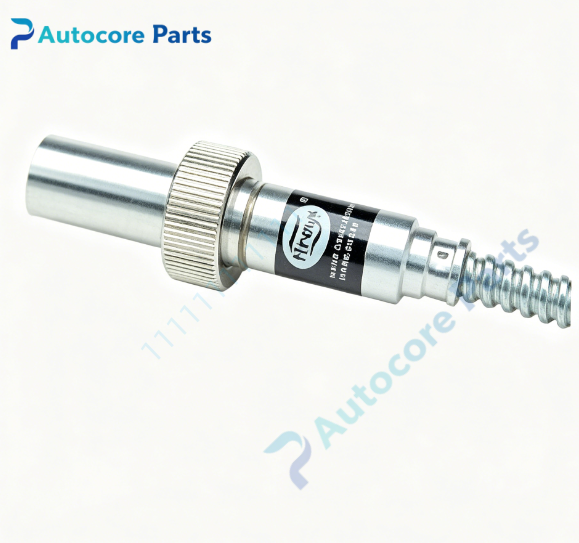

Fireye UV7A4W UV Flame Scanner

Technical Specifications

Model：UV7A4W Brand：Fireye Product Type: Non self-checking ultraviolet flame scanner for industrial cycling burners

Detection Feature:

• Detection spectrum: Ultraviolet UV band

• Self-check function: No built-in sensor self-test, designed for frequently cycling burners

• Flame target: Gas, light oil industrial burner flame

• Operating principle: Capture UV flicker radiation generated by combustion flame

• System safety check: Scanner circuit verified automatically at start and end of each burner cycle

Electrical Parameters:

• Supply voltage: 425VDC ±25VDC

• Discharge current: 0.3mA

• Cable assembly: 4ft (122cm) flexible conduit integrated wiring

• Max total wiring length: 76m (250ft)

• Output: UV flame flicker signal to matched MBPF flame amplifier module

Mechanical & Structure:

• Housing: NEMA4 rated metal enclosure

• Mount thread: 1/2" F.N.P.T insulated nylon coupling

• Window: UV-transparent fused silica lens

• Construction: Straight body design for burner sight port installation

Environmental:

• Operating temperature: -20℃ ~ +125℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 1.4kg

System compatibilityUV7A4W belongs to Fireye UV7 series flame scanner family. Compatible with Fireye MB series multi-burner controllers, SB series single burner controllers and MBPF flame sensing modules. For frequently cycled gas or oil boiler and furnace burners. Widely used for combustion safety spare replacement.

FunctionUV7A4W is non self-check ultraviolet flame scanner manufactured by Fireye. It detects ultraviolet flicker radiation from combustion flame and transmits flame signal to the matched flame safeguard amplifier. This model does not have continuous self-check function; the burner control system validates scanner health on every burner start and shutdown cycle. When flame extinguishes, flame signal disappears, the burner system cuts fuel supply to prevent explosion risk. NEMA4 housing provides good protection for humid and dusty field environments. The integrated 4ft flexible conduit simplifies wiring installation. Widely deployed for industrial boiler and furnace flame continuous monitoring and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount UV7A4W onto burner sight port through 1/2 inch FNPT insulated coupling, align quartz window toward flame. Keep viewing window clean from soot. Route the 4ft flexible conduit wiring to MBPF flame amplifier module, strictly follow Fireye wiring schematic. Execute burner cycling test and flame signal check during commissioning.

InterfaceFused silica quartz viewing window,1/2" FNPT insulated nylon coupling,4ft flexible conduit assembly,NEMA4 metal housing for Fireye UV7A4W.

FeatureOriginal Fireye UV7A4W non self-check UV flame scanner,NEMA4 enclosure,4 feet flexible conduit,straight body design,UL & FM safety certified. This spare unit is suitable for frequently cycling gas/oil burners,used for industrial boiler burner flame detection maintenance and hardware replacement.

DiagnosticNo flame signal: Inspect quartz window soot contamination,optical alignment,conduit cable continuity. No continuous self-test: This is non-self-check scanner,health verification only occurs on burner cycle. Intermittent flame signal: Check lens dirt, mechanical vibration and cable shielding integrity. False flame indication: Remove external UV interference source near burner sighting port.

Product BriefUV7A4W is Fireye NEMA4 non-self-check UV flame scanner with 4ft flexible conduit,straight 1/2" FNPT mounting,works with MB/SB burner controllers and MBPF modules,classic spare for industrial furnace combustion control system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
