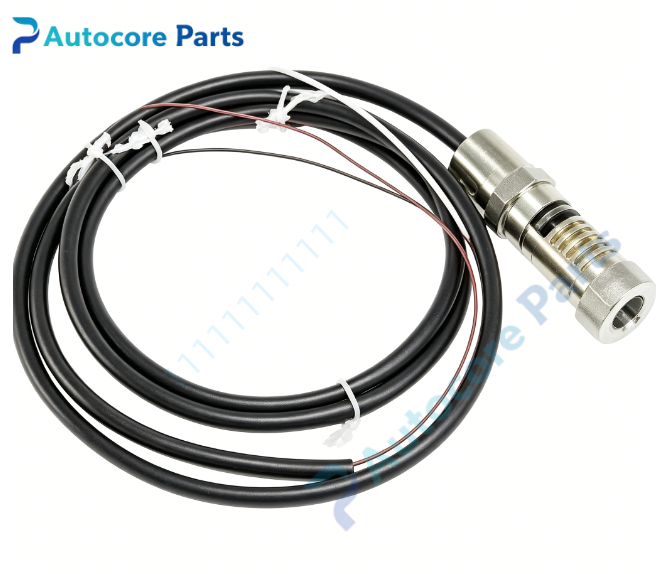

Fireye PXMS-300K Pressure Transmitter

Technical Specifications

Model：PXMS-300K Brand：Fireye Product Type: Piezoresistive pressure transmitter for combustion control system

Measurement Feature:

• Pressure range: 0 ~ 300 PSI (0 ~ 21 bar)

• Output signal: 4-20mA linear analog output

• Process connection: 1/2" NPT male thread

• Circuit type: Non self-check design

• Wetted material: 316L stainless steel, meets NACE MR01-75

Electrical Parameters:

• Supply voltage: 24VDC

• Signal output: 4-20mA corresponds to full pressure range

• Cable: Built-in integral signal cable

• Anti-interference: High EMI/RFI resistance, temperature compensated circuit

Mechanical & Structure:

• Sensing element: Silicon piezoresistive chip, oil-filled isolation diaphragm

• Housing: 316L stainless steel

• Structure: Compact integrated probe assembly

• Media compatibility: Steam, gas and compatible process fluid

Environmental:

• Operating temperature: -40℃ ~ +85℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 0.36kg

System compatibilityPXMS-300K belongs to Fireye PXMS-K pressure transmitter family. Compatible with Fireye NX6100, NX6300 Nexus integrated burner controllers. Applied on industrial steam boilers, process furnaces and dual-fuel combustion systems for steam pressure monitoring. Non self-check design, suitable for regularly cycled burner systems. Widely used as spare replacement for combustion control system.

FunctionPXMS-300K is pressure transmitter manufactured by Fireye for burner control systems. It uses piezoresistive sensing chip and stainless steel isolation diaphragm to detect steam pressure, converts pressure value into standard 4-20mA signal and transmits to Nexus series burner controller. Internal temperature compensation circuit minimizes reading drift under variable temperature. It provides real-time pressure feedback for fuel-air ratio regulation and boiler pressure interlock protection. Widely deployed for industrial boiler pressure monitoring and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount PXMS-300K on pressure tapping port via 1/2"NPT thread. Keep the sensor in proper orientation to avoid liquid condensate accumulation on diaphragm. Run signal cable to NX series controller terminals strictly follow Fireye wiring manual. Perform zero point calibration and pressure test after commissioning.

Interface1/2"NPT process thread,316L stainless steel sensing diaphragm,4-20mA signal cable,stainless steel transmitter housing for Fireye PXMS-300K.

FeatureOriginal Fireye PXMS-300K pressure transmitter,0-300PSI range,4-20mA output,316L stainless steel wetted parts,NACE compliant,UL & FM safety certified. This spare unit is used for industrial boiler steam pressure measurement,combustion control maintenance and hardware replacement.

DiagnosticNo output signal: Inspect 24VDC power supply,cable breakage and terminal connection. Inaccurate pressure reading: Perform zero calibration,check diaphragm clogging or media coating. Unstable signal: Check cable shielding, vibration influence and temperature fluctuation. Signal stuck at low value: Inspect diaphragm damage or overpressure impact.

Product BriefPXMS-300K is Fireye PXMS-K series 0~300PSI pressure transmitter with 4-20mA output,paired with NX6100/NX6300 burner controllers,classic spare for boiler steam pressure monitoring system.
