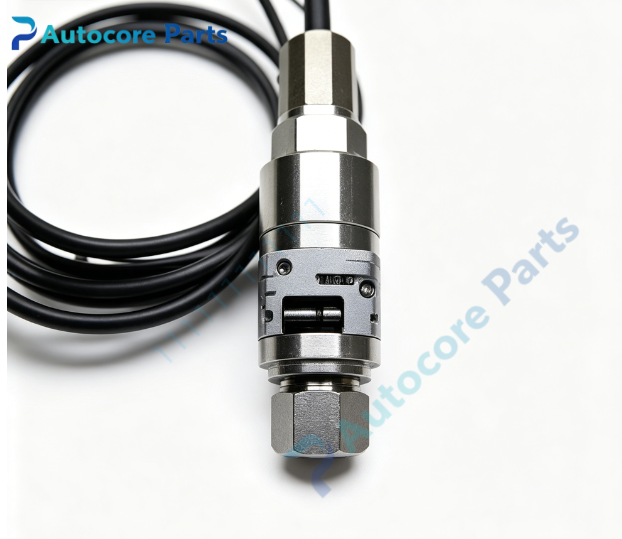

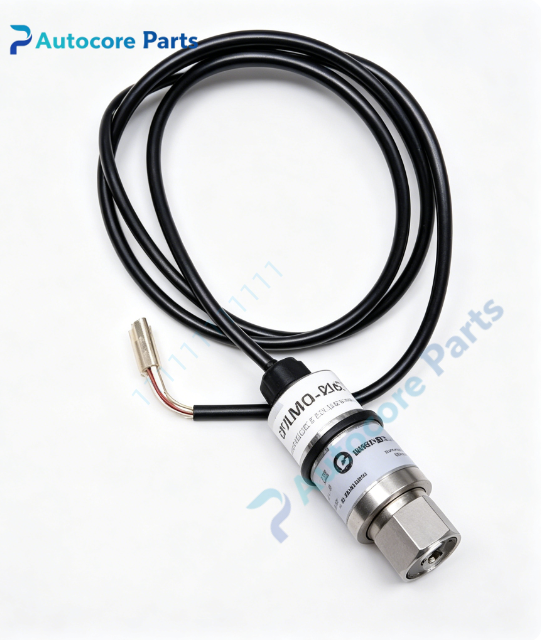

Fireye PXMS-300 Pressure Transmitter

Technical Specifications

Model：PXMS-300 Brand：Fireye Product Type: Piezoresistive pressure transmitter for combustion system

Measurement Feature:

• Pressure measuring range: 0 ~ 300 PSI (0 ~ 20.7 bar)

• Signal output: 4-20mA two-wire linear analog signal

• Process connection: 1/2" NPT male thread

• Wetted material: 316L stainless steel diaphragm

• Circuit type: Non self-check design

Electrical Parameters:

• Supply voltage: 24VDC

• Loop resistance: Max 850Ω

• Signal type: 2 wire current loop

• Temperature compensation: Built-in digital temperature compensation

Mechanical & Structure:

• Sensing element: Oil-isolated piezoresistive silicon chip

• Housing: Stainless steel compact enclosure

• Cable: Integral signal cable assembly

• Media: Compatible with steam, gas and non-corrosive fluid

Environmental:

• Operating temperature: -40℃ ~ +85℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 0.35kg

System compatibilityPXMS-300 belongs to Fireye PXMS pressure transmitter family. Compatible with Fireye NX6100, NX6300 Nexus integrated burner controllers. Designed for gas, oil and dual fuel industrial boilers and process furnaces. Non self-check type, applicable for periodically cycled burners. Widely used as spare replacement for combustion pressure measurement system.

FunctionPXMS-300 is pressure transmitter manufactured by Fireye for burner control. It detects medium pressure via stainless steel isolation diaphragm, converts pressure value into standard 4-20mA current signal and transmits to NX burner controller. Built-in temperature compensation reduces measurement drift under varying ambient temperature. It provides real-time pressure feedback for fuel-air ratio adjustment and boiler pressure interlock protection. Widely deployed for industrial boiler pressure monitoring and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Install PXMS-300 on pressure tapping port with 1/2"NPT thread. Maintain proper mounting angle to avoid condensate accumulating on sensing diaphragm. Run shielded two-wire cable to controller terminals strictly follow Fireye wiring schematic. Complete zero calibration and pressure test during commissioning.

Interface316L stainless steel sensing diaphragm,1/2"NPT process thread,two-core signal cable,stainless steel transmitter housing for Fireye PXMS-300.

FeatureOriginal Fireye PXMS-300 pressure transmitter,0~300PSI measuring range,4-20mA two-wire output,316L wetted parts,UL & FM safety certified. This spare unit is used for industrial boiler pressure measurement,combustion control maintenance and hardware replacement.

DiagnosticNo output signal: Inspect 24VDC power supply,wire breakage and terminal connection. Reading deviation: Perform zero calibration,check diaphragm contamination or clogging. Unstable signal: Check cable shielding,vibration and high temperature radiation influence. Signal locked at minimum value: Inspect diaphragm damage caused by overpressure.

Product BriefPXMS-300 is Fireye PXMS series 0~300PSI pressure transmitter with 4-20mA output,matched with NX6100/NX6300 burner controllers,classic spare for boiler combustion pressure monitoring system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
