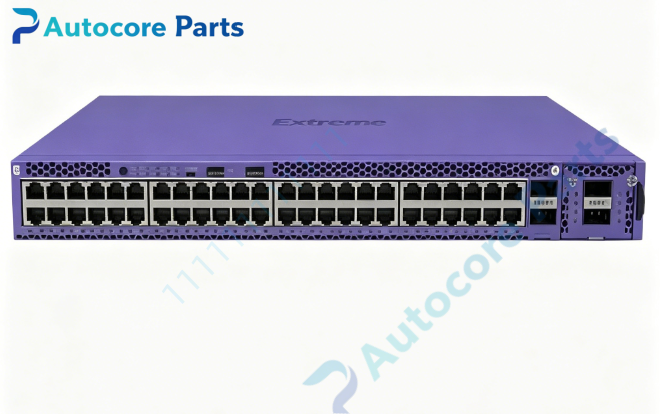

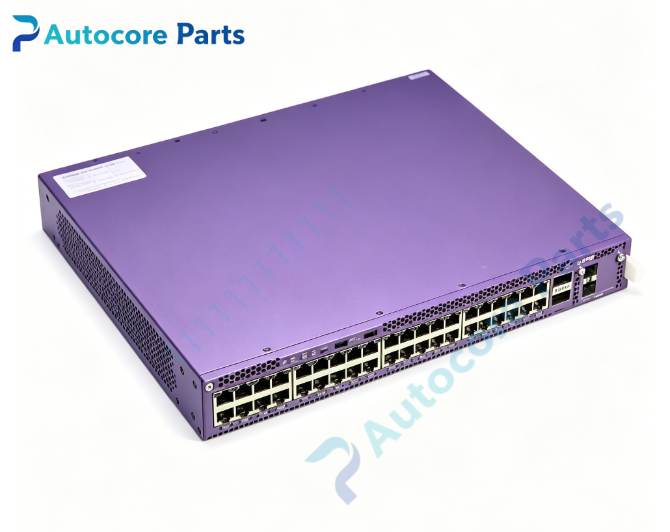

Extreme Networks X465-48P ExtremeSwitching Smart OmniEdge Switch

Technical SpecificationsModel：X465-48P Brand：Extreme Networks Product Type: 1U rack mount premium stackable enterprise Layer3 PoE+ access switch

Front Ports:

• 48 × 10/100/1000BASE-T RJ45 gigabit PoE+ ports (IEEE802.3at, 30W max per port), MACsec encryption capable

• 1 × VIM5 modular uplink slot, support 10G/25G/40G uplink modules

• 2 × dedicated 40G QSFP+ stacking ports

• 2 × USB-A ports for firmware upgrade

• 1 × Micro-B USB management port

• LED indicators for port speed, stack, power and fault status

Rear Panel Interfaces:

• 1 × RJ45 serial console port

• 1 × OOB 10/100/1000BASE-T management port

• 2 × hot-swappable PSU bays

• 3 × hot-swappable fan modules

Switching & Layer Features: Switch Fabric: 364 Gbps Forwarding Rate: 270.8 Mpps MAC Address Table: Up to 216K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLANs Routing: IPv4 / IPv6 static routing, OSPF, BGP, PIM multicast Security: 802.1X, MAC authentication, MACsec link encryption, ACL, storm-control, DoS protection QoS: Hardware L2-L4 classification, 8 priority queues per port Stacking: Up to 8 switches in one stack, 168G stacking bandwidth per unit Fabric: Native Extreme Fabric Connect support Management: ExtremeCloud IQ cloud management, SNMP, SSH, Web GUI, zero-touch provisioning

Power & Mechanical: Power Supply: Dual hot-swappable PSU bay, compatible with 1100W AC power module Max PoE Power Budget: 1746W Cooling: 3 hot-swappable fan modules Operating temperature：0℃ ~ +40℃ Weight: Approx 9.81 kg Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS

System compatibility

X465-48P belongs to X465 Smart OmniEdge premium series. Compatible with VIM5 uplink modules for 10G/25G/40G fiber uplink. Supports 40G QSFP+ stacking cables. Can stack with other X465 family switches. Integrates seamlessly with Extreme Fabric Connect and ExtremeCloud IQ cloud management platform. PoE ports supply power for Wi-Fi6 wireless APs, IP cameras and VOIP phones.

Function

X465-48P is high-performance 48-port PoE+ stackable gigabit access switch. 48 PoE+ copper ports deliver data and power to high-power wireless access points, surveillance cameras and voice terminals. VIM5 modular slot provides flexible high-speed uplink selection, supporting 10G,25G or 40G fiber to aggregation layer. Dedicated 40G stacking ports build high-bandwidth stack group, up to 8 units as single logical device. It supports MACsec port encryption for secure wired traffic. Hot-swappable redundant power supplies and fan trays ensure continuous operation for 24/7 campus network. Supports perpetual PoE and fast PoE function to keep powered devices active during switch reboot. Widely deployed for university campus, large office building and hospital high-density PoE access network.

InstallationFollow ESD protection procedure. Mount switch into standard 19-inch 1U rack. Install hot-swappable PSU and fan modules. Insert VIM5 uplink module and fiber transceivers as required. Deploy QSFP+ stacking cables for multi-unit stacking. Access console port for initial ExtremeXOS configuration, set VLAN, PoE profile, MACsec and security rules. Register device to ExtremeCloud IQ for remote management. Verify stack synchronization and port connectivity after power-up.

Interface48 PoE GE RJ45 ports,VIM5 uplink slot,2×40G QSFP+ stacking ports,2×USB-A,Micro-B USB, rear RJ45 console port,OOB management port,PSU and fan bays,LED indicators for Extreme Networks X465-48P.

FeatureOriginal Extreme Networks X465-48P X465 premium PoE+ switch,48×1G 30W PoE+ ports with MACsec,modular VIM5 uplink,40G dedicated stacking,hot swap PSU/fan,ExtremeXOS OS,support Fabric Connect and ExtremeCloud IQ. This spare switch is used for enterprise high-density PoE campus edge network maintenance and hardware replacement.

DiagnosticSwitch boot failure: Check PSU installation and AC power input, verify dual power redundancy status. PoE port no power: Check PoE budget, enable fast/perpetual PoE if needed, inspect cable and terminal compatibility. VIM5 uplink port link down: Confirm module and transceiver compatibility, clean fiber connector and check DDM optical readings. Stack split: Inspect 40G stacking cable, match ExtremeXOS firmware version of all stack members. MACsec negotiation failure: Verify encryption key and peer side MACsec configuration. Overheat alarm: Check fan tray running status and rack airflow.

Product BriefX465-48P is Extreme X465 Smart OmniEdge series 1U 48-port gigabit PoE+ stackable Layer3 switch with VIM5 modular uplink and 40G stacking ports,classic spare for enterprise high-density campus PoE wired access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
