Extreme Networks X460-G2-VIM-2ss SummitStack Interface Module

Technical SpecificationsModel:X460-G2-VIM-2ss Brand:Extreme Networks Product Type:Hot-pluggable rear VIM versatile interface stacking module Ports:2 × SummitStack CX4 stacking ports Stacking bandwidth:40G per port, total up to 80G stacking capacity Cable:CX4 copper stacking cable Compatibility:Only for X460-G2 series switches rear VIM slot Part number:16713 Weight:0.23kg Dimensions:3.55cm(H) ×8.6cm(W) ×13.9cm(D) Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing

System compatibilityX460-G2-VIM-2ss VIM module works exclusively with Extreme Networks X460-G2 series switches. It installs into the rear VIM expansion slot of X460-G2 to add dedicated SummitStack stacking ports. Up to 8 X460-G2 switches can be stacked together using this module and CX4 stacking cables.

FunctionX460-G2-VIM-2ss is an optional rear stacking expansion module for X460-G2 switches. It provides two CX4 SummitStack ports to build high-speed switch stacking fabric. Stacked units act as one single logical switch, sharing configuration, MAC address table and routing table. It monitors stacking link status and module temperature, and triggers fault alarms for stacking link down or module overheat. Widely used for large campus access switch stacking deployment.

InstallationPower off the X460-G2 switch. Insert VIM-2ss module into rear VIM slot and fasten screws. Connect CX4 stacking cables between modules of different switches. Power on the switch, verify module identification and stacking topology under ExtremeXOS. Confirm stack formation before commissioning.

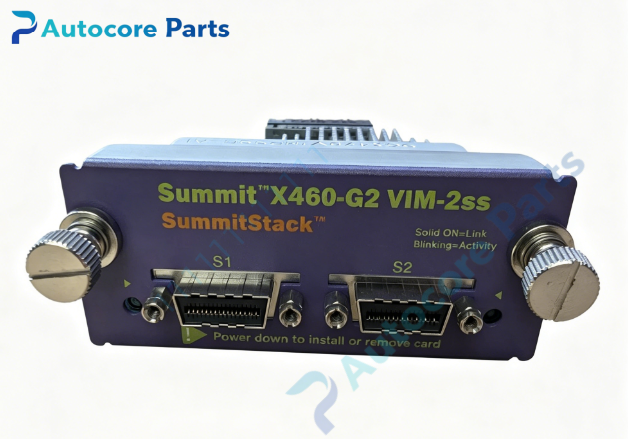

InterfaceCX4 copper stacking ports,module gold finger edge,status LEDs,locking screws for Extreme Networks X460-G2-VIM-2ss.

FeatureOriginal Extreme Networks X460-G2 VIM-2ss stacking module,dual CX4 SummitStack ports,hot pluggable,40G per port stacking bandwidth,supports up to 8 switches in one stack,simplifies campus access network management,built-in self-diagnostic function. This spare supports X460-G2 series high-speed stacking deployment.

DiagnosticModule not detected: check VIM slot seating,gold finger cleanliness and confirm X460-G2 firmware compatibility. Stacking link down: inspect CX4 cable integrity,port status and stacking configuration. Link unstable: check CX4 cable quality and cable length limit. Over-temperature alarm: check cabinet ventilation and module installation.

Product BriefX460-G2-VIM-2ss is Extreme Networks X460-G2 series rear VIM stacking module with dual CX4 SummitStack ports,classic spare part for building high-speed stacking of X460-G2 access switches.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
