Extreme Networks X460-G2-24t-24ht-10GE4 Gigabit Stackable Edge Switch

Technical Specifications

Model：X460-G2-24t-24ht-10GE4 (X460-G2-24T-24) Brand：Extreme Networks Product Type: 1U rack mount Layer2/L3 stackable gigabit enterprise edge and small aggregation switch

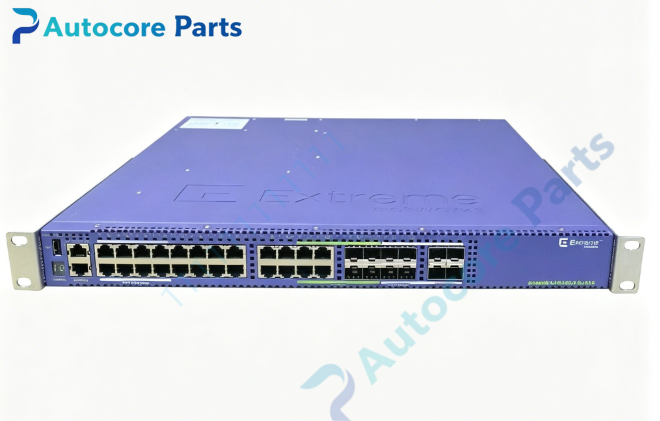

Front Ports:

• 24 × 10/100/1000BASE-T RJ45 auto-sensing copper ports

• 24 × 100/1000BASE-X SFP fiber slots

• 4 × 1G/10G SFP+ high-speed uplink slots for fiber or DAC cable

• 1 × USB 2.0 port for firmware upgrade

• 1 × RJ45 serial console port

• LED indicators for port link, activity, power and system fault alarm

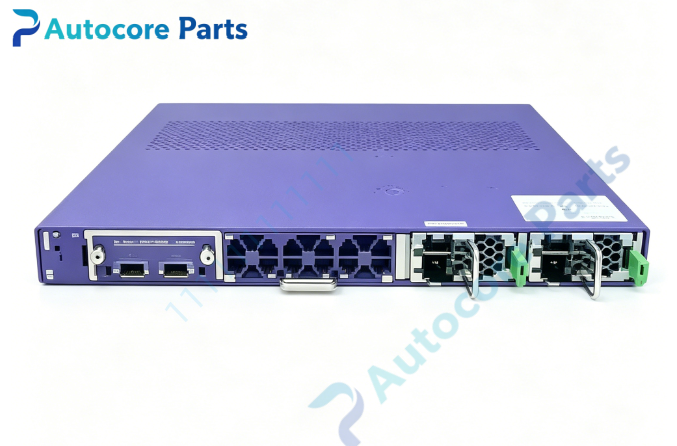

Rear Panel Interfaces:

• 1 × OOB 10/100/1000BASE-T out-of-band management port

• 1 × VIM versatile interface expansion slot

• 1 × timing clock module slot (PTP / SyncE precision timing)

• Dual hot-swappable PSU slots, AC/DC power module optional

• Hot-swappable fan tray, airflow direction optional front-to-back / back-to-front

Switching & Layer Features: Switch Fabric: 296 Gbps full duplex Forwarding Rate: 220.2 Mpps MAC Address Table: 128K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing Security: 802.1X, MAC authentication, storm control, bidirectional ACL QoS: Hardware L2-L4 classification, 8 priority queues Stacking: SummitStack-V, up to 8 switches stacked into single logical unit Management: ExtremeXOS OS, SNMP, SSH, Web GUI, ExtremeCloud IQ

Power & Mechanical: Power Supply: Dual hot-swappable 300W AC / DC PSU modules (sold separately) Cooling: Hot-swappable fan tray, reversible airflow Operating temperature：0℃ ~ +50℃ Dimension: 442mm × 44mm × 380mm Weight: Approx 5.86 kg Mounting: Standard 19-inch 1U rack bracket

System compatibility

X460-G2-24t-24ht-10GE4 belongs to Extreme X460-G2 enterprise edge switch family. Compatible with VIM series uplink modules such as VIM-4X10GE, Extreme certified SFP and SFP+ transceivers, DAC/AOC cables. Supports SummitStack-V stacking with other X460-G2 switches. Built-in PTP and SyncE timing, suitable for industrial, building aggregation and hybrid copper/fiber access network. Widely used for network upgrade and spare replacement.

Function

X460-G2-24t-24ht-10GE4 is high-density hybrid copper and fiber stackable gigabit switch manufactured by Extreme Networks. It provides 24 copper RJ45 ports for desktop terminal access and 24 SFP fiber ports for long-distance remote access. 4×10G SFP+ high-speed uplink ports connect to aggregation or core layer. SummitStack-V combines multiple physical switches as one logical device for simplified centralized management. The rear VIM slot supports extra high-speed interface expansion. Modular power and fan design support hot swap online maintenance to eliminate single point of failure. PTP timing function meets time-sensitive network requirements for industrial applications. Widely deployed for campus, factory and commercial building hybrid access network spare replacement.

Installation

Follow ESD protection procedure. Mount switch into standard 19-inch rack. Install matched AC/DC power supply and fan tray. Insert SFP / SFP+ transceivers or DAC/AOC cables. Use Cat5e/Cat6 copper cables for RJ45 terminals. Access serial console port for initial ExtremeXOS configuration, set VLAN, stacking, routing and QoS policy. Verify port connectivity status after power-up.

Interface

24×1G RJ45 ports,24×1G SFP slots,4×10G SFP+ uplink ports,USB port,serial console port,OOB management port,VIM expansion slot,timing clock slot,dual hot-swap PSU slots,hot-swap fan tray,status LED indicators for Extreme Networks X460-G2-24t-24ht-10GE4.

Feature

Original Extreme Networks X460-G2-24t-24ht-10GE4 hybrid fiber-copper edge switch,1U,24×1G copper +24×1G SFP +4×10G SFP+,VIM expansion,SummitStack-V stacking,ExtremeXOS OS,modular redundant power and fan,PTP/SyncE timing. This spare unit is used for enterprise hybrid copper/fiber access and small aggregation network maintenance and hardware replacement.

Diagnostic

Switch fails to boot: Check AC/DC power input and PSU installation. Copper port link down: Verify Cat5e/Cat6 cable quality, length and termination. SFP/SFP+ port negotiation failure: Check transceiver compatibility and optical end face cleanliness. Stack split fault: Check stacking cable and match ExtremeXOS firmware version. Temperature alarm: Inspect fan tray operation and rack air circulation.

Product BriefX460-G2-24t-24ht-10GE4 is Extreme Networks X460-G2 series 1U stackable hybrid gigabit switch with 24 copper ports,24 SFP fiber ports and quad 10G SFP+ uplink, VIM expansion and PTP timing,classic spare for enterprise mixed fiber-copper edge network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
