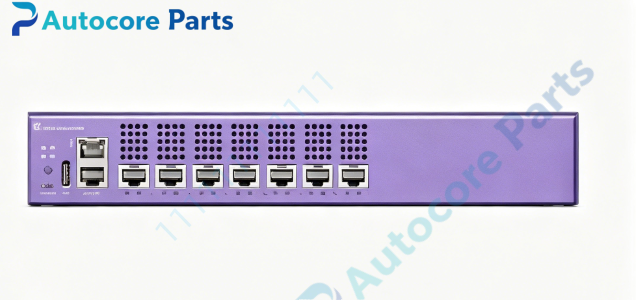

Extreme Networks 4220-8X Compact 10G SFP+ Ethernet Switch

Technical Specifications

Model：4220-8X Brand：Extreme Networks Product Type: Compact Layer2/L3 low latency data center switch

Front Ports:

• 8 × 10G SFP+ ports, compatible with optical transceivers and DAC/AOC cables

• 1 × RJ45 serial console port

• 1 × USB Type-A port for firmware upgrade

• LED indicators for port link, activity, power and fault alarm

Rear Panel Interfaces:

• 1 × OOB 10/100/1000BASE-T out-of-band management port

• Dual hot-swappable AC power supply slots

• Hot-swappable fan modules, front-to-back airflow

• Equipment grounding terminal

Switching & Layer Features: Switch Fabric: 160 Gbps full duplex non-blocking Forwarding Rate: 120 Mpps MAC Address Table: 64K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing Security: 802.1X, ACL, storm control QoS: Hardware L2-L4 classification, 8 priority queues OS: VOSS operating system

Power & Mechanical: Power Supply: Dual hot-swappable 100-240V AC PSU Cooling: Hot-swappable fans, front-to-back airflow Operating temperature：0℃ ~ +50℃ Form factor: Compact rackmount Weight: Approx 3.2 kg Mounting: 19-inch rack bracket included

System compatibility

4220-8X belongs to Extreme 4220 compact switch family. Compatible with Extreme certified SFP+ transceivers, DAC and AOC cables. VOSS OS supports fabric and stacking functions. Designed for server access, storage network and small aggregation. Widely used for low latency data center network spare replacement.

Function

4220-8X is compact low-latency 10G SFP+ switch manufactured by Extreme Networks. It offers eight 10G SFP+ interfaces for server or storage device connection. Dual redundant hot swap power supplies and hot swappable fans reduce downtime risk. VOSS operating system delivers advanced L3 routing, ACL and virtualization features. Small footprint saves rack space for server room edge deployment. Widely deployed for small data center, storage network and high-performance workgroup spare replacement.

Installation

Follow ESD protection procedure. Mount switch into standard 19-inch rack. Install SFP+ transceivers or DAC/AOC cables. Connect AC power cords. Access console port for initial VOSS configuration, set VLAN, routing and ACL policy. Verify port link status after power on.

Interface

8×10G SFP+ ports,USB Type-A,RJ45 console port,OOB management port,dual AC PSU slots,hot-swap fan modules,system LED indicators for Extreme Networks 4220-8X.

Feature

Original Extreme Networks 4220-8X compact data center switch,8×10G SFP+ ports,non-blocking low latency,dual hot-swappable AC power,front-to-back airflow,VOSS OS. This spare unit is used for small datacenter server access and storage network maintenance and hardware replacement.

Diagnostic

Switch fails to boot: Check AC power input and PSU installation status. Optical port link down: Verify SFP+ transceiver compatibility, optical power and fiber cleanliness. Packet loss: Inspect cable quality, connector end face and port speed negotiation. Temperature alarm: Check fan modules running status and rack air circulation.

Product Brief4220-8X is Extreme Networks 4220 series compact low latency 10G SFP+ switch with 8 ports, redundant AC power and VOSS OS,classic spare for small datacenter server and storage access network.
