Extreme Networks X450-G2-48T-GE (X450-G2-48t-GE4) Gigabit Stackable Switch

Technical Specifications

Model：X450-G2-48T-GE (X450-G2-48t-GE4) Brand：Extreme Networks Product Type: 1U rack mount Layer2/L3 stackable gigabit enterprise switch (X450-G2 series)

Front Ports:

• 48 × 10/100/1000BASE-T auto-sensing RJ45 copper ports

• 4 × 1000BASE-X SFP uplink slots for gigabit fiber transceivers

• 1 × USB2.0 port for firmware upgrade and configuration backup

• 1 × 10/100/1000BASE-T OOB out-of-band management port

• RJ45 serial console port for local CLI management

• LED indicators for port link, activity, stack, power and fault alarm

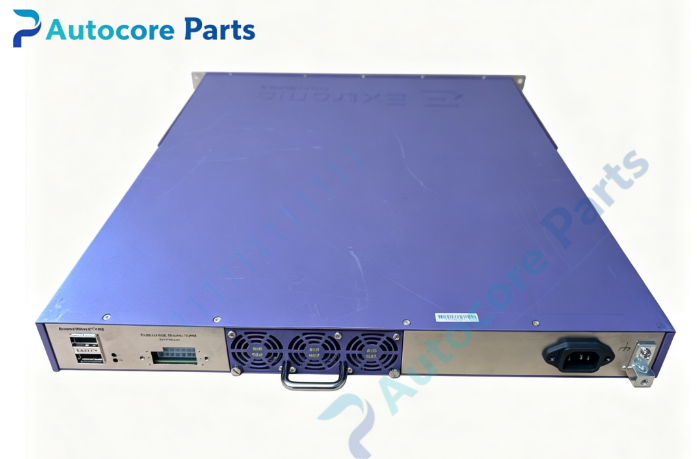

Rear Panel Interfaces:

• 2 × dedicated QSFP 21G stacking ports for SummitStack-V stacking

• Built-in fixed AC power supply, RPS redundant power connector

• Hot swappable fan tray

• Equipment grounding terminal

Switching & Layer Features: Switch Fabric: Non-blocking wire-speed switching fabric Forwarding Rate: Wire-speed forwarding MAC Address Table: 128K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static routing, RIP, OSPF Security: 802.1X port authentication, ACL, broadcast storm control, role-based policy QoS: Hardware L2-L4 traffic classification, multiple priority queues Stacking: SummitStack-V, max 8 units stacked together OS: ExtremeXOS modular operating system

Power & Mechanical: Power Supply: Built-in 100-240V AC fixed power, support external RPS Cooling: Hot-swappable fan tray, front-to-back airflow Operating temperature：0℃ ~ +40℃ Dimension: 44mm(H) ×442mm(W) ×488mm(D) Weight: Approx 6.45 kg Mounting: Standard 19-inch 1U rack mounting brackets

System compatibility

X450-G2-48T-GE belongs to Extreme X450-G2 switch family. Compatible with other X450-G2 series switches for stacking. Works with Extreme certified 1G SFP optical transceivers, DAC and AOC cables. Suitable for enterprise campus access and small aggregation layer deployment. Widely used for LAN upgrade and spare replacement.

Function

X450-G2-48T-GE is high-performance 48-port gigabit switch manufactured by Extreme Networks. 48 gigabit copper ports connect desktop terminals, IP phones and wireless access points. Four SFP gigabit fiber uplink slots provide stable long-distance connection to core/aggregation switches. Two rear 21G stacking ports combine multiple X450-G2 switches into a single logical device for unified management. ExtremeXOS provides complete L2 switching, rich L3 routing, identity authentication and security policy control. Widely deployed for enterprise campus network spare replacement.

Installation

Follow ESD protection procedure. Mount switch into standard 19-inch rack. Insert 1G SFP transceivers and fiber patch cables. Connect AC power cord. Access console port for initial ExtremeXOS configuration, VLAN, ACL and stacking setup. Verify port link and stack status after power-up.

Interface

48×1G RJ45 ports,4×1G SFP uplink slots,USB port,OOB management port,serial console port,2×QSFP stacking ports,RPS connector,status LED indicators for Extreme Networks X450-G2-48T-GE.

Feature

Original Extreme Networks X450-G2-48T-GE X450-G2 1U gigabit switch,48×1G copper ports,4×1G SFP uplink,21G dedicated stacking ports,ExtremeXOS OS,hot swappable fan tray. This spare unit is used for enterprise campus access and aggregation layer network maintenance and hardware replacement.

Diagnostic

Switch fails to boot: Check AC power cord and redundant power supply connection. Copper port no link: Verify network cable quality and RJ45 termination. SFP uplink down: Check SFP module compatibility, fiber cable and connector cleanliness. Stack split fault: Confirm stacking cable integrity and matched ExtremeXOS firmware version. High temperature alarm: Inspect fan tray working status and rack ventilation.

Product BriefX450-G2-48T-GE is Extreme Networks X450-G2 series 1U stackable gigabit switch with 48 copper gigabit ports and four 1G SFP uplink ports,classic spare for enterprise campus LAN access and aggregation networking.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
