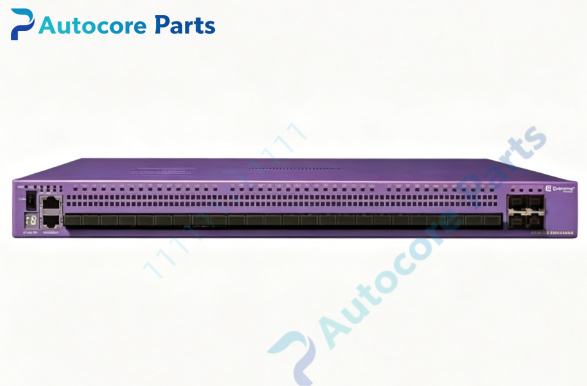

Extreme Networks X440-G2-24fx-G X440-G2 Fiber Edge Switch

Technical Specifications

Model：X440-G2-24fx-G Brand：Extreme Networks Product Type: 1U rack mount Layer2/L3 fiber access switch (X440-G2 extended temperature series, non-stacking)

Front Ports:

• 24 × 100BASE-FX SFP fiber ports for edge fiber connection

• 4 × 1000BASE-X SFP uplink slots

• RJ45 serial console port for local CLI configuration

• USB 2.0 port for firmware upload and configuration backup

• 1×10/100/1000BASE-T OOB management RJ45 port

• LED indicators for port link, activity, power and fault alarm

Rear Panel Interfaces:

• Built-in 100-240V AC power supply

• Redundant power input connector

• Equipment grounding terminal

Switching & Layer Features: Switch Fabric: Non-blocking wire-speed switching fabric Forwarding Rate: Wire-speed forwarding MAC Address Table: 16K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 static routing, RIP Security: 802.1X port authentication, ACL, broadcast storm control QoS: Hardware L2-L4 classification, multiple priority queues Stacking: Not supported on this 24fx extended temperature variant OS: ExtremeXOS operating system, minimum v21.1.1

Power & Mechanical: Power Supply: Built-in 100-240V AC power, support external redundant power Cooling: Integrated fixed fan assembly Operating temperature：0℃ ~ +60℃ (wide temperature range) Dimension: Standard 19-inch 1U rack form factor Weight: Approx 4.5 kg Mounting: 19-inch rack mounting brackets included

System compatibility

X440-G2-24fx-G belongs to Extreme X440-G2 extended temperature fiber switch family. Compatible with Extreme 100BASE-FX and 1G SFP transceivers. Designed for industrial environment, outdoor cabinet, harsh-condition campus fiber access. This model does not support SummitStack stacking. Widely used for long-distance fiber edge network and spare replacement.

Function

X440-G2-24fx-G is 24-port 100BASE-FX fiber edge switch manufactured by Extreme Networks. 24 fiber ports connect remote building endpoints over multi-mode fiber. Four SFP gigabit uplink ports provide fiber connection to aggregation layer. It features wide operating temperature from 0 to 60°C, suitable for uncontrolled temperature cabinet environments. ExtremeXOS delivers complete L2 switching and basic L3 routing functions. Widely deployed for industrial park, remote campus fiber access network spare replacement.

Installation

Follow ESD protection procedure. Mount switch into standard 19-inch rack. Insert 100BASE-FX and 1G SFP transceivers and fiber cables. Connect AC power cord. Access console port for initial ExtremeXOS configuration, VLAN and ACL setup. Verify port link status after power-up.

Interface

24×100BASE-FX SFP ports,4×1G SFP uplink slots,USB port,serial console port,OOB management port,RPS connector,status LED indicators for Extreme Networks X440-G2-24fx-G.

Feature

Original Extreme Networks X440-G2-24fx-G X440-G2 wide-temperature fiber access switch,24×100BASE-FX ports,4×1G SFP uplink,0~60°C operating range,ExtremeXOS,non-stackable. This spare unit is used for industrial and remote campus fiber edge network maintenance and hardware replacement.

Diagnostic

Switch fails to boot: Check AC power cord and RPS connection. Fiber port no link: Verify SFP transceiver compatibility, fiber cable quality and connector cleanliness. High temperature alarm: Check fan operation and cabinet ventilation, confirm ambient temp within 0~60°C. Cannot access CLI: Check console cable wiring and terminal baud rate setting. Uplink port negotiation failure: Confirm SFP module matches port speed standard.

Product BriefX440-G2-24fx-G is Extreme Networks X440-G2 series 1U wide-temperature fiber access switch with 24×100BASE-FX ports and four SFP gigabit uplink ports,classic spare for harsh environment fiber edge networking.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
