Extreme Networks Summit X650 Ethernet Switch

Technical SpecificationsModel: SUMMIT X650 Brand: Extreme Networks Product Type: 1U Layer2 / Layer3 Top-of-Rack Managed Ethernet Switch Mounting: 19-inch rack mount Operating temperature: 0℃ ~ +40℃ Storage temperature: -40℃ ~ +85℃ Relative humidity:20%~95%, non-condensing Ports variants:

• X650-24t: 24×10GBASE-T RJ45 copper ports

• X650-24x: 24×SFP+ slots (1G /10G fiber)

• 1 × VIM1 versatile interface expansion slot

• 1 × RJ45 console port

• 1 × 10/100/1000M out-of-band management port Switching capacity: 256 Gbps Forwarding rate: 363 Mpps Power supply: Dual 850W AC/DC hot-swappable PSU slots Fans: Hot-swappable fan tray Weight: 5.8 kg

System compatibilitySummit X650 runs ExtremeXOS operating system. It supports SummitStack stacking, up to 8 units stacked as one logical switch. Compatible with Extreme X440, X670, VSP series. Supports SFP+ optical transceivers and VIM1 uplink/stacking modules. Widely used for data center top-of-rack server access and aggregation network maintenance and spare replacement.

FunctionSummit X650 is high-performance top-of-rack switch for data center server access. It performs Layer2 switching, Layer3 IPv4/IPv6 routing, VLAN, STP/RSTP, link aggregation, ACL and QoS. It supports hardware-based 10G packet forwarding and stacking for port scaling. It monitors port link status, transceiver optical power, fan speed, temperature and power supply status, triggers alarm for port down, over-temperature, power failure and optical signal loss. It is used to replace failed ToR switches in virtualized data center networks.

InstallationPower off before installation. Mount the switch into standard 19-inch rack. Install SFP+ transceivers and VIM1 module into slots. Connect fiber/copper cables, power cords, console and management port. Boot ExtremeXOS, configure VLAN, routing and stacking parameters. Verify port status and network traffic before putting into production.

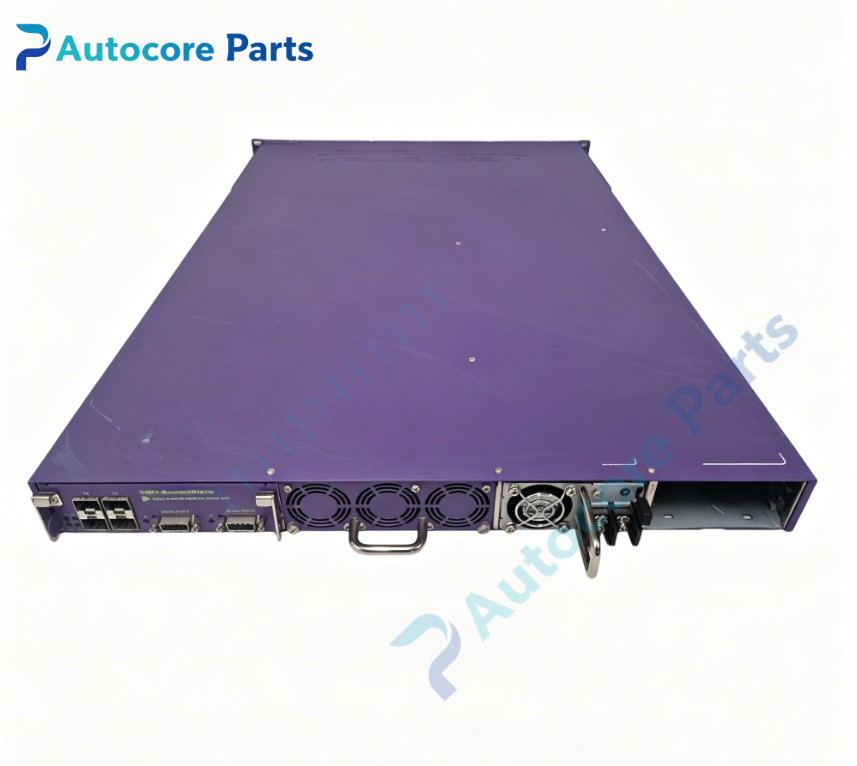

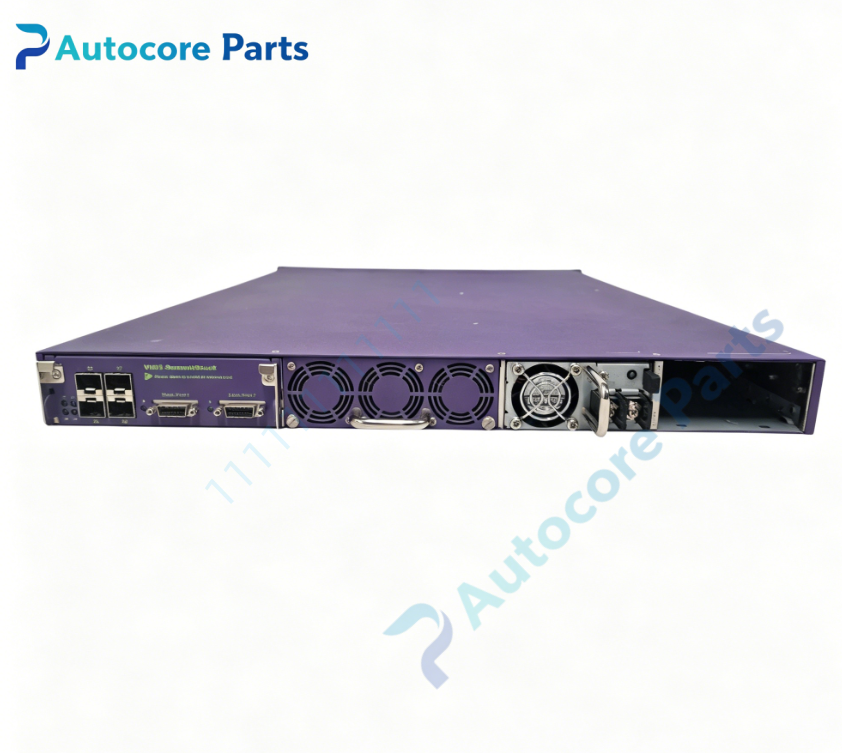

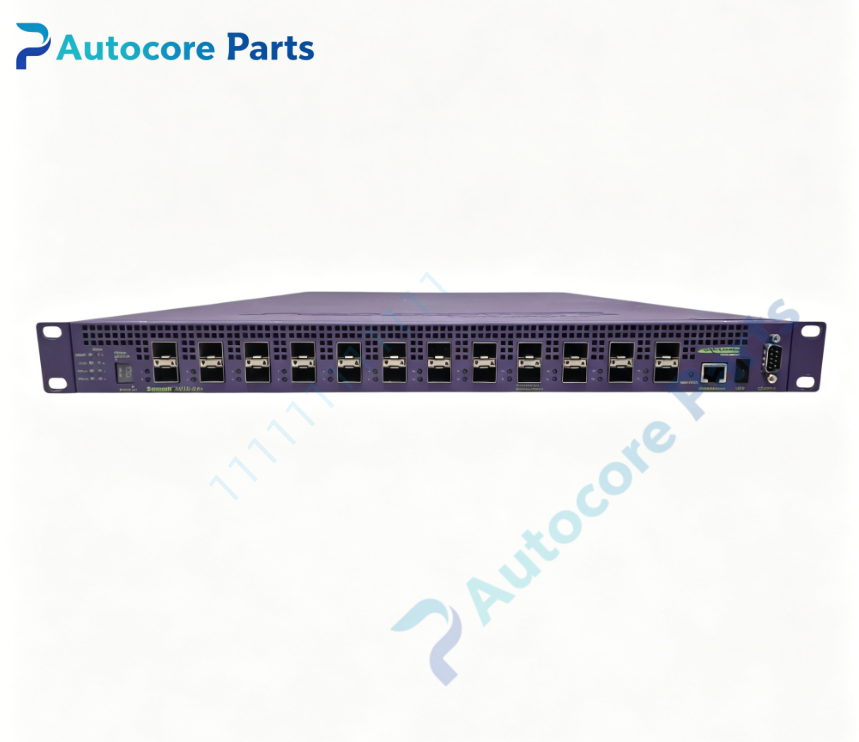

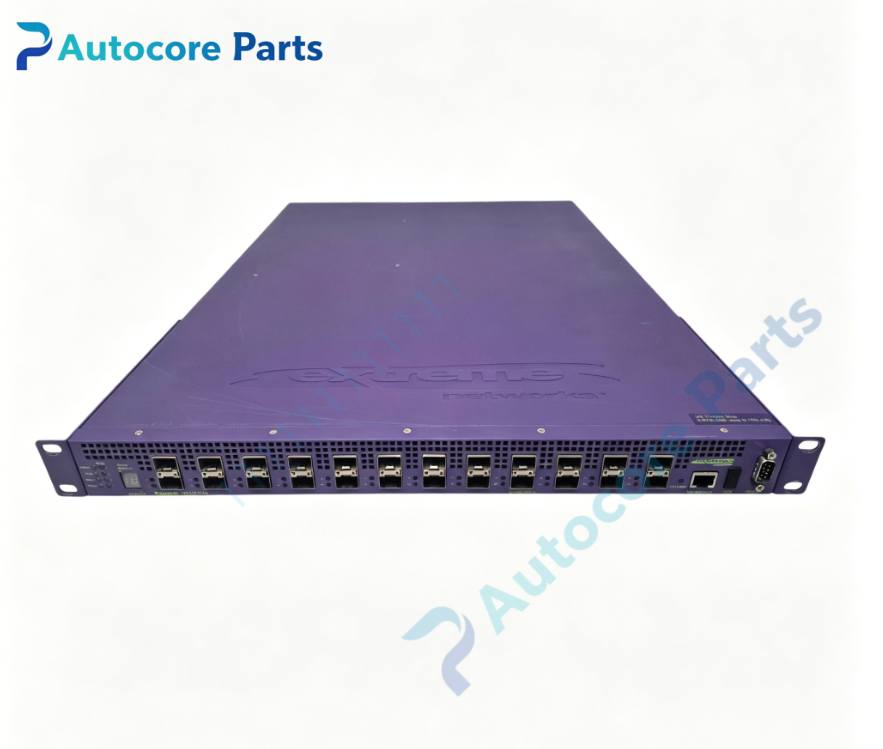

Interface24×10G ports (RJ45 or SFP+), VIM1 expansion slot, RJ45 console port, 1G management port, dual power inlets, fan vents, LED status indicators for Extreme Networks Summit X650.

FeatureOriginal Extreme Networks Summit X650 switch, ExtremeXOS modular OS, 1U compact rack design, non-blocking 10G forwarding, SummitStack stacking capability, redundant power and fan support, rich security and traffic control functions, built-in self-diagnostic function. This spare supports virtualized data center and enterprise core network maintenance.

DiagnosticNo power LED: check AC/DC input power and dual power supply modules. Port link down: verify SFP+ transceiver, fiber/copper cable, optical power and port administrative status. Stacking failure: check VIM1 stacking module, stacking cables and stacking configuration. Over-temperature alarm: check fan tray operation and cabinet airflow blockage.

Product BriefSummit X650 is Extreme Networks 1U 10G top-of-rack switch with 24×10G ports and VIM1 expansion slot, running ExtremeXOS, supports stacking and Layer3 routing, classic spare part for data center server access network overhaul.
