Extreme Networks STK-RPS-1005PS Redundant Power Supply Unit

Technical Specifications

Model：STK-RPS-1005PS Brand：Extreme Networks Product Type: External redundant power supply (RPS) for stackable PoE switches

Front Panel:

• Status LED indicators: AC OK, power and fault alarm

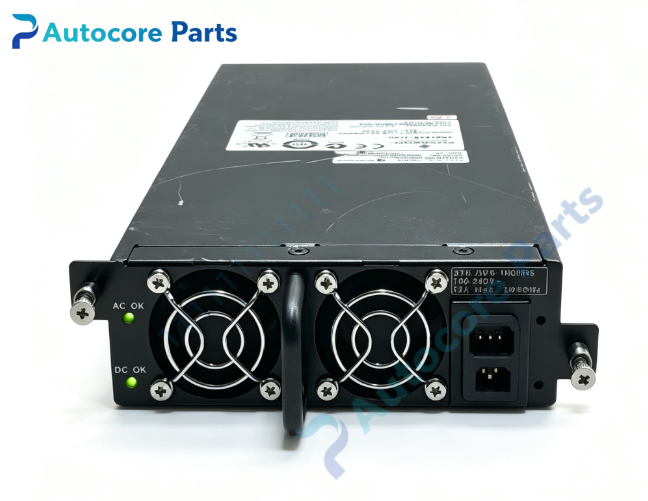

• Built-in cooling fan module

• Captive mounting screws

Rear Panel Interfaces:

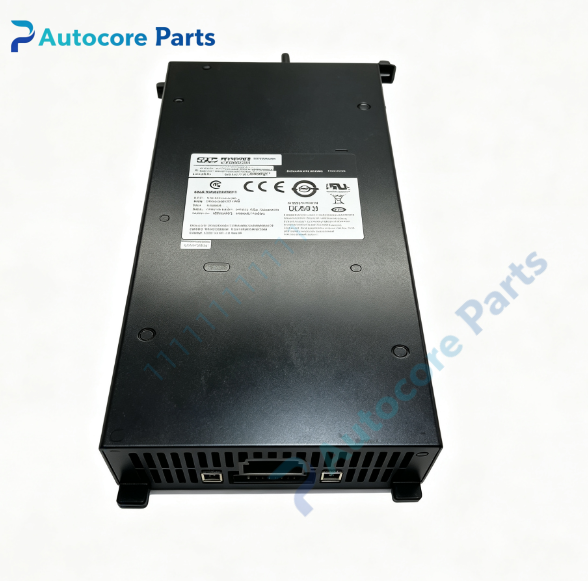

• 18-pin dedicated RPS output connector (supplied with RPS cable)

• AC power input connector

• Equipment grounding terminal

Electrical Parameters:

• AC Input: 115-230VAC,50/60Hz

• Max Total Output Power:1005W (180W system power +740W PoE power)

• DC Output: -55VDC /15A for PoE; +12VDC /15A for switch system

• PoE Standard: IEEE802.3at PoE+

Mechanical & Environmental:

• Dimension: 43mm(H) ×154mm(W) ×340mm(D)

• Weight: 2.1kg

• Operating temperature：0℃ ~ +50℃

• Mounting: Flat surface placement or install into 19-inch rack shelf STK-RPS-1005CH3

System compatibility

STK-RPS-1005PS belongs to Extreme STK external redundant power family. It works with Extreme stackable PoE switches supporting RPS interface such as X460-G2 PoE models. It can provide load sharing, power backup or extra PoE budget for connected switch. Widely used for enterprise PoE access network power redundancy upgrade and spare replacement.

Function

STK-RPS-1005PS is an external redundant power supply designed for Extreme stackable PoE switches. When the switch internal PSU fails, this unit takes over power supply to keep switch and PoE powered devices running. It also can add extra PoE power budget to the switch for connecting more Wi-Fi AP, IP cameras. It adopts dedicated RPS cable connection. This unit is not hot-plug; power off both RPS and switch before wiring. Widely deployed for campus, smart building PoE access power backup.

Installation

Follow ESD protection procedure. Power off the switch and STK-RPS-1005PS before cabling. Connect the matched RPS cable between RPS unit and switch RPS port. Plug AC cords to RPS and switch. Power on RPS first, then power on switch. Check AC OK LED light to confirm normal input. Verify switch power and PoE status after startup.

Interface

18-pin RPS output port,AC input port,ground terminal,status LED indicators,built-in cooling fan for Extreme Networks STK-RPS-1005PS.

Feature

Original Extreme Networks STK-RPS-1005PS external redundant PoE power supply,max 1005W total output,740W PoE power reserve,supports power backup and additive PoE capacity,rack shelf mount optional. This spare unit is used for enterprise PoE stack switch power redundancy maintenance and hardware replacement.

Diagnostic

No AC OK LED: Check AC power cord and wall outlet. No power output to switch: Verify RPS cable fully seated, confirm both devices powered off during wiring. Fan fault alarm: Check fan blockage and operating ambient temperature. Insufficient PoE budget: Recalculate total PD load, confirm RPS is correctly activated.

Product BriefSTK-RPS-1005PS is Extreme Networks external 1005W PoE redundant power supply, delivers backup and additional PoE power for stackable PoE switches,classic spare for enterprise PoE access power backup system.
