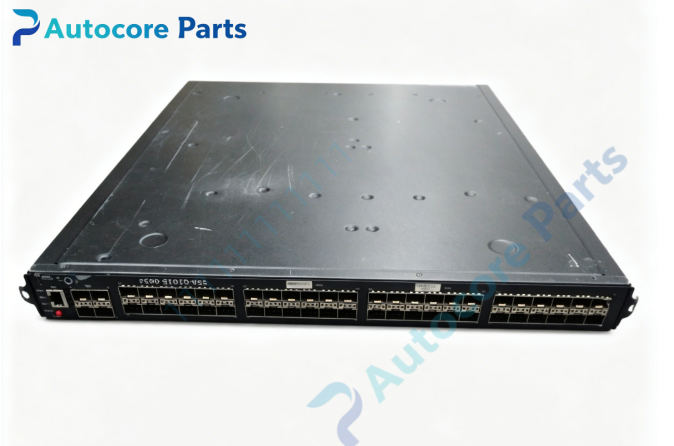

Extreme Networks SSA-G1018-0652 Gigabit Standalone Managed Switch

Technical SpecificationsModel:SSA-G1018-0652 Brand:Extreme Networks Product Type:1U rackmount S150 standalone fixed chassis Layer2/Layer3 managed switch Ports:48 × 1000BASE-X SFP gigabit slots,4 × 10GBASE-X SFP+ uplink slots Switching architecture:S150 distributed fabric forwarding Supported features:Layer2/Layer3 switching & routing,ACL,QoS,IPv4/IPv6,multicast,802.1X,MACsec OS:EOS (Enterasys Operating System) Management interfaces:Console COM port,Micro-USB debug port,out-of-band management port Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:5.0 kg

System compatibilitySSA-G1018-0652 belongs to Extreme Networks S-Series S150 SSA(Stand-Alone Switch) family, formerly Enterasys. Compatible with Extreme validated 1G SFP and 10G SFP+ transceivers including SR,LR,ER and DAC cables. It is a standalone variant of S150 chassis line card, no need to install into chassis. Widely used for enterprise campus and data center fiber aggregation spare replacement.

FunctionSSA-G1018-0652 is a high-density all-fiber standalone S150 managed switch. It provides 48 SFP gigabit ports for fiber access and long-distance inter-building connection, with 4×10G SFP+ high-speed uplink ports for core network interconnection. It supports wire-speed Layer2 switching,Layer3 routing,MACsec port encryption,VLAN segmentation,STP/RSTP/MSTP,LACP link aggregation,access control lists,quality of service and multicast traffic control. It monitors port link state,SFP/SFP+ DDM optical diagnostics,system temperature,power consumption and hardware faults, and sends fault alarms. Used for large enterprise campus and data center fiber aggregation networks.

InstallationMount the switch on standard 19-inch 1U rack. Connect AC power cord; redundant power supply optional. Install SFP/SFP+ transceivers and fiber/DAC cables. Connect console port for EOS configuration. Verify boot sequence,port optical link status and routing function before putting into production.

Interface48×1G SFP slots,4×10G SFP+ uplink slots,COM console port,Micro-USB debug port,out-of-band management port,system status LEDs,reset button,AC power inlet,rack mounting ears for Extreme Networks SSA-G1018-0652.

FeatureOriginal Extreme Networks S-Series S150 1U rackmount standalone all-fiber switch,48-port high density SFP gigabit access plus quad 10G SFP+ uplink,MACsec security encryption,DDM optical monitoring,wire-speed distributed fabric forwarding,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise and data center high-density fiber aggregation network deployment.

DiagnosticSwitch fails to boot: check AC power input and power module health. Fiber port link down: verify SFP/SFP+ transceiver, fiber/DAC cable type and port admin status. Optical low power alarm: inspect dirty fiber end faces or damaged cables. Transceiver no DDM data: confirm Extreme validated optical module. Over-temperature alarm: check fan operation and rack airflow, remove dust buildup.

Product BriefSSA-G1018-0652 is Extreme Networks S-Series S150 1U rackmount standalone Layer3 managed switch with 48×1G SFP and 4×10G SFP+ uplink ports,classic spare part for enterprise and data center fiber aggregation network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
