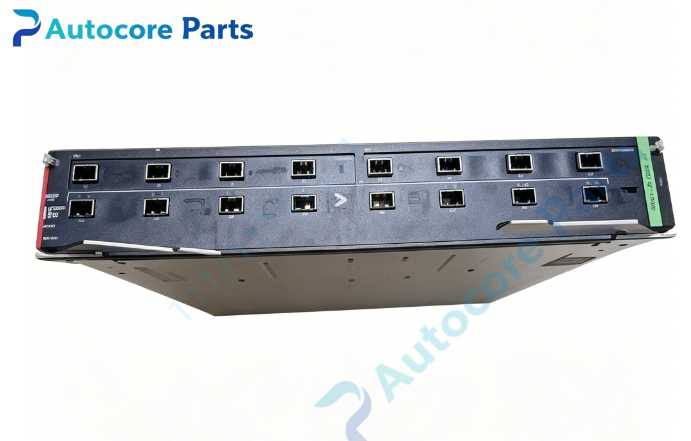

Extreme Networks SK8208-0808-F8 10G SFP+ Fabric I/O Line Card

Technical SpecificationsModel:SK8208-0808-F8 Brand:Extreme Networks Product Type:Hot-swappable S180 fabric I/O line card / blade Compatible chassis:S1A, S4, S6, S8 S-Series modular chassis Ports:8 × 10G SFP+ slots,2 × Type2 uplink expansion slots Architecture:S180 integrated fabric forwarding Minimum EOS:08.22.01.0022 Supported features:Layer2/Layer3 switching & routing, ACL, QoS, IPv4/IPv6, multicast, 802.1X, MACsec Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.72 kg

System compatibilitySK8208-0808-F8 belongs to Extreme Networks S-Series S180 fabric module family. It is equipped with dual Type2 expansion slots for optional high-speed uplink modules. Compatible with Extreme validated 10G SFP+ transceivers including SR, LR, ER and DAC twinax cables. Widely used for enterprise core interconnection and data center 10G uplink spare replacement.

FunctionSK8208-0808-F8 is an S180 high-performance fabric line card for S-series modular chassis switches. It provides 8×10G SFP+ high-speed fiber ports for core switching, inter-chassis uplink and server aggregation. It supports wire-speed Layer2 switching, Layer3 routing, MACsec port encryption, access control lists, quality of service and multicast traffic control. It monitors port link status, SFP+ DDM optical diagnostics, module temperature and power consumption, and sends hardware fault alarms to the chassis supervisor engine. Used for enterprise core network and data center high-speed 10G interconnection.

InstallationHot-swappable replacement. Insert SK8208-0808-F8 into empty I/O slot of S1A/S4/S6/S8 chassis. Tighten captive screws. Install 10G SFP+ transceivers and fiber/DAC cables. Mount Type2 uplink modules if required. Verify module online and port optical link status on EOS before putting into production.

Interface8×10G SFP+ ports,2×Type2 uplink expansion slots,module status LEDs,reset button,ejector latches for Extreme Networks SK8208-0808-F8.

FeatureOriginal Extreme Networks S-Series S180 hot-swappable 8-port 10G SFP+ fabric line card, integrated high-bandwidth fabric architecture, flexible Type2 uplink expansion, DDM optical monitoring, MACsec security encryption,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise core and data center 10G fiber network deployment.

DiagnosticModule not detected: check card seating,captive screws and backplane contact. Fiber port link down: verify SFP+ transceiver, fiber/DAC cable type and port admin status. Optical low power alarm: inspect dirty fiber end faces or damaged cables. Transceiver no DDM data: confirm Extreme validated SFP+ module. Uplink module failure: check Type2 module insertion and firmware compatibility. Over-temperature alarm: inspect chassis fan tray operation and airflow.

Product BriefSK8208-0808-F8 is Extreme Networks S-Series S180 hot-swappable 8-port 10G SFP+ fabric line card with dual Type2 uplink slots for S1A/S4/S6/S8 chassis, classic spare part for enterprise core and data center 10G fiber network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
