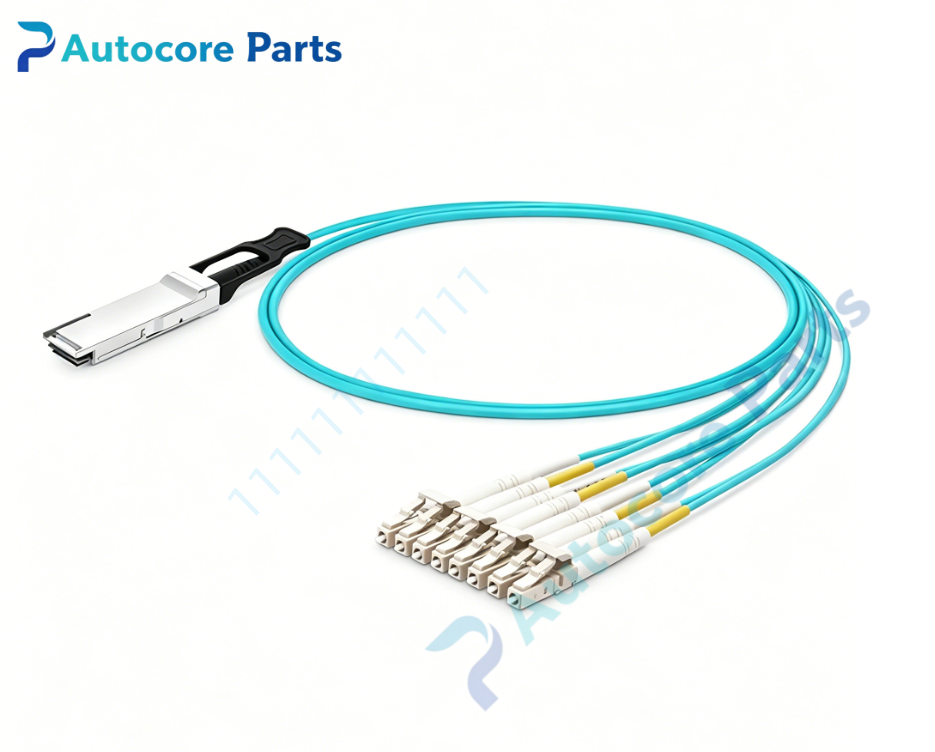

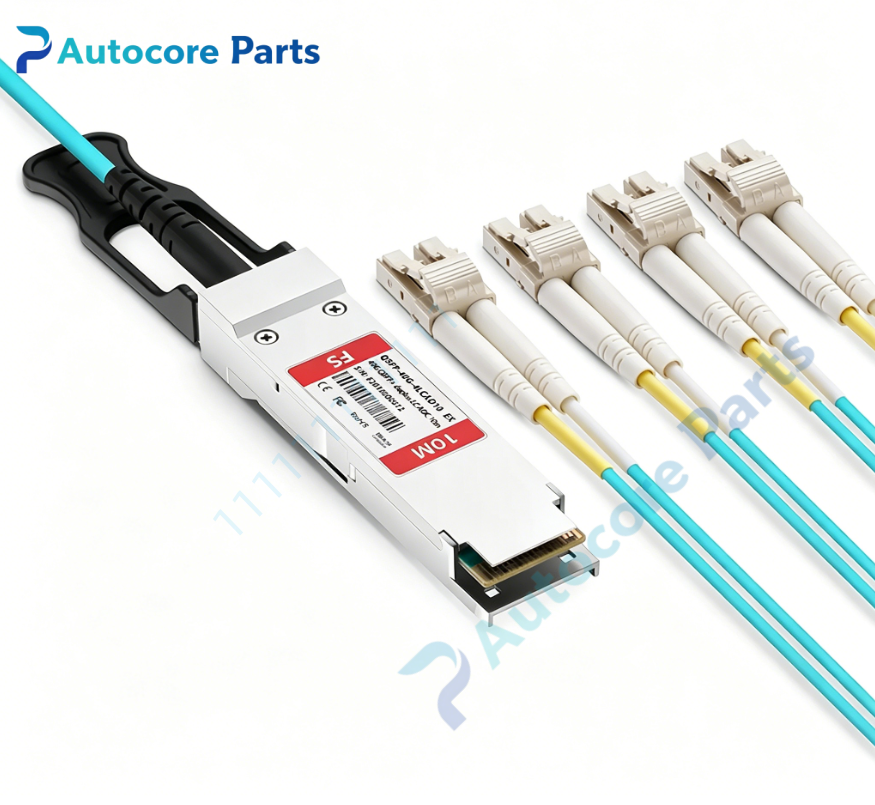

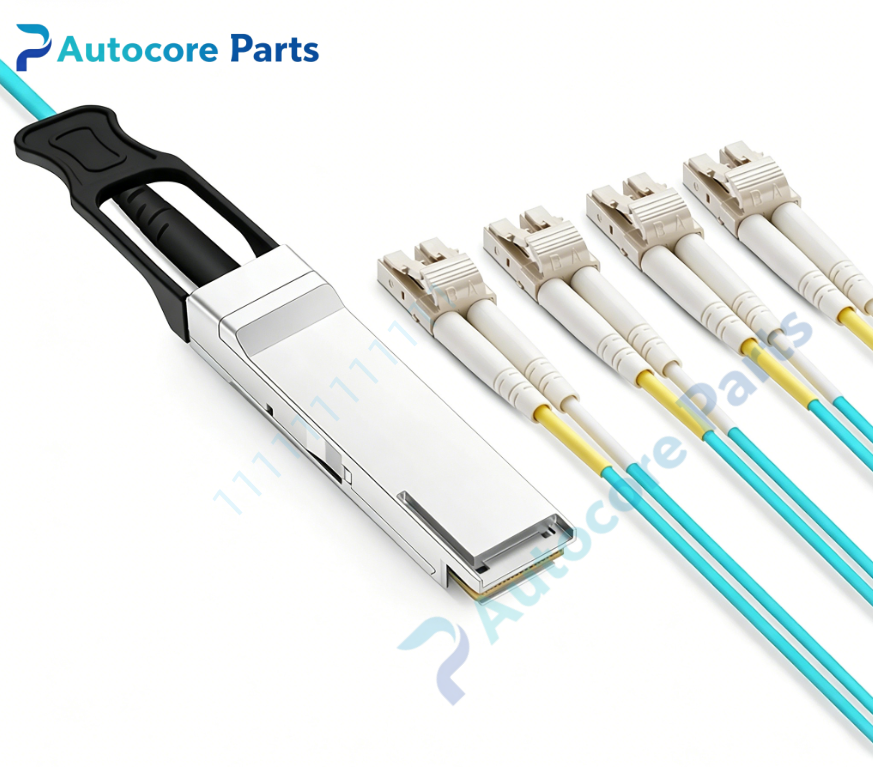

Extreme Networks F10-QSFP-8LC-A QSFP+ Breakout Optical Adapter

Technical SpecificationsModel: F10-QSFP-8LC-A Brand: Extreme Networks Product Type: QSFP+ Hot-swappable Breakout Optical Adapter Mounting: Plug into QSFP+ port of chassis / rack switch Operating temperature: 0℃ ~ +70℃ Storage temperature: -40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Standard:40GBASE-SR4 Wavelength:850nm Fiber type: OM3 / OM4 multimode fiber Interface: QSFP+ host side, 8×LC duplex ports Digital monitoring: DDM / DOM Weight:0.09 kg

System compatibilityF10-QSFP-8LC-A is Extreme Networks QSFP+ breakout optical adapter. Compatible with Extreme VSP7400, X620, X670, X870 and other switches with QSFP+ slots. Used for 40G SR4 multimode fiber breakout, converting one QSFP+ 40G port into four independent 10G channels via 8 LC fiber connectors. Widely used for data center network expansion and spare replacement.

FunctionF10-QSFP-8LC-A implements 40G SR4 parallel optical signal breakout. It splits 4 lanes of 10G parallel optical signals to 8 LC duplex ports, realizing 4×10G independent transmission. It supports DDM to monitor transmit optical power, receive optical power, module temperature and supply voltage. It triggers alarm for optical signal loss, over-temperature and module fault. Used to replace defective breakout adapters for data center 40G to 10G fiber split networking.

InstallationPower off before installation. Insert F10-QSFP-8LC-A into the switch QSFP+ slot. Connect LC duplex multimode fiber cables to the 8 LC ports. Verify module identification by switch operating system, check optical power and port link status before putting into production.

InterfaceQSFP+ edge connector, 8×LC duplex fiber ports, DDM digital diagnostic interface for Extreme Networks F10-QSFP-8LC-A breakout adapter.

FeatureOriginal Extreme Networks F10-QSFP-8LC-A breakout module, hot-swappable, 40G SR4 parallel fiber splitting, DDM real-time monitoring, low power consumption, compliant with IEEE 802.3ae standard. This spare supports data center 40G port breakout deployment.

DiagnosticModule undetected: check insertion, slot status and switch firmware compatibility. Port link down: verify LC fiber, fiber type, optical power and port configuration. Low optical power alarm: check fiber end-face contamination, connector damage and excessive fiber bending.

Product BriefF10-QSFP-8LC-A is Extreme Networks QSFP+ 40GBASE-SR4 breakout optical adapter. It converts one 40G QSFP+ port into four 10G channels via 8 LC interfaces, classic spare part for data center fiber breakout network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
