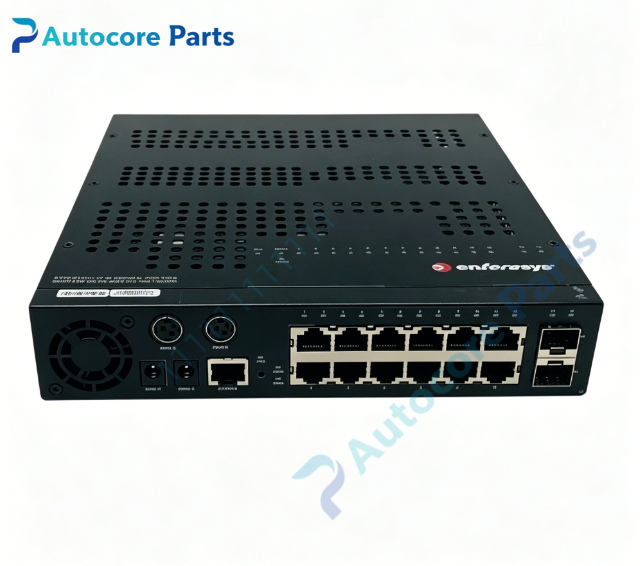

Extreme Networks D2G124-12P Gigabit PoE Managed Switch

Technical SpecificationsModel:D2G124-12P Brand:Extreme Networks Product Type:Half-rack compact 1U Layer2 PoE access switch Ports:12 × 10/100/1000BASE-T PoE RJ45 ports,2 × combo SFP 1000BASE-X uplink slots (combo shared ports, one RJ45 disabled when SFP is used) PoE standard:IEEE 802.3af PoE, total PoE power budget 130W Switching capacity:24 Gbps Forwarding rate:18 Mpps MAC address table:16000 entries VLAN:4094 VLAN IDs Redundancy:Supports external redundant power supply Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.82 kg

System compatibilityD2G124-12P belongs to Extreme Networks SecureStack D2 D-series family, formerly Enterasys. Compatible with Extreme validated 1G SFP transceivers including SX/LX and 100BASE-FX modules. Flexible mounting: 19-inch rack, wall mount, desktop or under-table installation. Widely used for office, classroom and meeting room PoE access for wireless APs and IP phones.

FunctionD2G124-12P is a compact gigabit PoE managed access switch. It supports VLAN segmentation, STP/RSTP, LACP link aggregation, QoS, IGMP snooping, 802.1X authentication and SNMP monitoring. It automatically detects IEEE802.3af powered devices and manages PoE power allocation. It monitors port link status, transceiver DDM optical parameters and power supply health. Used for small workgroup PoE gigabit access networks.

InstallationMount the unit on rack, wall or desktop. Connect AC power cord; external redundant power supply is optional. Insert SFP transceiver and fiber cable for uplink if needed. Connect Cat5e/Cat6 cables to PoE RJ45 ports. Connect serial console port for EOS configuration. Verify boot sequence, port link and PoE status before putting into production.

Interface12×PoE gigabit RJ45 ports,2×combo SFP uplink slots,DB9 serial console port,status LEDs,AC power inlet,external RPS connector,Kensington lock slot for Extreme Networks D2G124-12P.

FeatureOriginal Extreme Networks SecureStack D2 compact half-rack 12-port gigabit PoE switch, wide temperature range, quiet fan design, combo SFP uplink, transceiver DDM monitoring, external redundant power support,EOS operating system,built-in self-diagnostic function. This spare supports enterprise small workgroup, classroom and meeting room PoE access deployment.

DiagnosticSwitch fails to boot: check AC power cord and wall power supply. PoE port no power: verify PD detection, total PoE budget and port enable status. Port link down: check Cat5e/Cat6 cable, SFP transceiver and port admin status. Transceiver no DDM data: confirm Extreme validated SFP module. Over-temperature alarm: inspect ventilation and clean dust.

Product BriefD2G124-12P is Extreme Networks SecureStack D2 compact half-rack 12-port gigabit PoE managed switch with 2×combo SFP uplink slots, classic spare part for enterprise small workspace PoE access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
