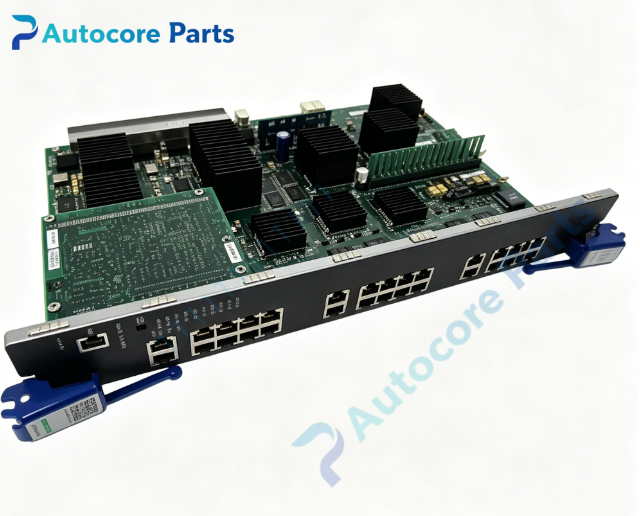

Extreme Networks 7G4202-30 Gigabit DFE I/O Line Card

Technical SpecificationsModel:7G4202-30 Brand:Extreme Networks Product Type:Hot-swappable Platinum DFE distributed forwarding engine line card Compatible chassis:Matrix N7, N5, N3, N1, E7 modular chassis switch Ports:30 × 10/100/1000BASE-T RJ45 copper ports Speed:10/100/1000Mbps auto-negotiation per port Architecture:Platinum distributed forwarding engine, wire-speed Layer2/Layer3/Layer4 policy switching OS:EOS (Enterasys Operating System) Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.55 kg

System compatibility7G4202-30 belongs to Extreme Networks Matrix N-series Platinum DFE family, formerly Enterasys. It can be installed in Matrix N7, N5, N3, N1 and E7 chassis slots. It uses distributed forwarding so each DFE handles packet forwarding independently, reducing the load on the chassis supervisor. Widely used for legacy enterprise core and aggregation gigabit copper access spare replacement.

Function7G4202-30 is a high-density gigabit distributed forwarding engine line card for Matrix chassis switches. It provides 30-port 10/100/1000BASE-T copper access interfaces with wire-speed packet forwarding. It supports static/dynamic routing, VLAN segmentation, STP/RSTP/MSTP, LACP link aggregation, ACL, QoS, IGMP snooping and 802.1X user authentication. It monitors port link status, module temperature and power consumption, and reports hardware health information to the chassis supervisor engine. Used for high-density gigabit copper access inside large enterprise core chassis systems.

InstallationHot-swappable replacement. Insert 7G4202-30 into empty slot of Matrix N7/N5/N3/N1/E7 chassis. Tighten captive screws. Connect Cat5e/Cat6 cables to RJ45 ports. Verify module recognition and port status on EOS before putting into production.

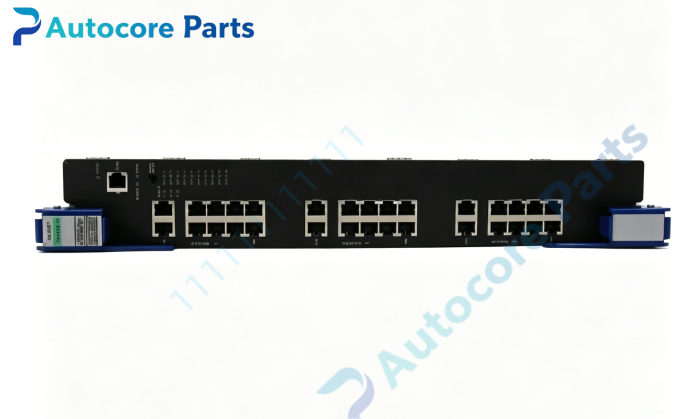

Interface30×10/100/1000BASE-T RJ45 copper ports,reset button,module status LEDs,ejector latches for Extreme Networks 7G4202-30.

FeatureOriginal Extreme Networks Matrix N-series hot-swappable Platinum DFE 30-port gigabit line card, distributed wire-speed forwarding architecture, granular Layer4 traffic policy control, built-in hardware health monitoring,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise large-scale gigabit copper access network deployment.

DiagnosticModule not detected: check blade seating, captive screws and backplane contact. Copper port link down: verify Cat5e/Cat6 cable and port admin status. Port negotiation failure: check cable quality and auto-negotiation configuration. Over-temperature alarm: inspect chassis fan tray operation and clear dust.

Product Brief7G4202-30 is Extreme Networks Matrix N-series hot-swappable Platinum DFE line card with 30×10/100/1000BASE-TX RJ45 copper ports for Matrix N7/N5/N3/N1/E7 chassis, classic spare part for legacy enterprise high-density gigabit copper access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
