Extreme Networks AH-SR2224P Gigabit PoE Managed Switch

Technical SpecificationsModel：AH-SR2224P Brand：Extreme Networks (Aerohive) Product Type：1U rackmount Layer2/Layer3 Lite managed PoE switch

Ports:

• 24 ×10/100/1000BASE-T RJ45 copper ports, IEEE802.3af PoE, max 15.4W per port

• 4 ×100BASE-FX /1000BASE-X SFP gigabit fiber uplink slots

• 1 ×10/100BASE-T out-of-band management port

• 1 ×RJ45 serial console port

Switching capacity：56Gbps Forwarding rate：41.7Mpps MAC address table：32000 entries Jumbo frame：9216 bytes PoE power budget：180W Routing：L3 Lite static routing OS：Aerohive HiveOS, cloud or local web/CLI management

Power & fan：Built-in single AC power supply,smart variable-speed fan,front-to-back airflow Operating temperature：0℃ ~ +40℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~90%, non-condensing Weight：4.8kg

System compatibility

AH-SR2224P belongs to Aerohive SR2200 cloud-managed enterprise access family under Extreme Networks. Compatible with Aerohive / Extreme validated 100M/1G SFP optical transceivers. Managed via Aerohive cloud platform or local CLI/web GUI. Widely used for office, retail store, small campus PoE access for Wi-Fi access points, IP surveillance cameras and IP phones spare replacement.

Function

AH-SR2224P is cloud-managed gigabit PoE access switch. 24 PoE ports transmit data and supply power to powered end devices. Four SFP slots provide gigabit fiber uplink to aggregation switches. It supports static routing, VLAN, STP/RSTP, LACP link aggregation, ACL, QoS and multicast snooping. It monitors port link state, PoE power consumption, system temperature and fan health, and generates hardware fault alarms. Used for small enterprise wiring closet cloud managed PoE access networks.

Installation

Mount the switch on standard 19-inch 1U rack. Connect AC power cable. Insert SFP transceivers and fiber patch cords for fiber uplink if required. Connect console port for initial configuration and cloud registration. Verify boot,port link and PoE output function before commissioning.

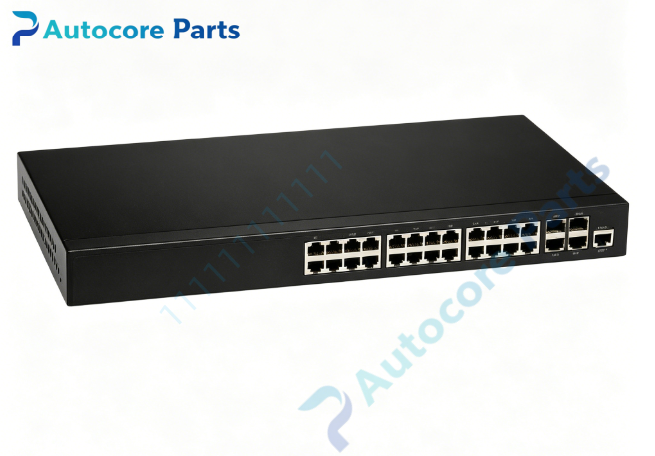

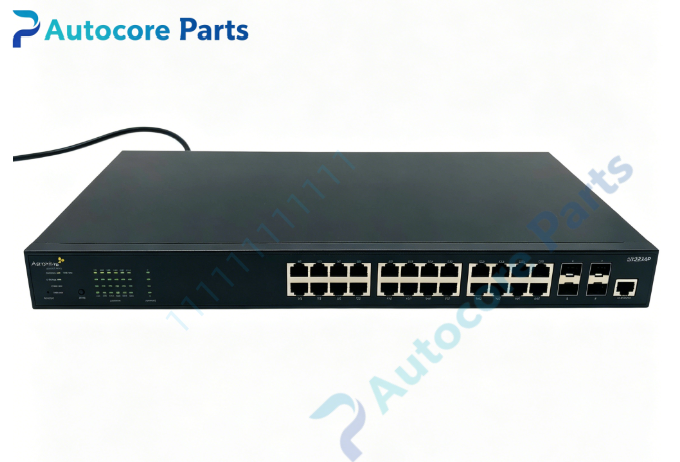

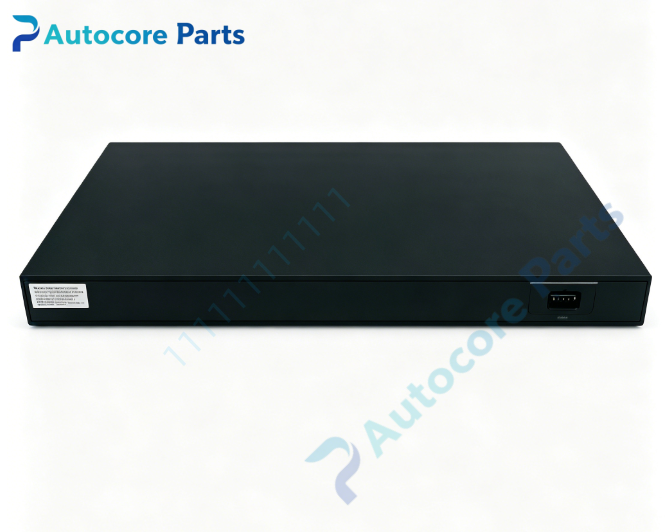

Interface24×PoE RJ45 ports,4×SFP gigabit uplink slots,10/100 out-of-band management port,RJ45 serial console,status LEDs,reset button,AC power inlet,ground terminal,rack mounting ears for Extreme Networks AH-SR2224P.

FeatureOriginal Aerohive SR2200 series 1U rackmount gigabit PoE Layer3 Lite access switch,24 802.3af PoE ports plus four gigabit SFP uplink slots,180W PoE budget,cloud & local dual management,smart fan cooling,built-in self-diagnostic function. This spare is ideal for small retail and branch office cloud network deployment.

DiagnosticSwitch fails to boot: Check AC power input and power supply health. PoE port no power: Verify PoE budget,PD device classification and port admin status. Copper port link down: Inspect RJ45 cable quality and auto-negotiation settings. SFP port no link: Check SFP transceiver,fiber cable and port configuration. Low optical power alarm: Dirty fiber endfaces or damaged fiber cables. Transceiver undetected: Confirm Extreme/Aerohive compatible SFP module and correct insertion. Over-temperature alarm: Check fan operation and cabinet ventilation,clean dust buildup. Cloud offline: Verify internet connection and switch cloud registration status.

Product BriefAH-SR2224P is Extreme Networks Aerohive SR2200 series 1U rackmount Layer3 Lite gigabit PoE managed switch with 24 PoE RJ45 ports and 4 GE SFP uplink slots,classic spare part for cloud-managed small enterprise PoE access network overhaul.
