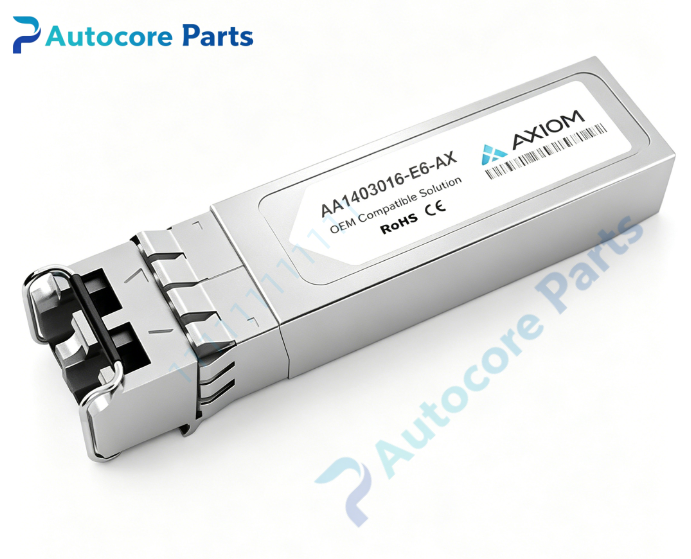

Extreme Networks AA1403016-E6 SFP+ Optical Transceiver

Technical SpecificationsModel：AA1403016-E6 Brand：Extreme Networks (Avaya legacy) Product Type：Hot-pluggable SFP+ optical transceiver

Interface: LC duplex connector Rate: 10Gbps 10GBASE-ZR Wavelength: 1550nm Fiber type: Single-mode fiber (SMF) Max reach: 70km Diagnostic: DDM / DOM digital optical monitoring Operating voltage: 3.3V Transmit power: -2 ~ +4 dBm Receiver sensitivity: -24 dBm

Physical Parameter Weight：0.02kg Dimension：13.5mm(H) ×14.3mm(W) ×85mm(D) Operating temperature：0℃ ~ +70℃ Storage temperature：-40℃ ~ +85℃ Relative humidity：5%~95%, non-condensing

System compatibility

AA1403016-E6 is Extreme original 10G ZR SFP+ transceiver, inherited from Avaya product portfolio. Compatible with Extreme / Avaya VSP series, ERS series, 5520, 5420 series switches with SFP+ slots. Supports DDM real-time monitoring of optical power, temperature and voltage. Widely used for long-distance interconnection between enterprise campus core rooms, metropolitan network point-to-point fiber link spare replacement.

Function

AA1403016-E6 converts 10G electrical signal into optical signal for long-distance single-mode fiber transmission. It supports DDM to monitor working status of the module in real time. It is used for 70km point-to-point 10G fiber uplink between remote sites, data center interconnection and enterprise long-haul network links.

Installation

Wear ESD anti-static wrist strap. Insert the SFP+ module fully into the SFP+ port of switch. Connect LC single mode fiber patch cord. Power on the equipment, verify module identification, optical power reading and link status via switch CLI. Confirm link transmission works normally before commissioning.

InterfaceSFP+ gold finger, LC duplex fiber port, status indicator for Extreme Networks AA1403016-E6.

FeatureOriginal Extreme 10GBASE-ZR SFP+ optical transceiver,1550nm wavelength,70km single-mode transmission,built-in DDM digital diagnostic,hot-pluggable,LC duplex interface,low power consumption,built-in self-diagnostic function. This spare is designed for long-distance 10G fiber interconnection scenarios.

DiagnosticModule undetected: Check gold finger cleanliness and SFP+ port health. No optical link: Verify fiber polarity, fiber quality and peer transceiver parameter matching. Low transmit / receive optical power alarm: Dirty LC fiber end faces or damaged single-mode fiber cables. DDM read failure: Confirm switch firmware supports DOM function. Over-temperature alarm: Check equipment cabinet ventilation and heat dissipation.

Product BriefAA1403016-E6 is Extreme Networks 10GBASE-ZR hot-pluggable SFP+ single mode optical transceiver with 1550nm wavelength and 70km transmission,classic spare part for enterprise long-distance point-to-point 10G fiber link overhaul.
