Extreme Networks 8900-MSM128 Switch Control Module

Technical SpecificationsModel:8900-MSM128 Brand: Extreme Networks Product Type: Chassis Switch Management Module (MSM) Compatible chassis: BlackDiamond 8900 CPU: Dual-core 700MHz processor Memory:1GB ECC SDRAM Storage:512MB Compact Flash Max switching capacity:160 Gbps with dual MSM installed Management ports:

• 1 × RJ45 console port

• 1 × 10/100/1000M out-of-band management port

• USB port for maintenance Redundancy: Hitless MSM failover, supports dual MSM hot standby Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:2.1 kg

System compatibility8900-MSM128 is the main management module for Extreme BlackDiamond 8900 chassis core switch. It can be installed in pairs for redundant control plane. Compatible with all BD8900 line cards. Works with ExtremeXOS operating system. Widely used for campus core and enterprise backbone network spare replacement.

Function8900-MSM128 serves as the control and management core of BlackDiamond 8900 chassis switch. It processes L2/L2 switching, routing protocols, system configuration, port monitoring, QoS, ACL and fabric management. It supports CLEAR-Flow traffic monitoring function. It continuously monitors power supplies, fan trays, line card status and internal temperature. It supports hitless failover when dual MSMs are deployed. Used to replace faulty management modules for BD8900 core chassis.

InstallationPower off chassis before installation. Insert 8900-MSM128 into the MSM slot of BlackDiamond 8900 chassis. Fasten the retaining screws. Connect console cable and out-of-band management cable. Power on chassis, verify module boot and ExtremeXOS recognition. Confirm fabric initialization and redundancy status before putting into production.

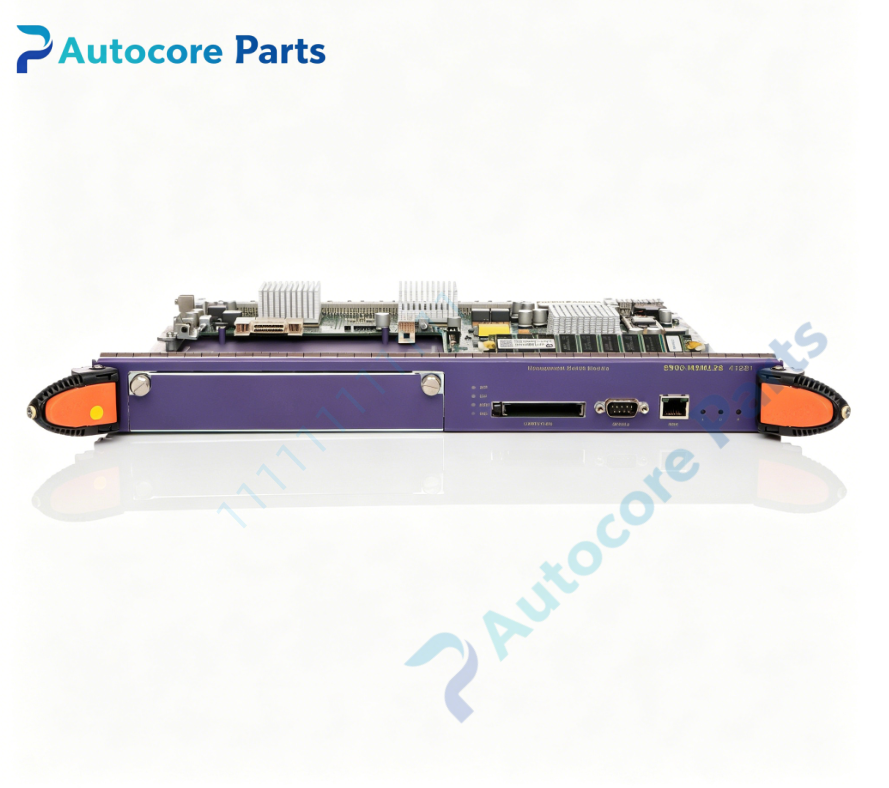

InterfaceRJ45 console port, out-of-band management port, USB maintenance port, status LEDs, ejector handles for Extreme Networks 8900-MSM128.

FeatureOriginal Extreme Networks BD8900 MSM128 management module, dual-core CPU, ECC memory, hot-swappable standby and hitless failover, CLEAR-Flow traffic analytics, ExtremeXOS OS, built-in self-diagnostic function. This spare supports enterprise core redundant chassis deployment.

DiagnosticModule not detected: check insertion, slot status and chassis power supply. Boot failure: check Compact Flash and firmware integrity. Abnormal redundancy switchover: confirm firmware versions of two MSM modules are consistent. Over-temperature alarm: check fan tray operation and chassis airflow.

Product Brief8900-MSM128 is Extreme Networks control and management module for BlackDiamond 8900 chassis switch, equipped with dual-core 700MHz CPU,1GB ECC memory and 512MB CF storage, supporting hitless control plane redundancy, classic spare part for enterprise core backbone network overhaul.
