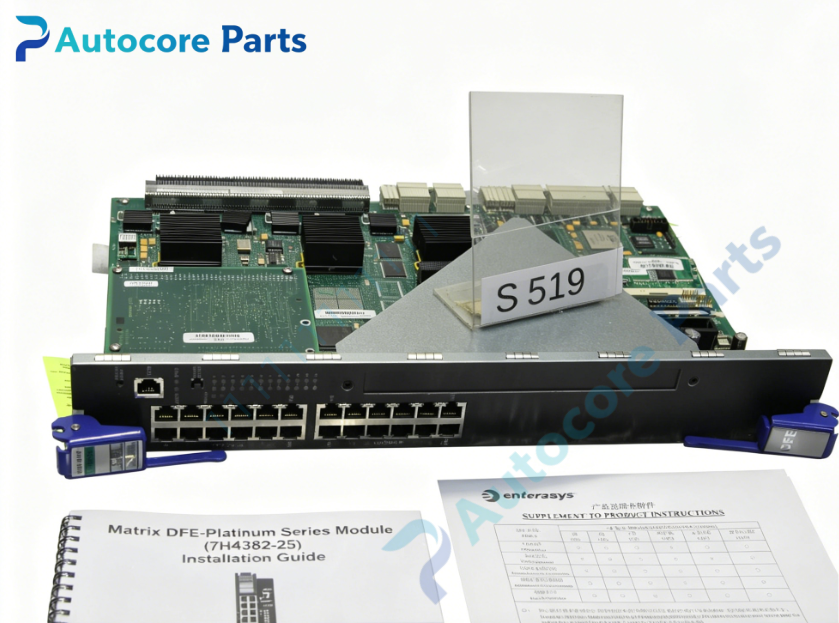

Extreme Networks 7H4382-25 Fast Ethernet DFE I/O Line Card

Technical SpecificationsModel:7H4382-25 Brand:Extreme Networks Product Type:Hot-swappable Platinum DFE distributed forwarding engine line card Compatible chassis:Matrix N7, N5, N3, N1, E7 modular chassis switch Ports:24 × 10/100BASE-TX RJ45 copper ports,1 × dedicated expansion module slot Speed:10/100Mbps auto-negotiation per port OS:EOS (Enterasys Operating System) Forwarding:Layer2/Layer3/Layer4 policy switching Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:2.27 kg

System compatibility7H4382-25 belongs to Extreme Networks Matrix N-series Platinum DFE family, formerly Enterasys. It is compatible with Matrix N7, N5, N3, N1 and E7 chassis backplane. The expansion slot accepts optional media modules for fiber uplink extension. Widely used for legacy campus and enterprise chassis copper access spare replacement.

Function7H4382-25 is a distributed forwarding engine line card for Matrix chassis switches. It provides 24-port 10/100BASE-TX copper access interfaces and independent packet forwarding capability. It supports static routing, VLAN segmentation, STP/RSTP/MSTP, LACP, ACL, QoS and IGMP snooping. It monitors port link status, module temperature and power consumption, and reports real-time health information to the chassis supervisor engine. The expansion slot allows flexible media expansion for fiber uplink. Used for high-density fast ethernet copper access inside core chassis systems.

InstallationHot-swappable replacement. Insert 7H4382-25 into empty slot of Matrix N7/N5/E7 chassis. Tighten captive screws. Install optional expansion module if needed. Connect Cat5e cables to RJ45 ports. Verify module recognition and port status on EOS before putting into production.

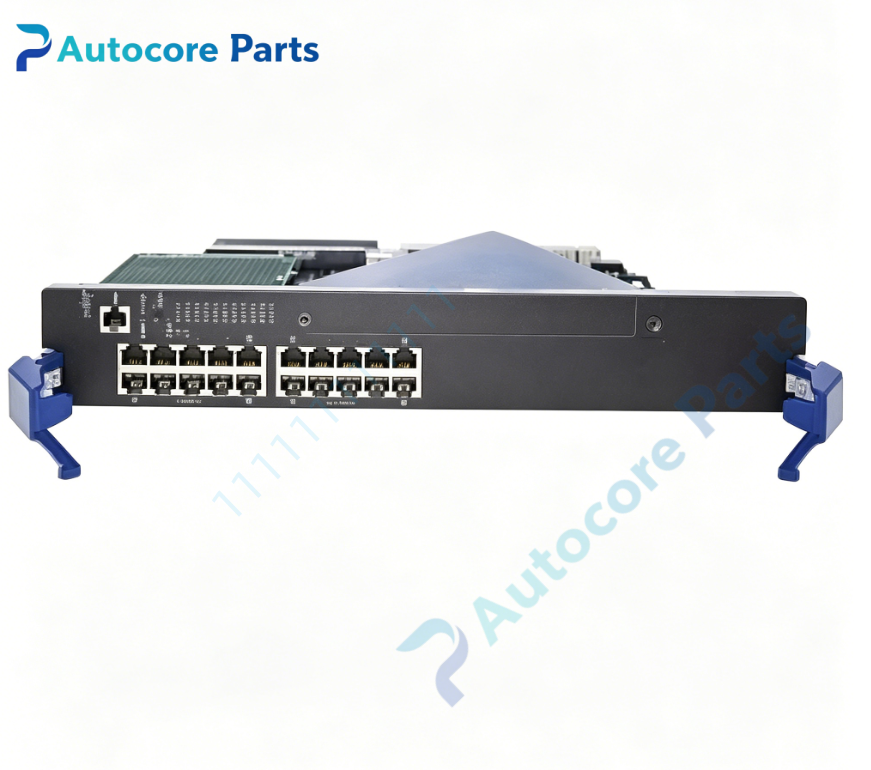

Interface24×10/100BASE-TX RJ45 copper ports,1×expansion slot,module status LEDs,ejector latches for Extreme Networks 7H4382-25.

FeatureOriginal Extreme Networks Matrix N-series hot-swappable Platinum DFE 24-port fast ethernet line card, built-in expansion slot for flexible media upgrade, wire-speed Layer4 policy control, real-time hardware health monitoring,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise chassis high-density copper access network deployment.

DiagnosticModule not detected: check blade seating, captive screws and backplane contact. Copper port link down: verify Cat5e cable and port admin status. Expansion module failure: check module insertion and slot compatibility. Over-temperature alarm: inspect chassis fan tray operation and clear dust.

Product Brief7H4382-25 is Extreme Networks Matrix N-series hot-swappable Platinum DFE line card with 24×10/100BASE-TX RJ45 ports and one expansion slot, classic spare part for legacy enterprise chassis copper access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
