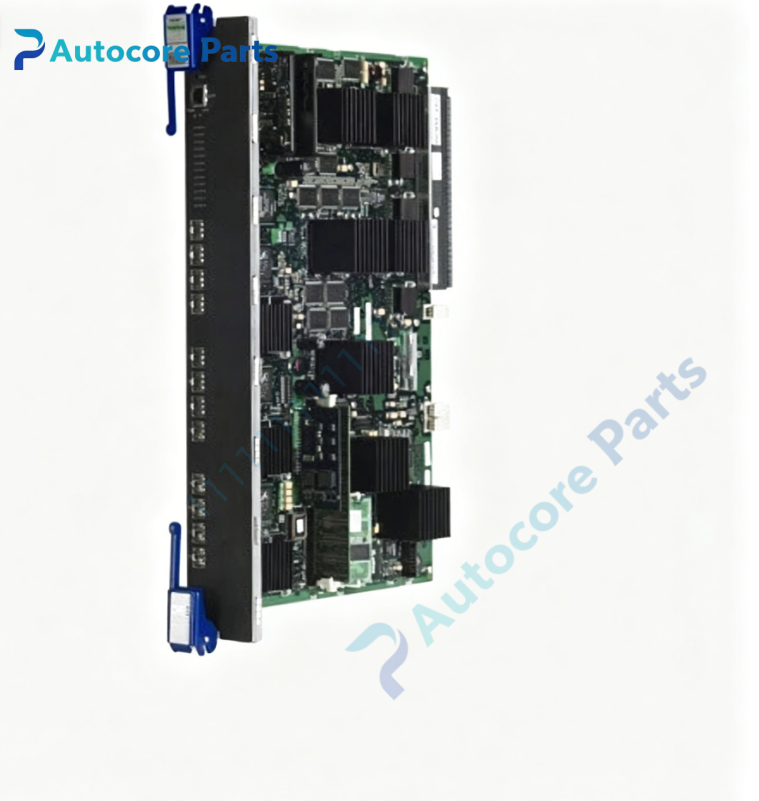

Extreme Networks 7G4270-12 Gigabit SFP DFE I/O Line Card

Technical SpecificationsModel:7G4270-12 Brand:Extreme Networks Product Type:Hot-swappable DFE distributed forwarding engine / line card Compatible chassis:Matrix N7, N5, N3, N1, E7 modular chassis switch Ports:12 × SFP 1000BASE-X gigabit fiber slots Architecture:Platinum distributed forwarding engine OS:EOS (Enterasys Operating System) Forwarding:Layer2/Layer3/Layer4 policy-based switching Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.4 kg

System compatibility7G4270-12 belongs to Extreme Networks Matrix N-Series Platinum DFE family, formerly Enterasys. It can be inserted into Matrix N7, N5, N3, N1 and E7 chassis slots. Compatible with Extreme validated 1G SFP optical transceivers and DAC cables. Widely used for legacy enterprise core and aggregation layer chassis network spare replacement.

Function7G4270-12 is a high-performance distributed forwarding engine line card for Matrix N-series chassis. It provides 12 gigabit SFP fiber interfaces and independent packet forwarding. It supports static/dynamic routing, VLAN segmentation, STP/MSTP, LACP, ACL, QoS, multicast and flow-based traffic policing. It monitors port link status, transceiver DDM optical parameters, module temperature and power consumption, and reports health status to the chassis supervisor. Used for core chassis high-density gigabit fiber interconnection.

InstallationHot-swappable replacement. Insert 7G4270-12 into empty slot of Matrix N7/N5/N3/N1/E7 chassis. Tighten captive screws. Insert SFP transceivers and fiber patch cords. Verify module recognition and port status on EOS before putting into production.

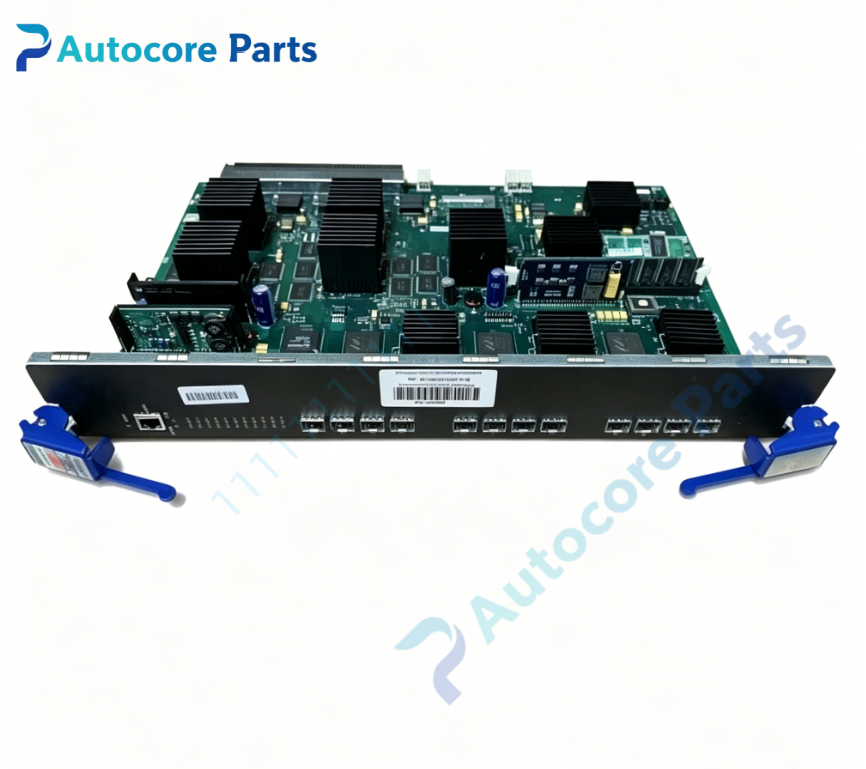

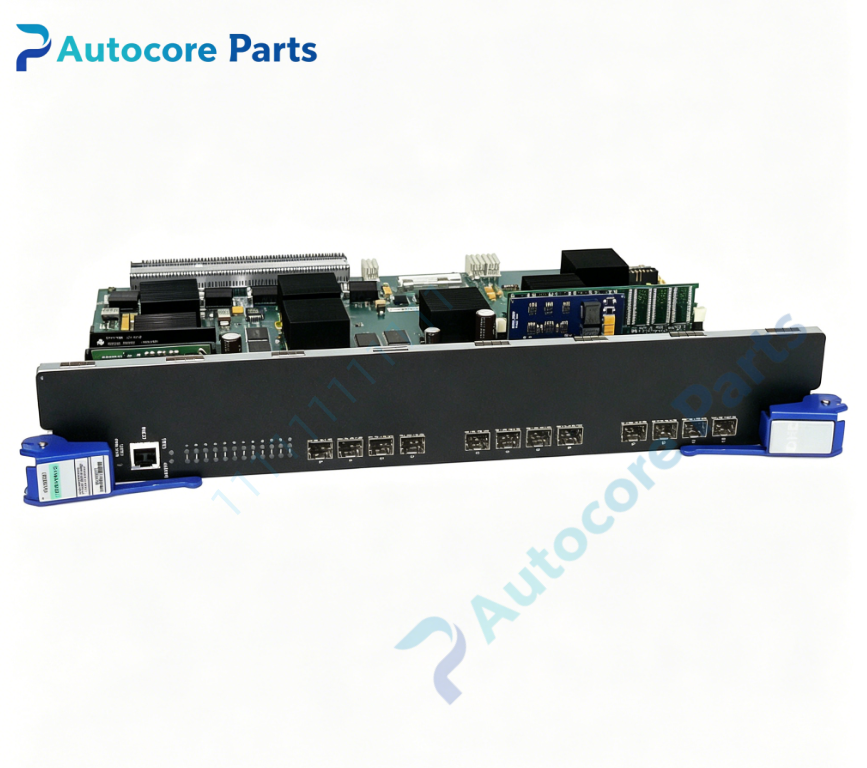

Interface12×SFP gigabit fiber slots,module status LEDs,ejector latches for Extreme Networks 7G4270-12.

FeatureOriginal Extreme Networks Matrix N-series Platinum DFE 12-port 1G SFP hot-swappable line card, distributed forwarding architecture, policy-based Layer4 traffic control, transceiver DDM monitoring,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise core and aggregation layer high-density fiber network deployment.

DiagnosticModule not detected: check blade seating,captive screws and backplane contact. SFP port link down: verify SFP transceiver,fiber cable and clean fiber connectors. Transceiver no DDM data: confirm Extreme validated SFP transceiver. Over-temperature alarm: inspect chassis fan tray operation and airflow.

Product Brief7G4270-12 is Extreme Networks Matrix N-series Platinum DFE hot-swappable line card with 12×1G SFP ports for Matrix N7/N5/N3/N1/E7 chassis,classic spare part for legacy enterprise core network gigabit fiber overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
