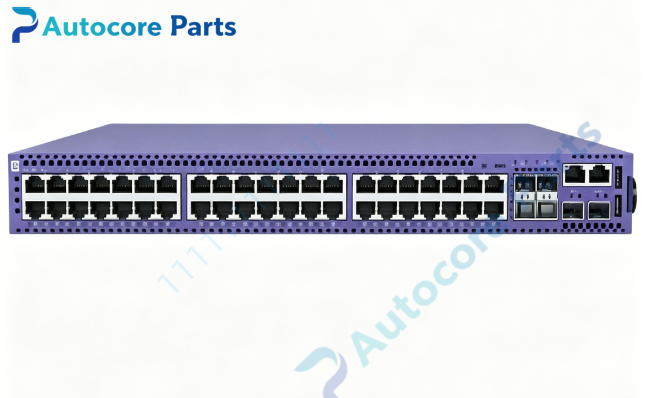

Extreme Networks 5420F-48P-4XE Gigabit PoE+ Managed Switch

Technical SpecificationsModel：5420F-48P-4XE Brand：Extreme Networks Product Type：1U rackmount Layer2/Layer3 managed PoE switch

Ports:

• 48 ×10/100/1000BASE-T PoE+ RJ45 copper ports, IEEE802.3at PoE+, max 30W per port, MACsec hardware capable

• 4 ×1G/10G auto-sensing SFP+ uplink slots, MACsec supported

• 2 ×SFP-DD universal stacking ports

• 1 ×10/100/1000BASE-T out-of-band management port

• 1 ×RJ45 serial console port

• 1 ×USB Micro-B console port

• 2 ×USB-A ports for configuration backup

Switching capacity：240Gbps Forwarding rate：178.6Mpps MAC address table：64000 entries Jumbo frame：9216 bytes PoE power budget：740W, support optional secondary redundant PSU Security：Hardware MACsec link encryption Stacking：High-speed stacking via SFP-DD ports, up to 8 switches in stack OS：Switch Engine / Fabric Engine, compatible with ExtremeCloud IQ cloud management

Power & fan：Built-in fixed AC PSU, support second hot-swappable PSU, three fixed fan modules, front-to-back airflow Operating temperature：0℃ ~ +50℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~90%, non-condensing Weight：6.6kg

System compatibility

5420F-48P-4XE belongs to ExtremeSwitching 5420F universal enterprise edge family. Compatible with Extreme validated 1G SFP and 10G SFP+ transceivers, SFP-DD stacking modules. Supports stacking within 5420 series platform. It can be managed via local CLI/web GUI or ExtremeCloud IQ cloud platform. Widely used for enterprise campus, office, hotel PoE access for Wi-Fi APs, IP surveillance cameras and IP phones spare replacement.

Function

5420F-48P-4XE is high-performance Layer3 gigabit PoE+ edge switch. 48 PoE+ copper ports transmit data and supply power to powered end devices. Four SFP+ ports support 1G/10G fiber uplink to aggregation layer; dual SFP-DD ports implement high-speed stacking. Hardware MACsec provides end-to-end link encryption. It supports static & dynamic routing,VLAN,STP/RSTP/MSTP,LACP link aggregation,ACL,QoS and multicast snooping. It monitors port link state,PoE power consumption,system temperature and fan health, and generates hardware fault alarms. Used for enterprise wiring closet secure PoE access networks.

Installation

Mount the switch on standard 19-inch 1U rack. Connect AC power cable, optional secondary PSU for power redundancy. Insert SFP/SFP+ transceivers and fiber patch cords for uplink. Install SFP-DD stacking modules if stacking deployment required. Connect console port for initial configuration. Verify boot,port optical link,PoE output and stacking function before commissioning.

Interface48×PoE+ RJ45 ports,4×SFP+ 1G/10G uplink slots,2×SFP-DD stacking ports,1G out-of-band management port,RJ45 serial console,USB Micro-B,dual USB-A,status LEDs,reset button,AC power inlet,redundant PSU slot,ground terminal,rack mounting ears for Extreme Networks 5420F-48P-4XE.

FeatureOriginal ExtremeSwitching 5420F series 1U rackmount gigabit PoE+ Layer3 edge switch,48 802.3at PoE+ ports plus four multi-rate SFP+ uplink slots,dual SFP-DD stacking interfaces,740W PoE budget,hardware MACsec encryption,cloud & local dual management,three built-in fan modules,built-in self-diagnostic function. This spare fits secure high-density enterprise edge access deployment.

DiagnosticSwitch fails to boot: Check AC power input and power supply health. PoE port no power: Verify PoE budget,PD device classification and port admin status. Copper port link down: Inspect RJ45 cable quality and auto-negotiation settings. SFP+ port no link: Check SFP+ transceiver,fiber cable and port configuration. Low optical power alarm: Dirty fiber endfaces or damaged fiber cables. Transceiver undetected: Confirm Extreme compatible SFP/SFP+ module and correct insertion. MACsec negotiation failure: Verify MACsec security key and peer device configuration. Over-temperature alarm: Check fan modules running status and rack ventilation,clean dust buildup. Stacking failure: Verify matched firmware version and SFP-DD stacking module connection.

Product Brief5420F-48P-4XE is ExtremeSwitching 5420F series 1U rackmount Layer3 gigabit PoE+ managed switch with 48 PoE+ RJ45 ports,4×1G/10G SFP+ uplink ports and 2 SFP-DD stacking ports,classic spare part for secure enterprise wiring closet edge access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
