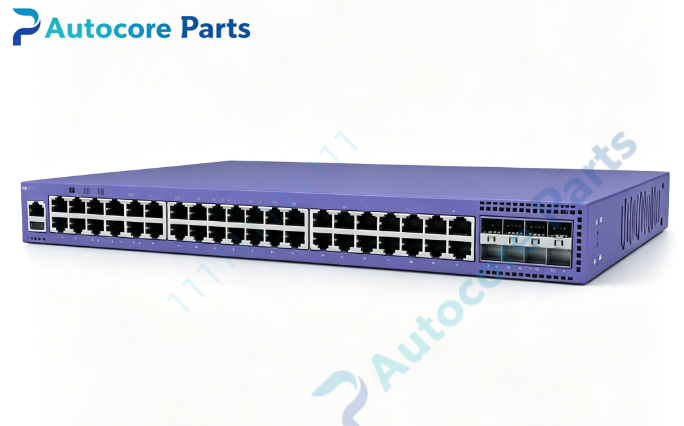

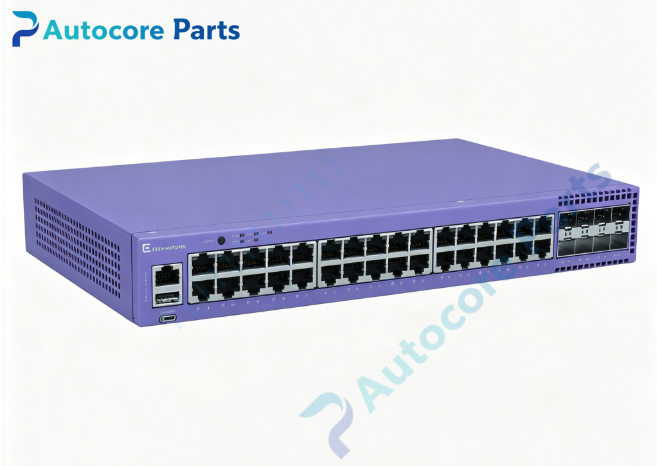

Extreme Networks 5320-48P-8XE Gigabit PoE+ Managed Switch

Technical SpecificationsModel：5320-48P-8XE Brand：Extreme Networks Product Type：1U rackmount Layer2/Layer3 managed PoE switch

Ports:

• 48 ×10/100/1000BASE-T PoE+ RJ45 copper ports, IEEE802.3at PoE+, max 30W per port

• 8 ×1G/10G auto-sensing SFP+ uplink/stacking slots,2 ports dedicated for stacking; last 4 ports support 100M

• 1 ×10/100BASE-T out-of-band management port

• 1 ×RJ45 serial console port

• 1 ×USB-A port,1 ×USB Micro-B console port

Switching capacity：240Gbps Forwarding rate：178.6Mpps MAC address table：64000 entries Jumbo frame：9216 bytes PoE power budget：950W Security：Hardware MACsec encryption on all ports Stacking：High-speed stacking via SFP+ ports OS：Switch Engine / Fabric Engine, ExtremeCloud IQ cloud management

Power & fan：Hot-swappable 950W AC PSU, variable speed smart fans, front-to-back airflow Operating temperature：0℃ ~ +50℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~90%, non-condensing Weight：6.5kg

System compatibility

5320-48P-8XE belongs to ExtremeSwitching 5320 universal hardware enterprise access family. Compatible with Extreme validated 100M/1G/10G SFP+ optical transceivers. Supports stacking within 5320 series switches. Managed via local CLI/web GUI or ExtremeCloud IQ cloud platform. Widely deployed for enterprise campus, office and hotel PoE access for Wi-Fi APs, IP cameras and IP phones spare replacement.

Function

5320-48P-8XE is high-performance Layer3 gigabit PoE+ access switch. 48 PoE+ copper ports transmit data and supply power to powered end devices. Eight SFP+ ports support 1G/10G fiber uplink or high-speed stacking. All ports support hardware MACsec for link encryption. It supports static & dynamic routing,VLAN,STP/RSTP/MSTP,LACP link aggregation,ACL,QoS and multicast snooping. It monitors port link state,PoE power consumption,system temperature and fan health, and generates hardware fault alarms. Used for enterprise wiring closet PoE access networks requiring 10G uplink and link security.

Installation

Mount the switch on standard 19-inch 1U rack. Connect AC power cable. Insert SFP/SFP+ transceivers and fiber patch cords for uplink or stacking. Configure stacking if multiple chassis are required. Connect console port for initial configuration. Verify boot,port link,PoE output and stacking function before commissioning.

Interface48×PoE+ RJ45 ports,8×SFP+ 1G/10G uplink/stacking slots,10/100 out-of-band management port,RJ45 serial console,USB-A,USB Micro-B console,status LEDs,reset button,AC power inlet,ground terminal,rack mounting ears for Extreme Networks 5320-48P-8XE.

FeatureOriginal ExtremeSwitching 5320 series 1U rackmount gigabit PoE+ Layer3 access switch,48 802.3at PoE+ ports plus 8 multi-rate SFP+ slots,950W full PoE power budget,hardware MACsec link encryption,high-speed stacking capability,cloud & local dual management,smart variable-speed fans,built-in self-diagnostic function. This spare is suitable for high-density enterprise access requiring secure 10G uplink.

DiagnosticSwitch fails to boot: Check AC power input and power supply health. PoE port no power: Verify PoE budget,PD device classification and port admin status. Copper port link down: Inspect RJ45 cable quality and auto-negotiation settings. SFP+ port no link: Check SFP+ transceiver,fiber cable and port configuration. Low optical power alarm: Dirty fiber endfaces or damaged fiber cables. Transceiver undetected: Confirm Extreme compatible SFP/SFP+ module and correct insertion. MACsec negotiation failure: Verify MACsec key and peer configuration. Over-temperature alarm: Check fan operation and cabinet ventilation,clean dust buildup. Stacking unstable: Verify matched firmware version and stacking cable connection.

Product Brief5320-48P-8XE is ExtremeSwitching 5320 series 1U rackmount Layer3 gigabit PoE+ managed switch with 48 PoE+ RJ45 ports and 8×1G/10G SFP+ uplink/stacking slots,classic spare part for secure enterprise wiring closet PoE access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
