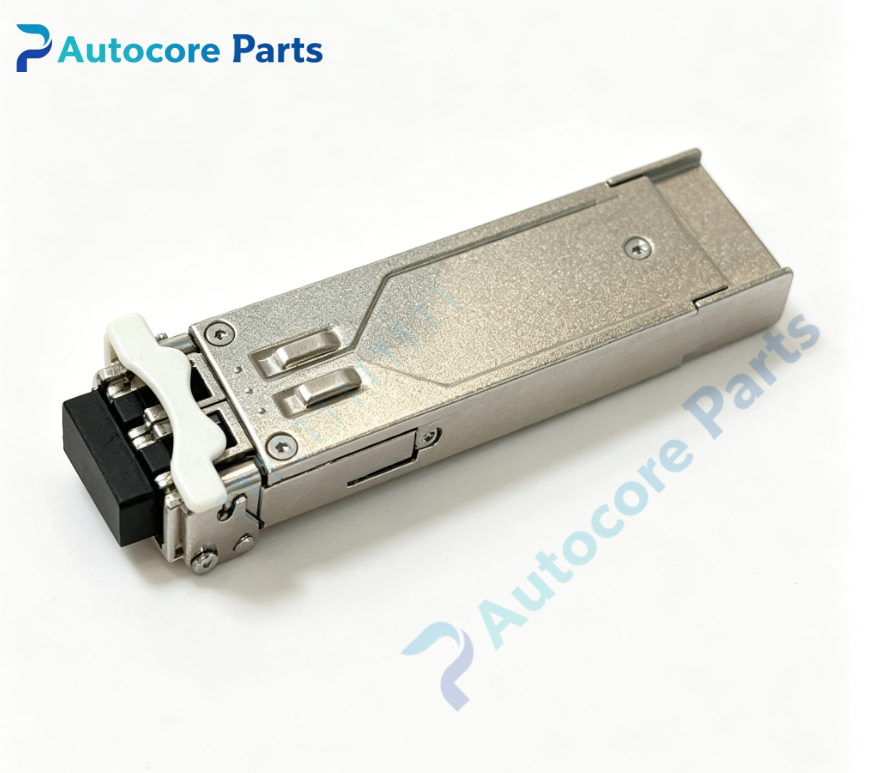

Extreme Networks 4050-00038-1 SFP+ Optical Transceiver

Technical SpecificationsModel:4050-00038-1 Brand: Extreme Networks Product Type: Hot-swappable SFP+ 10G Optical Transceiver Mounting: Plug into SFP+ port of Extreme switch Operating temperature: 0℃ ~ +70℃ Storage temperature: -40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Standard:10GBASE-SR Wavelength: 850nm Fiber type: OM3 / OM4 multimode fiber(MMF) Max distance: 300 meters Connector: LC duplex Digital monitoring: DDM / DOM Weight:0.035 kg

System compatibility4050-00038-1 is Extreme Networks original SFP+ 10G SR optical transceiver. Compatible with Extreme Summit X440-G2, X620, X670, VSP series switches equipped with SFP+ slots. Widely used for enterprise campus aggregation and data center short-range 10G fiber interconnection, network maintenance and spare replacement.

Function4050-00038-1 converts 10G electrical signal into optical signal for transmission over multimode fiber. It supports DDM real-time monitoring of transmit optical power, receive optical power, module temperature and supply voltage. It triggers alarm once optical signal loss, over-temperature or module hardware fault occurs. It is used to replace faulty SFP+ modules for short-distance 10G fiber links.

InstallationPower off before installation. Insert SFP+ transceiver into the switch SFP+ slot. Connect LC duplex multimode fiber cable to module port. Verify module identification by switch OS, check optical power and link status before putting into production.

InterfaceSFP+ edge connector, LC duplex fiber port, DDM digital diagnostic interface for Extreme Networks 4050-00038-1 optical transceiver.

FeatureOriginal Extreme Networks 10GBASE-SR SFP+ module, hot-swappable, 850nm short wavelength, DDM real-time monitoring, low power consumption, compliant with IEEE802.3ae standard. This spare supports enterprise campus and data center 10G short-reach fiber network maintenance.

DiagnosticModule undetected: check insertion, slot status and switch firmware compatibility. Port link down: verify LC fiber cable, multimode fiber type, optical power and port administrative status. Low optical power alarm: check fiber end-face contamination, connector damage and excessive cable bending.

Product Brief4050-00038-1 is Extreme Networks SFP+ 10GBASE-SR multimode optical transceiver. It provides short-distance 10G fiber transmission for enterprise and data center switches, classic spare part for 10G network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
