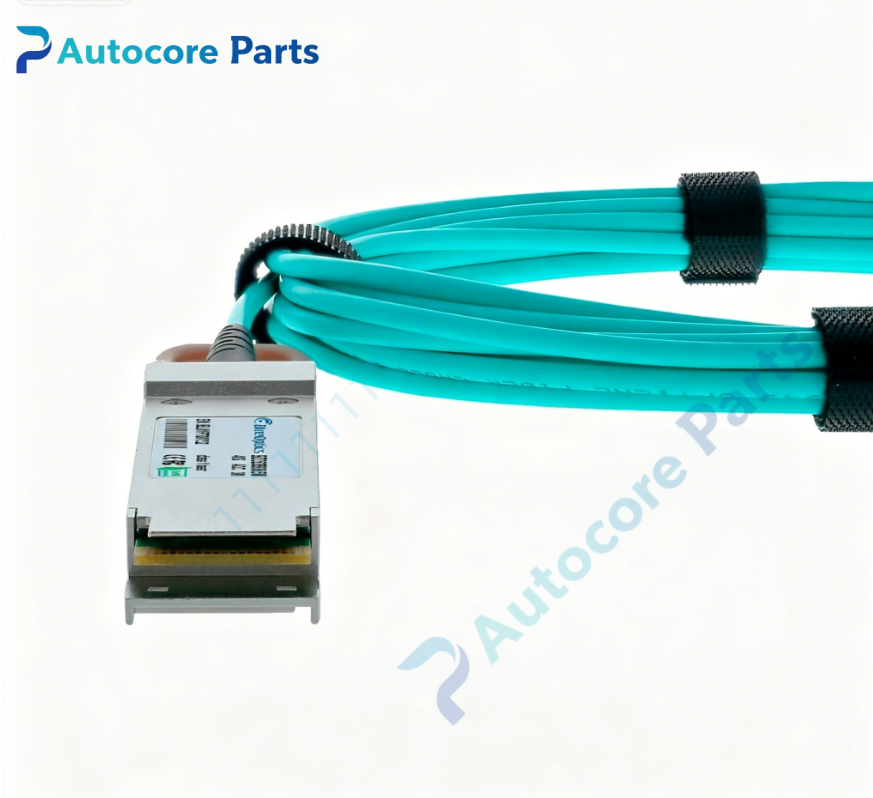

Extreme Networks 4050-00010 Active Optical Breakout Cable

Technical SpecificationsModel:4050-00010 Brand: Extreme Networks Product Type: QSFP+ to 4×LC Duplex 40G Active Optical Breakout Cable(AOC) Mounting: Plug into QSFP+ port of Extreme rack switch Operating temperature:0℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Speed:40GBASE-SR4, breakout to 4×10GBASE-SR Wavelength:850nm Fiber type: OM3 / OM4 multimode fiber Interface: QSFP+ male on one end, 4×LC duplex connectors on breakout end Digital monitoring: DDM / DOM Weight:0.31 kg

System compatibility4050-00010 is Extreme Networks 40G breakout active optical cable. Compatible with Extreme X620, X650, X670V, X460-G2, VSP7400 switches with QSFP+ ports. It converts one 40G QSFP+ port into four independent 10G LC fiber links for server downlink. Widely used for data center rack fan-out wiring and spare replacement.

Function4050-00010 integrates parallel optical transceivers inside the cable assembly. It splits 40G SR4 parallel optical lanes into four separate 10G transmission channels over multimode fiber. It supports DDM to monitor transmit optical power, receive power, module temperature and supply voltage. It triggers alarms for optical signal loss, over-temperature or module hardware fault. Used to replace defective 40G-to-LC breakout AOC for data center fan-out networking.

InstallationPower off chassis before installation. Insert QSFP+ main end into the switch QSFP+ slot. Connect four LC duplex fiber connectors to 10G ports on servers or secondary switches. Verify module recognition on ExtremeXOS/VOSS, check optical power and port breakout configuration before putting into production.

InterfaceQSFP+ edge connector, four LC duplex fiber connectors, internal multimode fiber assembly, DDM digital diagnostic interface for Extreme Networks 4050-00010.

FeatureOriginal Extreme Networks 40G breakout AOC, hot-pluggable,4-lane 40G to 4×10G fan-out,DDM real-time monitoring,low power consumption,compliant with IEEE802.3ae standard. This spare supports data center 40G port fan-out deployment.

DiagnosticModule undetected: check insertion, slot status and switch firmware compatibility. Port link down: verify LC fiber connection, optical power and port admin status. Link flapping: inspect fiber routing, cable bending and transceiver DDM readings.

Product Brief4050-00010 is Extreme Networks 40G QSFP+ to 4×LC duplex breakout active optical cable. It breaks one 40G port into four independent 10G LC fiber links, classic spare part for data center 40G fan-out network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
