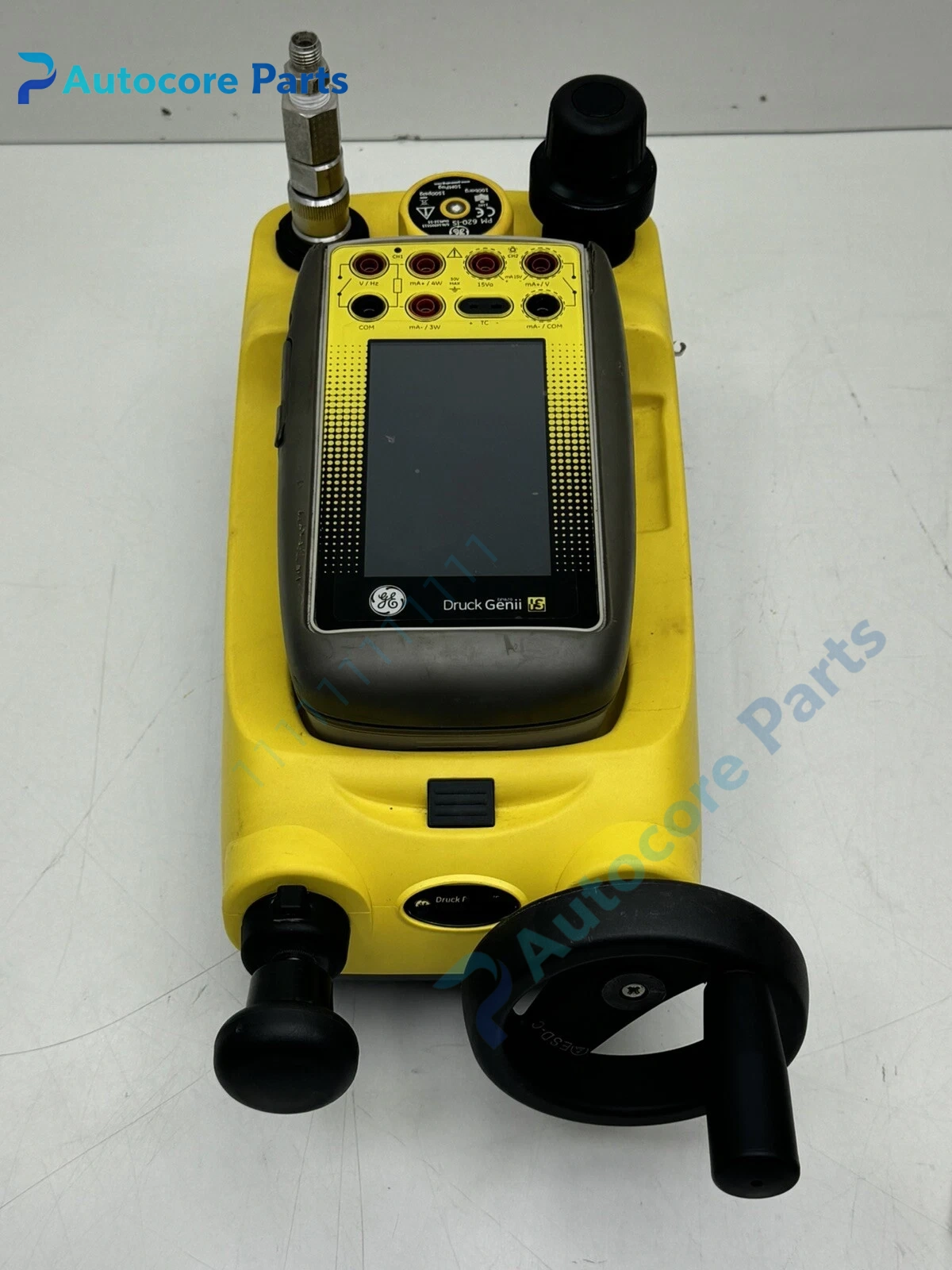

Druck DPI620G-IS-FF Genii IS Multifunction Calibrator Unit

Module Feature

DPI620G-IS-FF is the intrinsically safe version of Druck Genii series multifunction calibrator, FF stands for FOUNDATION Fieldbus communication option. It is a modular portable calibration host, compatible with PM620 interchangeable pressure modules and PV624 pressure control station. It can source and measure mA, mV, voltage, resistance, frequency, RTD and thermocouple signals, built-in loop power supply. It supports FOUNDATION Fieldbus device configuration, parameter read/write and diagnostic, also compatible with HART. 4.3-inch color touch screen, internal data logger, auto calibration wizard, hot-swap battery for hazardous zone operation. ATEX / IECEx certified for Zone 1, widely stocked as maintenance spare for SIS and FCS instrument loop calibration in hazardous process plant.

Working principle

The internal precision reference circuit outputs or captures analog process signals. When matched with pressure module, it reads pressure value for gauge, transmitter and pressure switch calibration. Fieldbus communication circuit establishes digital link with FF field instruments, downloads tag, range, PID and diagnosis parameters. The logger stores calibration records, and the built-in safety circuit meets intrinsic safe energy limitation for explosive atmosphere.

Onboard components

Main control CPU, precision signal reference board, FF/HART communication module, touch LCD display, signal terminal group, rechargeable intrinsic safe battery pack, internal flash memory, USB service port and rugged sealed enclosure.

LED indicators

LCD touch screen displays measured value, calibration result, fieldbus device information and alarm codes. LED indicators: Power, Communication, Battery status.

Hardware self‑diagnosis

Built-in supervision detects signal overload, battery low, communication error and internal reference drift. Calibration management and FF device configuration are completed by Druck Calibration Manager software.

Programming softwareCalibration Manager, used for calibration task creation, record storage, FF instrument parameter configuration, firmware upgrade and report export.

Electrical & Process Parameters

Model:DPI620G-IS-FF Brand:Druck (Baker Hughes) Device type:Genii IS intrinsically safe multifunction calibrator Function:Calibration, testing and digital communication configuration for pressure, temperature and FF/HART field instruments

Mechanical & Structure

Mounting:Handheld portable Protection class:IP54 Housing:Rugged reinforced plastic enclosure

Environmental

Operating temperature:-10℃ ~ +50℃ Storage temperature:-20℃ ~ +70℃ Ambient humidity:0~90% non‑condensing

Certification:CE, ATEX, IECEx Zone1, IEC61010 Status:Original Druck process calibration instrument spare

Installation

Confirm intrinsically safe rules before use in hazardous area. Select matched pressure module, connect test leads, establish FF bus connection, verify communication and signal accuracy after commissioning.

Interface

Analog signal terminals, FOUNDATION Fieldbus communication port, USB service port, external pressure module interface.

Diagnostic

Communication fail: FF bus termination missing, wrong address, bus power abnormal. Measurement deviation: Reference drift, lead resistance error, pressure module out of calibration. Battery alarm: Battery aging, cannot sustain intrinsic safe energy limit.

Product Brief

DPI620G-IS-FF calibrator, Druck Genii IS intrinsic safe multifunction calibrator with FOUNDATION Fieldbus for hazardous area instrument calibration.
