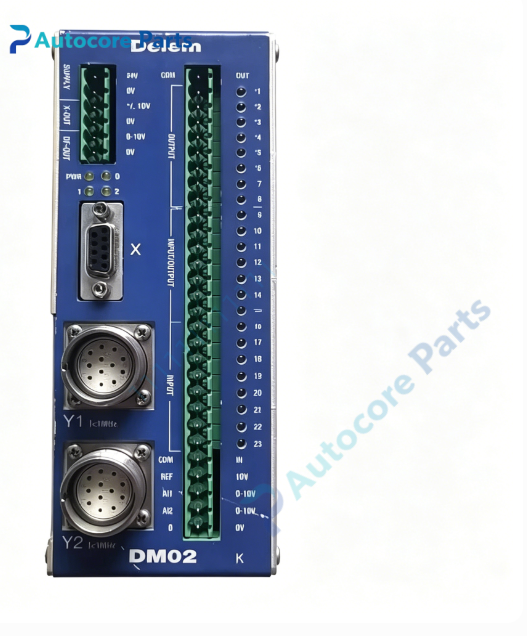

DELEM DM02-K CNC Press Brake Dual Axis Control Module

Technical Specifications

Model: DM02-K Brand: DELEM (Netherlands) Product Type: CNC Press Brake Dual Axis Control Module Mounting: Install inside electric cabinet of press brake Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Power supply: 24V DC Weight: 0.48 kg

System compatibility

DM02-K is a dedicated dual axis motion control module for DELEM press brake CNC systems. It communicates with DELEM DA series controllers, matches linear encoders and hydraulic proportional valve units, widely used in metal fabrication workshops for module replacement during bending machine overhaul.

Function

DM02-K serves as dual axis motion control unit of DELEM bending machine control system. It collects position feedback signals from two groups of linear encoders, executes dual axis closed-loop calculation, outputs analog control signals to hydraulic valves. It continuously monitors axis running status and triggers fault alarm signals once over-travel or pressure abnormalities are detected. It is used to replace damaged modules when the press brake loses dual-axis synchronous bending control.

Installation

Cut off main power supply before installation. Open the electrical cabinet and discharge residual voltage. Remove the old module, install DELEM DM02-K and fasten mounting screws. Connect bus port, encoder cables and hydraulic valve signal terminals. Check wiring definition, download matching machine parameters, carry out dual axis synchronization test before formal production.

Interface

Fieldbus communication port, dual analog output terminals, two channels encoder input ports, digital I/O terminals, status LED indicators for DELEM DM02-K module.

Feature

Original DELEM dual axis control module, anti-interference circuit design, high-precision dual-channel position sampling, stable bus communication, compact metal casing. This legacy spare part supports field repair of old DELEM hydraulic press brake systems.

Diagnostic

Module no response after power on: check 24V DC power supply and fuse for DM02-K. Dual axis synchronization deviation: verify encoder wiring polarity and machine parameter matching. Intermittent alarm popping: inspect cable shielding and cabinet grounding condition.

Product Brief

DM02-K is Dutch DELEM dual axis motion control module for hydraulic press brake. It executes dual-channel encoder signal acquisition and closed-loop axis control for sheet metal bending operation, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
