DELEM DM 602 Motion Control Axis Module

Technical SpecificationsModel: DM 602 Brand: DELEM (Netherlands) Product Type: Dual-Axis Motion Control Module Mounting: DIN rail mounting inside press brake electrical cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Power supply: 24V DC Weight: 0.95 kg

System compatibilityDM 602 is classic dual-axis motion control module of DELEM Modusys system. It communicates with DA series CNC controllers via HSB high-speed bus, compatible with DA52,DA53,DA56,DA58,DA61,DA65 controllers. It connects dual linear encoders and hydraulic proportional valves, widely used for legacy electro-hydraulic synchronous press brake maintenance and spare replacement.

FunctionDM 602 performs real-time closed-loop position calculation for two bending axes. It receives position feedback signals from two linear encoders, calculates position deviation and outputs analog control signals to hydraulic proportional valves to realize Y1/Y2 ram synchronization control. It supports crowning compensation signal output. It continuously monitors encoder signal quality, HSB bus communication and power supply state, sends fault alarm messages to main controller once signal loss or axis synchronization error occurs. It is used to replace defective axis modules when press brake loses Y1/Y2 synchronous bending control.

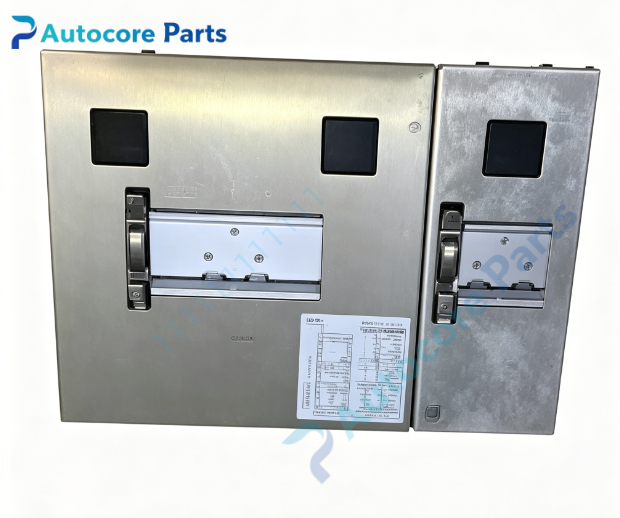

InstallationCut off main power supply before installation. Mount DM 602 on DIN rail and lock the module. Connect 24V DC power, HSB bus cable, dual encoder cables and hydraulic valve analog terminals. Check wiring definition, upload machine parameters, complete axis homing and test run before formal bending production.

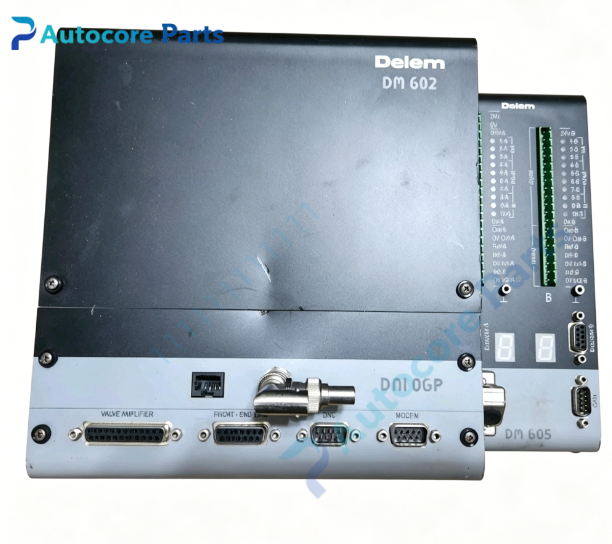

InterfaceHSB fieldbus port, two-channel encoder input connectors, analog output terminals for hydraulic valves, digital I/O terminals, LED status indicators for DELEM DM 602 module.

FeatureOriginal DELEM Modusys dual axis module, high-speed HSB bus real-time data transmission, high precision position sampling, built-in axis monitoring and self-diagnostic function, metal housing, strong anti-interference performance for industrial cabinet environment. This legacy spare part supports field repair of DELEM electro-hydraulic press brake systems.

DiagnosticNo power indicator: check 24V DC power supply and module fuse for DM 602. Y1 Y2 axis synchronization deviation: verify encoder wiring, shielding and machine parameter configuration. HSB bus communication error: inspect bus cable connection, terminal resistor and grounding condition.

Product BriefDM 602 is Dutch DELEM Modusys dual-axis motion control module for electro-hydraulic synchronous press brake. It collects dual linear encoder feedback and outputs analog valve signals for Y1/Y2 ram synchronous closed-loop control, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
