DELEM DAC310 CNC Shearing Machine Controller

Technical Specifications

Model: DAC310 Brand: DELEM (Netherlands) Product Type: CNC Controller for Hydraulic Shearing Machine Mounting: Panel mounting on shear machine cabinet Operating temperature: 0℃ ~ +50℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 18~28V DC, 15W Weight: 2.6 kg

System compatibility

DAC310 is a compact dedicated NC controller for hydraulic guillotine shearing machines. It supports servo, single-speed or two-speed AC/DC drive systems, matches incremental encoders and hydraulic I/O units, widely used in metal fabrication workshops for controller replacement during old sheet metal shear overhaul.

Function

DAC310 serves as the core backgauge positioning control unit of hydraulic shearing machine. It stores multi-step cutting programs, controls backgauge closed-loop positioning with retract function and workpiece stock counting. It outputs analog signals for gap adjustment and digital signals for machine logic control. It monitors machine running status and triggers alarm signals once over-travel or signal faults are detected. It is used to replace damaged controllers when the guillotine shear cannot complete backgauge positioning and cutting programming.

Installation

Cut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DAC310 and lock fixing fasteners. Connect 24V DC power, encoder cables, analog signal lines and digital I/O terminals. Check wiring definition, upload machine parameters, perform trial cutting test before formal production.

Interface

Encoder input port, analog input & output terminals, digital I/O terminals, RS232 service communication port, status LED indicators for DELEM DAC310 controller.

Feature

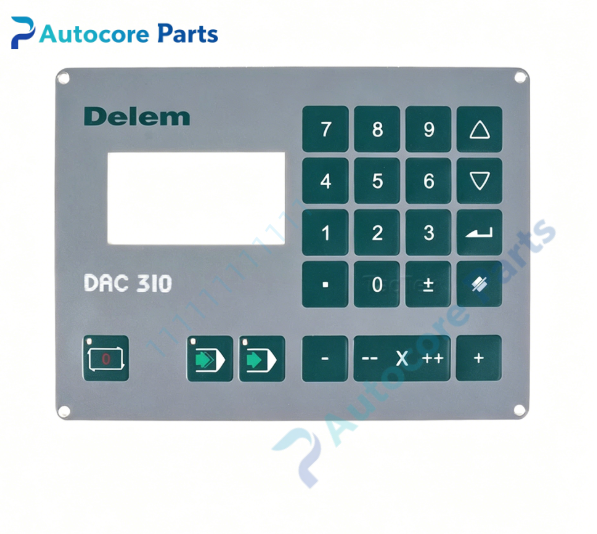

Original DELEM compact shear controller, 128×64 STN monochrome LCD display, physical keypad operation, simple multi-step programming, compatible with servo/inverter/AC drive, compact panel housing. This legacy spare part supports field repair of old hydraulic guillotine shear systems.

Diagnostic

No display after power on: check 24V DC power supply and power fuse for DAC310. Backgauge positioning deviation: verify encoder wiring polarity and machine parameter setting. Intermittent signal alarm: inspect cable shielding and cabinet grounding condition.

Product Brief

DAC310 is Dutch DELEM compact NC controller for hydraulic guillotine shearing machine. It executes backgauge axis positioning and multi-step cutting programming for sheet metal shearing operation, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
