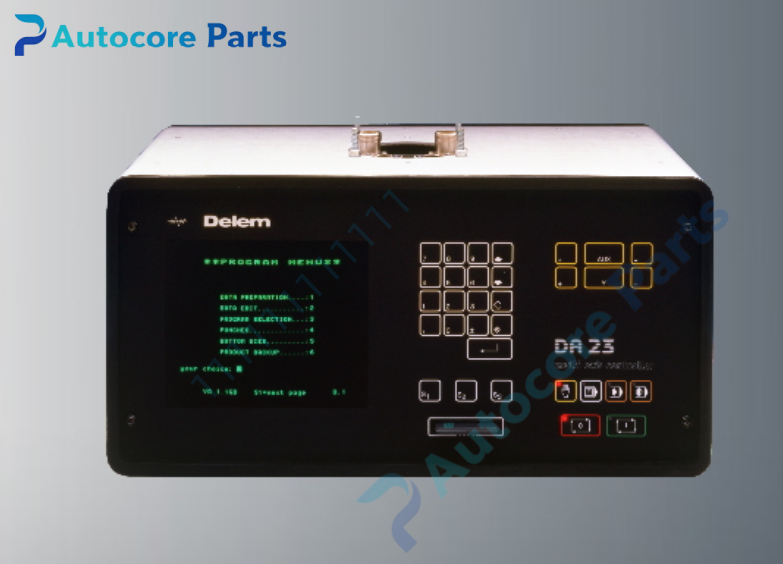

DELEM DA-23 CNC Press Brake Controller

Technical Specifications

Model: DA-23 Brand: DELEM (Netherlands) Product Type: CNC Press Brake Controller Mounting: Panel mounting on bending machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 4.0 kg

System compatibility

DA-23 is an economical entry-level numerical CNC controller for legacy hydraulic press brakes. It connects with DELEM DM series axis modules via HSB bus, suitable for simple torsion bar bending machines, widely used for old bending machine maintenance and spare replacement in sheet metal workshops.

Function

DA-23 serves as basic numerical operation control unit of hydraulic press brake. It supports simple numerical position programming, stores multiple bending programs, tool and material parameters. It supports up to 2 axes control including Y and X axis. It monitors ram position and travel limit signals, triggers alarm signals once over-travel or signal faults are detected. It is used to replace defective controllers when the press brake cannot run basic numerical bending programming.

Installation

Cut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DA-23 and lock fixing fasteners. Connect 24V DC power, HSB bus cable, encoder cables and digital I/O terminals. Check wiring definition, upload machine parameters, perform axis homing and trial bending test before formal production.

Interface

RS232 communication port, encoder input ports, digital I/O terminals, analog valve output terminals, LED status indicators for DELEM DA-23 controller.

Feature

Original DELEM early model numerical controller, monochrome LCD display, membrane numeric keypad, simple multi-step programming, power-off position memory, built-in self-diagnostic function, low power consumption. This legacy spare part supports field repair of old DELEM hydraulic press brake systems.

Diagnostic

No display after power on: check 24V DC power supply and power fuse for DA-23. Axis positioning inaccuracy: verify encoder wiring polarity and machine parameter setting. HSB bus communication error: inspect bus cable connection, shielding and grounding condition.

Product Brief

DA-23 is Dutch DELEM entry-level numerical CNC controller for hydraulic press brake. It executes simple numerical programming and 2-axis closed-loop control for basic sheet metal bending jobs, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
