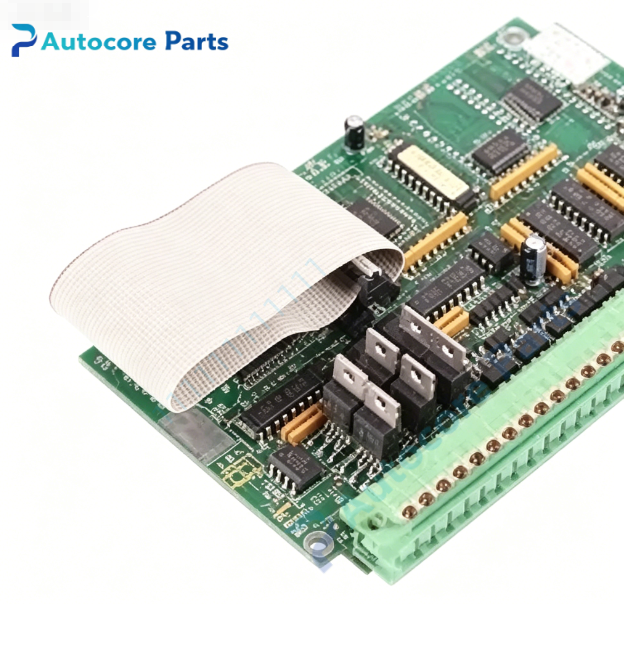

DELEM 7396-005/A Digital I/O Board

Technical SpecificationsModel:7396-005/A Brand: DELEM (Netherlands) Product Type: Digital I/O Interface Board Mounting: DIN rail mounting inside press brake electrical cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP00 (bare PCB circuit board) Power supply: 24V DC Weight: 0.60 kg

System compatibility7396-005/A is classic DELEM Modusys digital I/O board. It communicates with DA series controllers and DM axis modules via HSB bus, compatible with DA22,DA24e,DA52,DA56,DA58,DA65. It handles machine safety signals, limit switches, valve enable and relay outputs, widely used for legacy hydraulic press brake maintenance and spare replacement.

Function7396-005/A collects digital input signals from machine safety circuits, over-travel limit switches, foot pedal and emergency stop. It outputs digital control signals for hydraulic valve enable, relay and machine status indication. It transmits all digital signals between main CNC controller and machine actuators. It continuously monitors safety signal status, triggers safety interlock once emergency stop or limit signal is activated. It is used to replace defective I/O boards when press brake safety signals or digital outputs malfunction.

InstallationCut off main power supply before installation. Mount 7396-005/A on DIN rail and lock the board. Connect 24V DC power, HSB bus cable, limit signal wires and digital output terminals. Check wiring definition, verify safety loop continuity, upload machine parameters and perform safety test before formal production.

InterfaceHSB fieldbus port, multi-channel digital input terminals, digital relay output terminals, 24V power terminals, LED status indicators for DELEM 7396-005/A board.

FeatureOriginal DELEM Modusys I/O board, built-in safety signal interlock circuit, multi-channel isolated digital input and output, self-diagnostic function for signal monitoring, compact PCB design, stable signal acquisition for bending machine safety control. This legacy spare part supports field repair of old DELEM hydraulic press brake systems.

DiagnosticNo LED indicator: check 24V DC power supply and board fuse for 7396-005/A. Safety interlock alarm: check emergency stop, limit switch wiring and I/O board input channel. Controller cannot read machine signals: inspect HSB bus wiring, connector pins and cabinet grounding condition.

Product Brief7396-005/A is Dutch DELEM Modusys digital I/O interface board for hydraulic press brake. It collects machine safety and limit signals, provides digital output control, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
