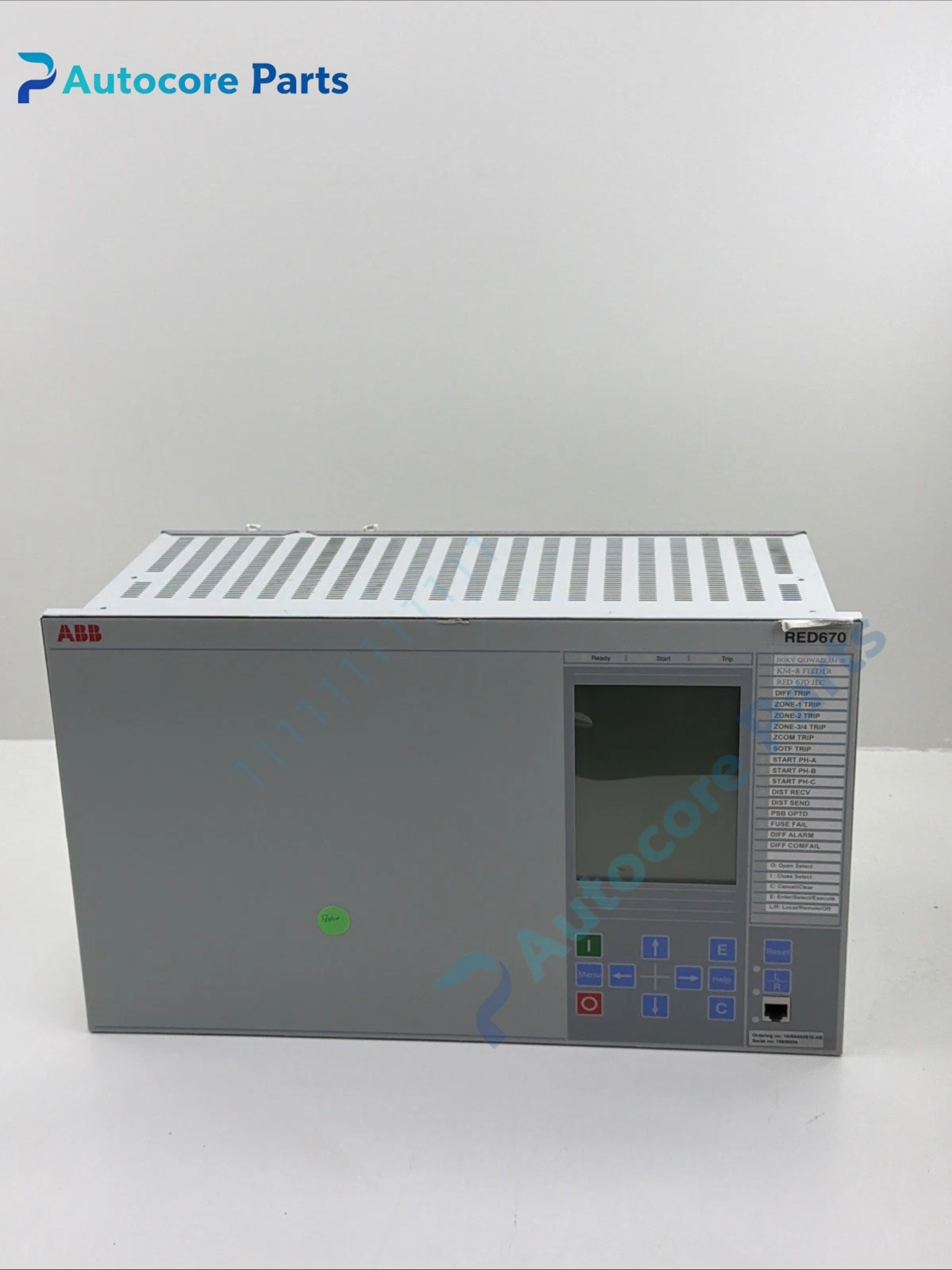

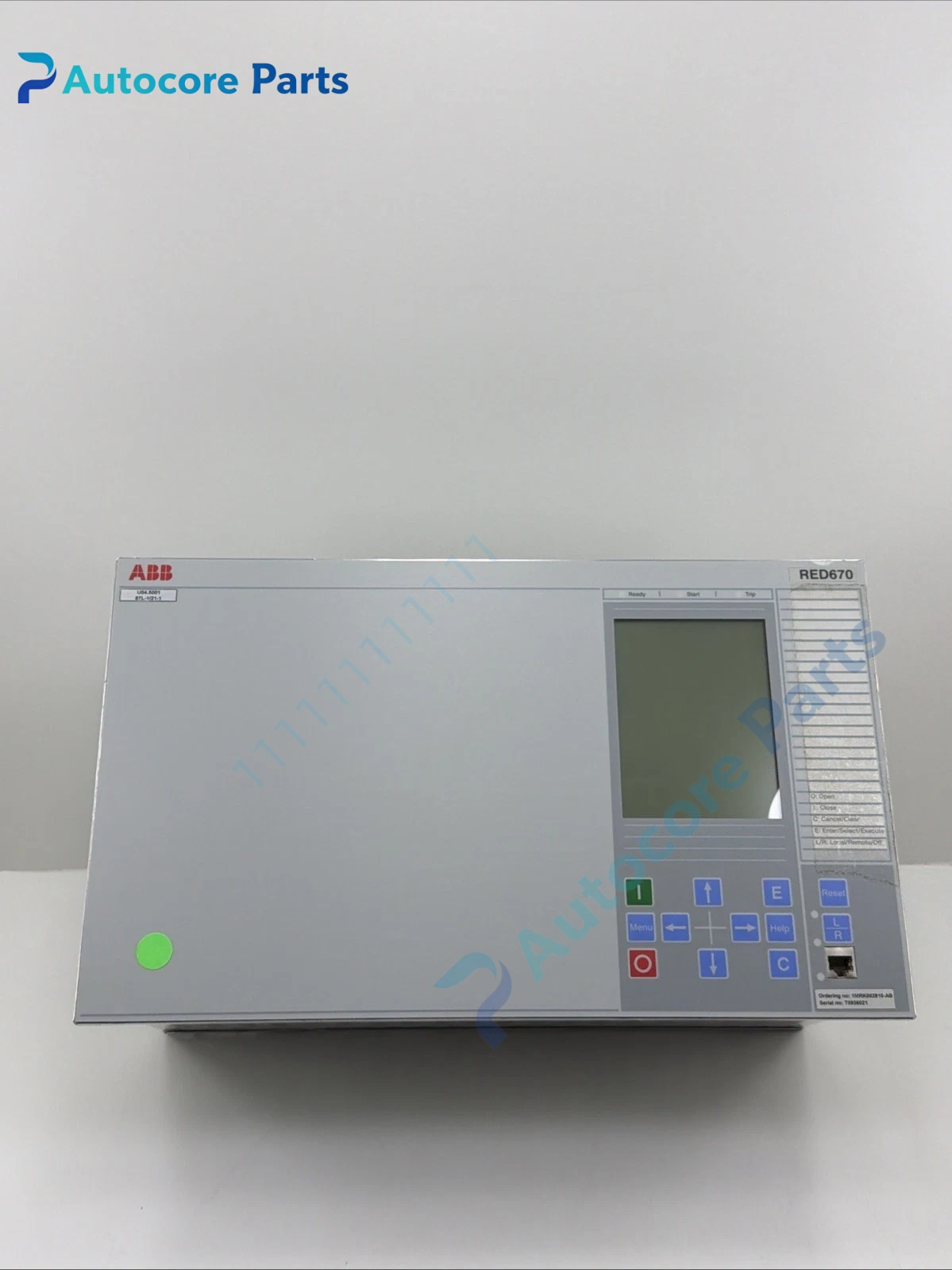

ABB 1MRK002810 RED670 Protection Relay Unit

Module Feature

1MRK002810 is the order base number of ABB Relion RED670 line differential protection IED.

It provides segregated phase differential, distance, overcurrent, breaker failure and restricted earth fault protection. It supports IEC61850, GOOSE, 103 and DNP3 communication, with built-in fault recorder and disturbance record function. It is widely used for high voltage overhead line and underground cable protection in power grid and industrial substation.

Working principle

The relay samples current signals from both ends of protected line via CT.

It compares current vector data to identify internal fault, sends trip command to circuit breaker when differential threshold is exceeded. It records fault waveform, fault type and time stamp for post-fault analysis.

Onboard components

Main processing unit, CT signal input board, Ethernet communication module, LCD touch panel, relay output contacts, DC power supply circuit.

LED indicators

Front LEDs show power status, run state, trip alarm and communication link status.

Hardware self‑diagnosis

Continuous self-monitoring detects CT circuit break, power anomaly, internal hardware error and communication interruption, alarm messages display on local panel.

Programming software

ABB PCM600, used for protection configuration, setting parameter, disturbance record reading and relay firmware upgrade.

Electrical & Process Parameters

Model:1MRK002810 Brand:ABB Device type:Line differential protection IED Aux supply:90–250V DC CT rating:1A / 5A Function:Transmission line differential, distance and backup overcurrent protection

Mechanical & Structure

Mounting:Panel cutout or 19 inch rack mounting

Protection class:IP20

Housing:Metal relay enclosure

Environmental

Operating temperature:-25℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Ambient humidity:5~95% non‑condensing

Certification:CE, IEC, UL

Status:Original ABB substation protection spare

Installation

Install relay in control cabinet, connect CT wiring, DC supply and communication cable.

Set line parameters and protection thresholds in PCM600, test tripping logic and communication channel before commissioning.

Interface

CT input terminals, binary I/O terminals, Ethernet port, rear communication slot.

Diagnostic

Differential alarm: Unbalanced line current, wrong CT polarity or communication channel loss.

Breaker failure alarm: Circuit breaker refuses to open after trip command.

No communication: Wrong IP address or fiber link broken.

Product Brief

ABB 1MRK002810 RED670 line differential protection relay, Relion 670 IED for transmission line fault protection and monitoring.
