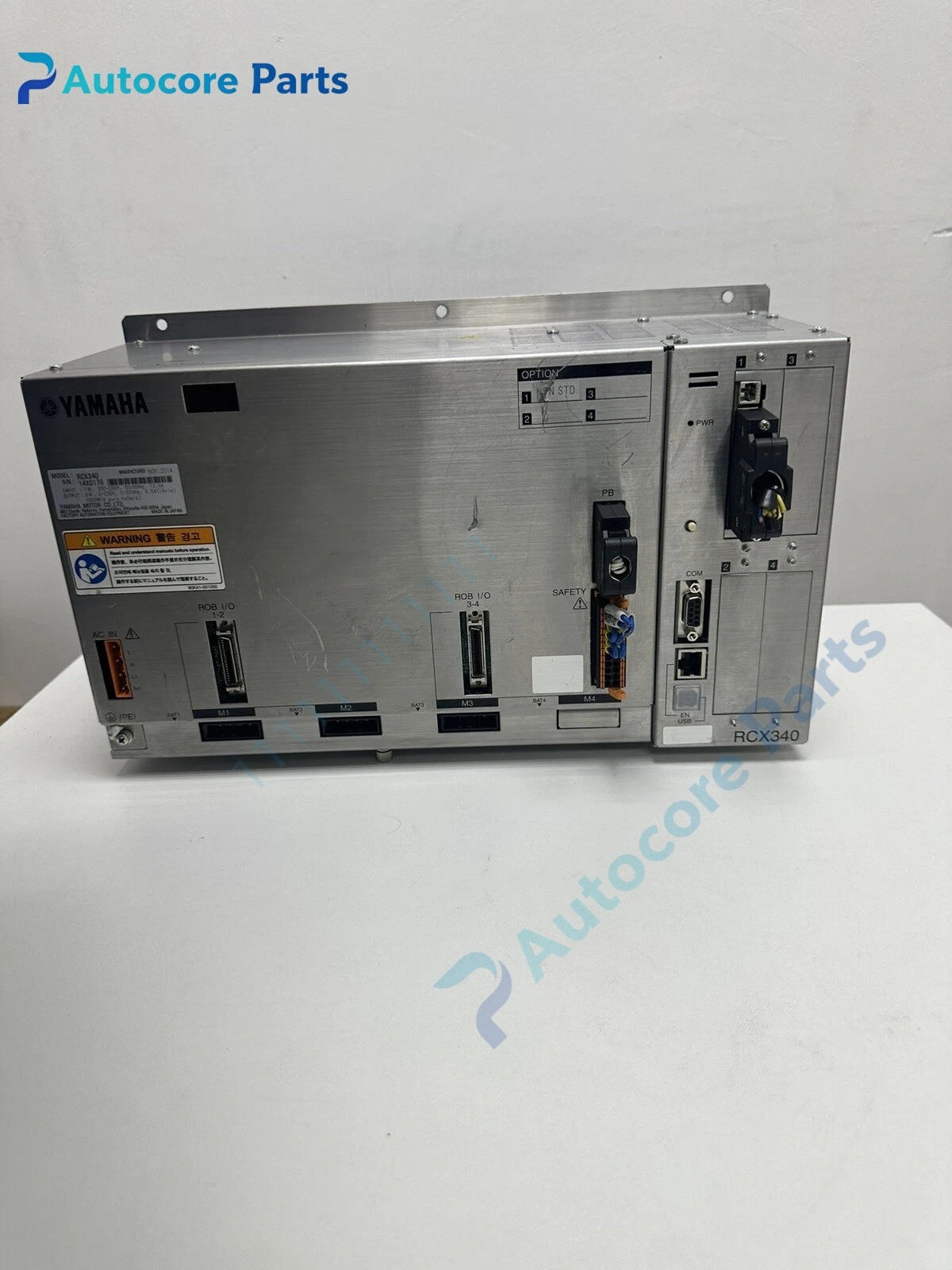

Yamaha RCX340 Robot Controller Unit

Feature & Principle

This robot controller adopts high-speed servo motion engine, controls robot position, speed and trajectory according to programmed instructions. It supports multi-task operation and inter-controller high-speed linkage, exchanges data with PLC through fieldbus, widely used for pick-and-place, assembly and sorting stations.

Specifications

Model: RCX340 Brand: Yamaha Axis control: Max 4 axes, expandable to 16 axes by YC-LINK/E Power supply: Single phase AC200~230V Communication: PROFINET, EtherCAT, Ethernet/IP, CC-Link Total motor capacity: 1600W Dimension: W355 × H195 × D130mm Weight: 6.2kg Protection: IP20 Certification: CE

Components & Diagnostics

Main control board, servo drive unit, I/O terminal, communication port, status LED. Common faults: servo alarm, communication disconnection, program loss, power failure.

Product Brief

RCX340 robot controller, Yamaha robot spare widely used in electronics assembly and automatic handling equipment.
