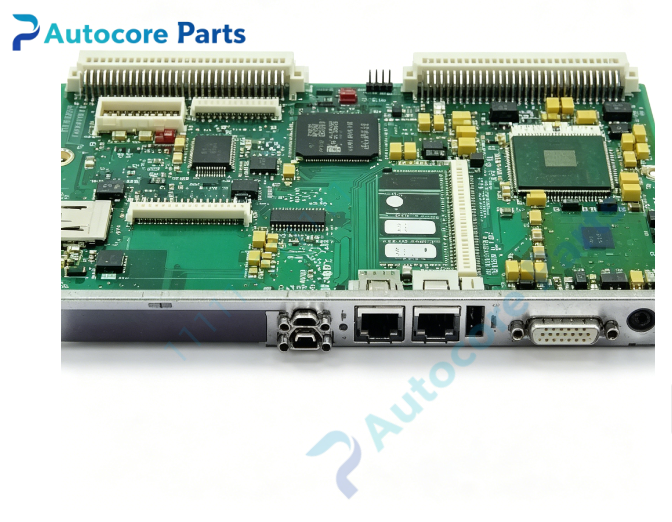

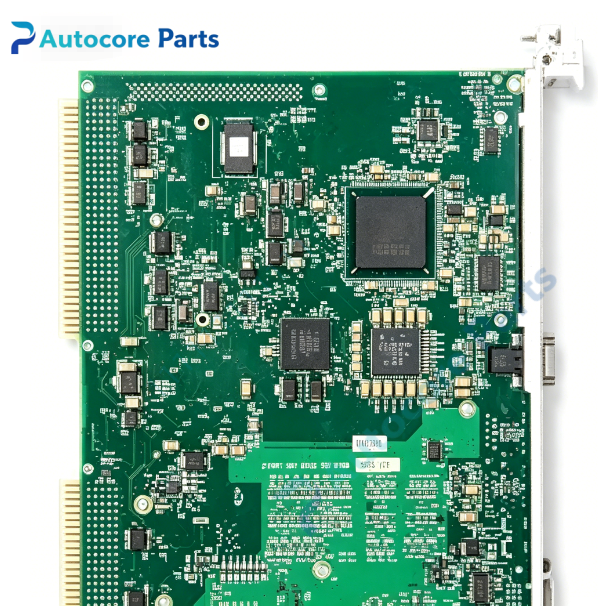

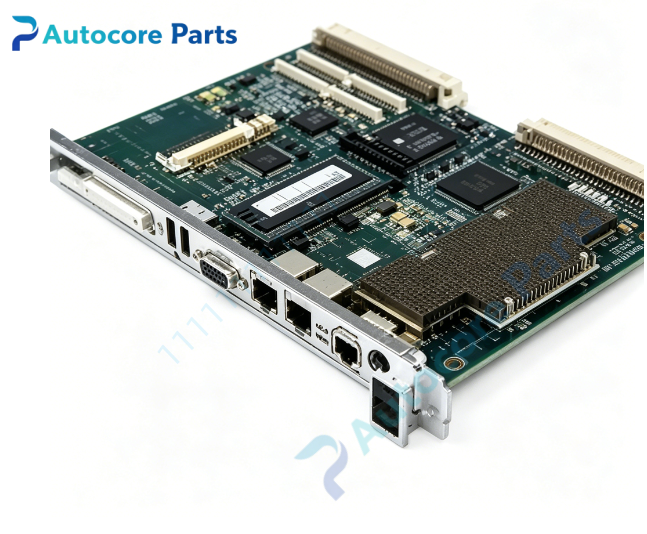

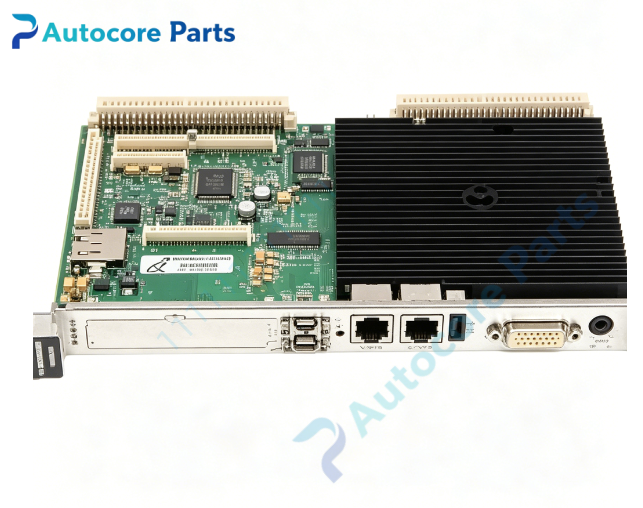

VMIC VMIVME-7805 Single Board Computer

Module Feature

VMIC VMIVME-7805 is a single-slot 6U VMEbus single board computer powered by Intel Pentium 4-M mobile processor with Intel 852GM chipset, supporting up to 2.2 GHz CPU speed. It carries one PMC mezzanine expansion site for adding reflective memory or custom I/O modules. Equipped with dual Ethernet controllers: 1 gigabit Ethernet and one 10/100 fast Ethernet. Integrated graphics controller with DVI-I output supporting resolution up to 1600×1200. Onboard 2 × 16550 compatible serial COM ports, USB2.0 port, PS/2 keyboard/mouse interface, real-time clock and programmable hardware watchdog timer. Supports CompactFlash and IDE storage via VME P2 connector, and remote network boot function. Passive heat sink cooling design, rugged Eurocard construction, suitable for real-time simulation, industrial process control, test measurement and aerospace embedded systems.

Working principle

The Pentium 4-M processor executes embedded operating system and user application code. The PCI-to-VME bridge implements VMEbus master and slave functions for data exchange with other VME modules in the chassis. The PMC slot extends board function via mezzanine cards. Dual Ethernet controllers handle network communication, and integrated GPU drives DVI display. Flash BIOS supports firmware upgrade and boot configuration; watchdog timer automatically resets the board on software crash to improve system reliability.

Onboard components

Intel Pentium4-M CPU, Intel 852GM chipset, DDR SDRAM socket, integrated graphics chip, gigabit & 10/100 Ethernet PHY, dual UART serial controller, flash BIOS chip, watchdog logic, PMC connector, VME J1/J2 transceivers, front panel I/O connectors, status LED array.

LED indicators

Front panel LEDs for power, CPU heartbeat, gigabit Ethernet link/activity, 10/100 Ethernet link/activity and system fault warning.

Hardware self-diagnosis

Visual inspection of PCB, front panel ejectors and soldering joints; power-on POST self-test; memory read/write cyclic verification; VME register access test; Ethernet loopback test; serial port communication test; watchdog timer and BIOS version check.

Programming software

Supports VxWorks, Linux, Windows XP embedded OS; VMIC VME device driver suite, BIOS configuration tool and board diagnostic firmware.

Electrical & Process Parameters

Model: VMIVME-7805 Device type: 6U VMEbus single board computer Bus standard: VMEbus Rev C.1 Processor: Intel Pentium 4-M Memory: Up to 1 GB PC2100 DDR SDRAM Control mode: VME master / slave operation, hardware watchdog Power supply: +5 V from VME backplane Cooling: Passive convection cooling Protection: Over current, ESD protection, watchdog auto-reset Mounting: Standard 6U VME front panel ejector locking Protection class: Conformal coating optional

Mechanical & Structure

Mounting: Standard single-slot 6U VME Eurocard Protection class: PCB with optional conformal coating

Environmental

Operating temperature: 0℃ ~ +50℃ with sufficient airflow Storage temperature: -25℃ ~ +80℃ Ambient humidity: 10~90% non-condensing Certification: CE compliant Status: VMIC high performance VME single board computer

Installation

Follow ESD safety procedure before handling. Fully power off VME chassis. Insert VMIVME-7805 into empty 6U VME slot and lock front panel ejector latches. Connect front panel DVI, Ethernet, serial, USB and PS/2 peripherals. Enter BIOS to configure boot device, watchdog and network boot options. Install OS and VMIC VME drivers, run full board diagnostic before commissioning.

Interface

VME J1/J2 backplane connector, PMC mezzanine site, DVI-I video, 10/100 RJ45 Ethernet, Gigabit RJ45 Ethernet, dual RS232 serial ports, USB2.0, PS/2 keyboard/mouse, IDE/CompactFlash via P2 rear I/O.

Diagnostic

Board fails POST: faulty SODIMM memory, defective CPU chip, insufficient backplane power. VME communication timeout: poor backplane contact, bus termination missing, PCI-VME bridge hardware fault. Ethernet no link: bad network cable, PHY chip damage, incorrect duplex configuration. Watchdog fails to trigger: wrong BIOS watchdog parameter setup.

Product Brief

VMIVME-7805 VMIC 6U VME single board computer,Pentium4-M CPU,onboard dual Ethernet and PMC site,for high bandwidth embedded simulation,industrial control and test measurement VME chassis systems.
