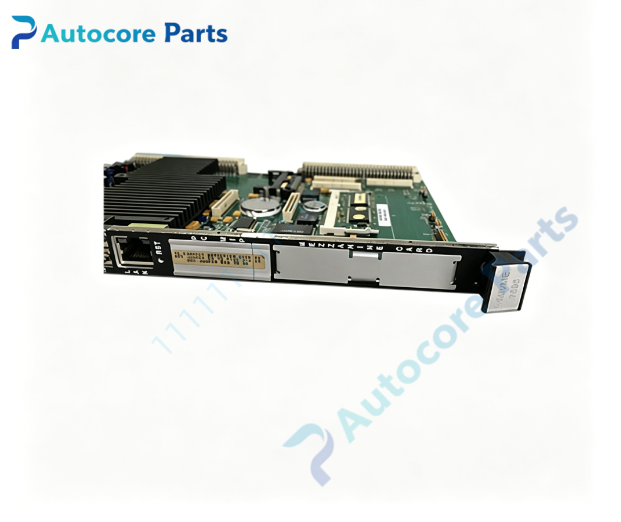

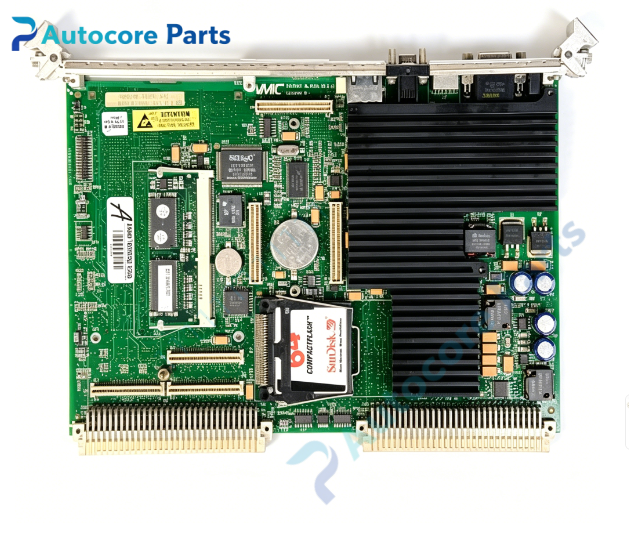

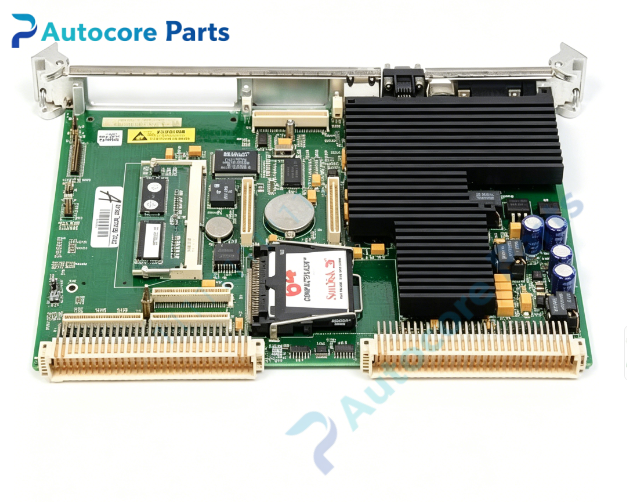

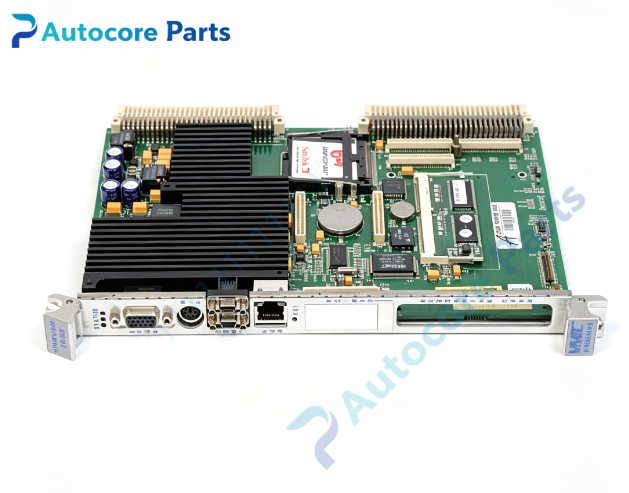

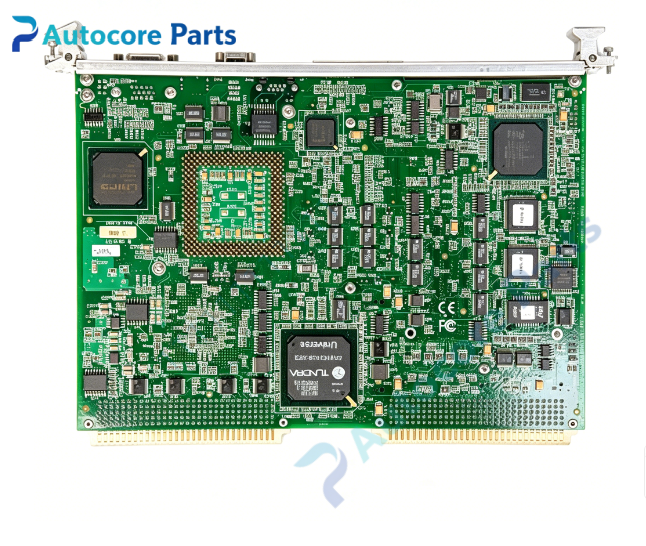

VMIC VMIVME-7698-345 Single Board Computer

Module Feature

VMIC VMIVME-7698-345 is a 6U single-slot VME64 single-board computer built around Socket 370 Intel Celeron processor with MMX technology. It features dual-ported DRAM accessible by both local CPU and VMEbus master, onboard AGP SVGA graphics controller, 10/100 fast Ethernet, dual 16550 serial ports, Ultra DMA storage controller and PS/2 keyboard/mouse interface. Flash BIOS supports firmware field upgrade. Rugged 6U VME form factor with shock and vibration resistance, designed for high-reliability embedded control, simulation, test and aerospace applications.

Working principle

The onboard Celeron processor executes application and real-time operating system code. Local memory is dual ported so VMEbus master devices can directly read/write shared memory area for inter-board data exchange. Onboard peripherals including Ethernet, serial ports and video controller are mapped into CPU address space. The VME64 bus interface implements master/slave function to communicate with other VME modules in the chassis. Flash memory stores system BIOS and boot firmware.

Onboard components

Intel Celeron Socket370 CPU, dual-ported SDRAM, AGP SVGA video chip, fast Ethernet controller, UART serial controllers, flash BIOS chip, VME64 J1/J2 bus transceivers, front panel I/O connectors, status LED array.

LED indicators

Front panel LEDs for power, CPU activity, Ethernet link/activity, VME bus access and fault warning.

Hardware self-diagnosis

Visual inspection of PCB, front panel and connectors; power-up POST self-test; memory read/write test; VMEbus register access test; Ethernet loopback test; serial port communication test; BIOS version verification.

Programming software

Supports VxWorks, Linux and Windows embedded OS; VMIC VME device driver suite, BIOS configuration utility, board diagnostic firmware.

Electrical & Process Parameters

Model: VMIVME-7698-345 Device type: 6U VME64 single board computer Bus standard: VME64 (J1/J2 connectors) Processor: Intel Celeron Socket370 Memory: Onboard dual ported SDRAM Control mode: VME master / slave operation Power supply: +5 V from VME backplane Cooling: Convection / conduction cooling Protection: Over current, ESD protection Mounting: 6U VME front panel locking Protection class: Conformal coating optional

Mechanical & Structure

Mounting: Standard 6U VME single slot board Protection class: PCB with optional conformal coating

Environmental

Operating temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: VMIC VME64 single board computer

Installation

Follow ESD safety procedure before handling. Power off VME chassis completely. Insert board into vacant 6U VME slot and tighten front panel ejector latches. Connect front panel Ethernet, serial, keyboard/mouse and video cables as required. Boot system and enter BIOS to configure memory and peripheral settings. Load OS and VME drivers, run board diagnostic before commissioning.

Interface

VME J1/J2 backplane connector, 10/100 RJ45 Ethernet, 2 x RS232 serial port, SVGA video, PS/2 keyboard and mouse, storage I/O via P2 connector.

Diagnostic

Board fails POST: faulty CPU/DRAM, damaged backplane connector, insufficient power. VME communication abnormal: incorrect slot mapping, bus termination issue, damaged VME transceivers. Ethernet no link: bad cable, wrong duplex setting, PHY hardware fault. Serial port failure: wrong baud/parity setting, front connector damage.

Product Brief

VMIVME-7698-345 VMIC 6U VME64 single board computer,dual port memory,onboard Ethernet and graphics,for embedded real-time control,aerospace test and VME chassis simulation systems.
