VMIC VMIVME-7589A Single Board Computer

Module Feature

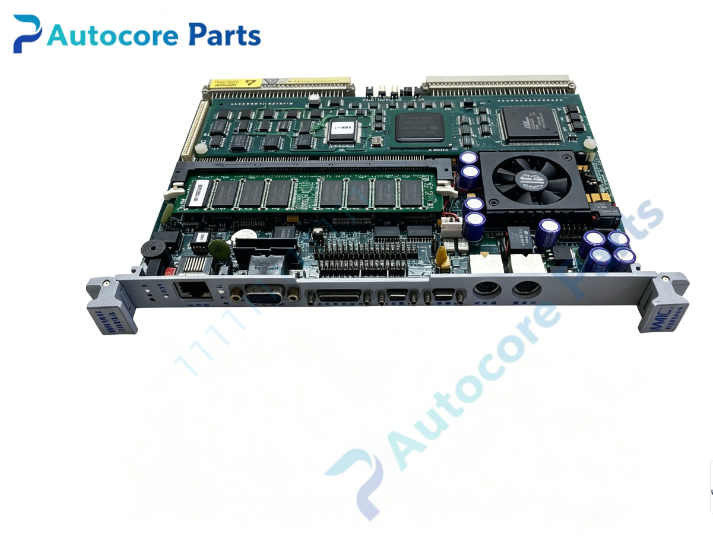

VMIVME-7589A is a single-slot 6U VMEbus single board computer (SBC) developed by VMIC(GE Fanuc),based on Pentium-class processor,designed as the main controller for standard VME / VME64 chassis. It can act as VME system master to access all I/O modules installed on backplane. Onboard memory supports up to 512 MB DDR RAM,equipped with compact flash / IDE storage interface for system boot and local data storage. Front panel integrated rich I/O: dual 10/100 Mbit Ethernet ports,SVGA video output,dual RS232/422 serial ports,USB port and PS/2 keyboard & mouse connector. VME bus supports A16/A24/A32 addressing and D08/D16/D32,BLT block transfer. Battery-backed SRAM retains critical system parameters after power loss. Built-in BIT diagnostic monitors CPU,memory,power rail and peripheral interfaces,status registers available for system software reading. Rugged Eurocard PCB with conformal coating,shock and vibration screened for power plant cabinet environment,widely used in gas/steam turbine VME control host,aerospace ground test bench,hardware-in-loop real-time simulation and industrial distributed data acquisition chassis.

Working principle

Pentium CPU runs real-time OS and user application program. As VME bus master,it issues bus commands to read/write all VME slave I/O boards. Onboard north/south bridge handles memory,storage and peripheral communication. Front panel I/O controller manages network,display and serial port data transmission. BIT circuit executes memory test,register check and peripheral loopback test during boot-up. VME FPGA performs VME bus arbitration,address decoding and block data transfer. Backup SRAM keeps configuration data safe during power outage.

Onboard components

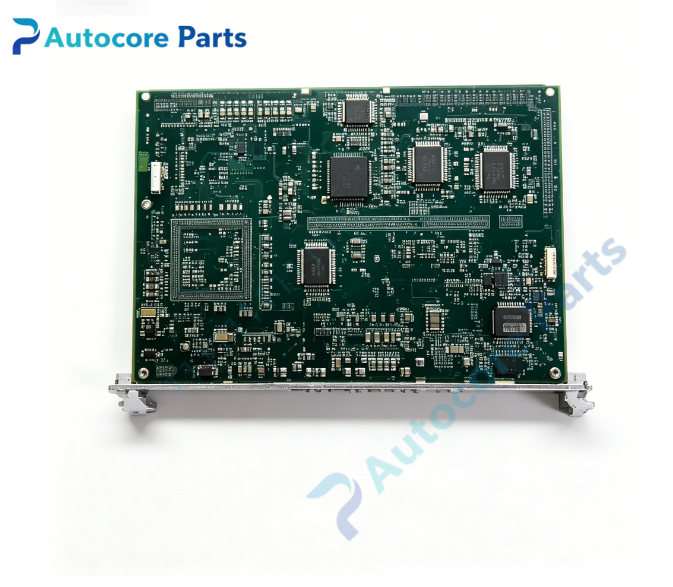

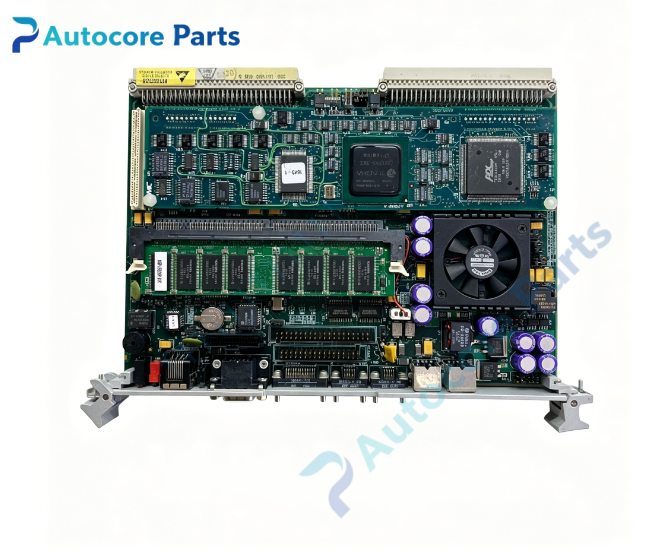

Pentium-class processor,memory controller,512 MB max DDR RAM bank,battery-backed SRAM,dual Ethernet controller,SVGA graphics chip,serial & USB interface logic,CompactFlash / IDE controller,BIT self-test circuit,VME J1/J2 edge connector,front-panel multi-port I/O connector,multi-status LED array.

LED indicators

Front panel LED indicators for board power,Ethernet link/activity and module fault alarm.

Hardware self-diagnosis

Visual inspection of PCB,components and solder joints;board ID register readback verification;RAM full read/write test;Ethernet and serial port loopback verification;VME A32/BLT bus communication test.

Programming software

VMIC SBC driver library and BSP package,supports VxWorks,Linux and QNX real-time operating systems;BSP includes VME bus driver,network and storage support.

Electrical & Process Parameters

Model: VMIVME-7589A Brand: VMIC Device type: 6U VMEbus Pentium single board computer module Bus standard: VME64, A16/A24/A32 addressing, D08/D16/D32, BLT block transfer Processor: Pentium-class Max RAM:512 MB DDR Storage: CompactFlash / IDE interface Front I/O:2 × 10/100 Ethernet,SVGA,dual serial,USB,PS/2 Control mode: VME master / slave operation,battery-backed SRAM,BIT built-in self-test,multi-peripheral integration Power supply: +5 V, +12 V, -12 V from VME backplane Cooling: Forced air cooling Protection: Overvoltage protection,ESD protection,battery data retention Mounting: Standard single-height 6U VME front panel ejector locking Protection class: PCB with optional conformal coating

Mechanical & Structure

Mounting: Single-slot 6U VME Eurocard Protection class: PCB with optional conformal coating

Environmental

Operating temperature:0℃ ~ +55℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: VMIC 6U VME Pentium single board computer

Installation

Follow ESD safety procedure before handling.Fully power off VME chassis.Insert VMIVME-7589A into vacant 6U VME slot and lock front panel ejector latches.Connect display,network and serial cables to front panel I/O ports,install CF card for OS boot.Power on chassis,load corresponding BSP and run BIT diagnostic before commissioning.

Interface

VME J1/J2 backplane connector,front-panel multi I/O connector,storage interface pins,fault status register pins.

Diagnostic

Board undetected: poor VME backplane contact,damaged edge connector or incorrect VME arbitration setting. Boot failure: corrupted CF card image or RAM fault. Ethernet no link: wrong cable type or PHY hardware failure. BIT memory test fail: defective RAM chip or memory slot contact issue.

Product Brief

VMIC VMIVME-7589A single height 6U VME single board computer,Pentium-class CPU with VME64 master function,onboard Ethernet/VGA/serial/USB interfaces,works as VME chassis main controller for turbine control and hardware-in-loop simulation real-time systems.
