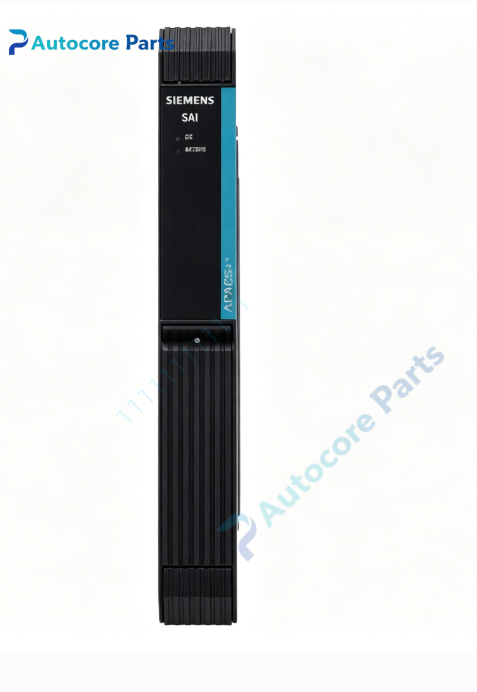

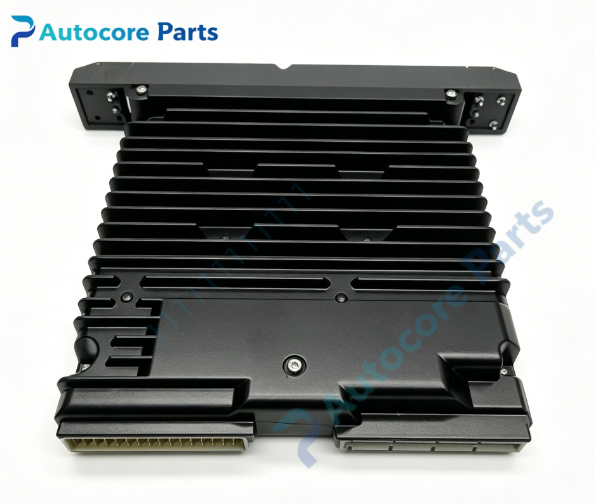

SIEMENS MOORE 39SAIAAN Standard Analog Input Module

Technical SpecificationsModel:39SAIAAN Brand:SIEMENS MOORE Product Type:SAI Standard Analog Input Module System:APACS+ / QUADLOG DCS System Power Supply:24V DC Signal Type:4-20mA analog input Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:1.95kg Dimension:35mm220mm235mm

System compatibility39SAIAAN is compatible with SIEMENS MOORE APACS+ and QUADLOG distributed control system. It installs in APACS rack chassis, works with ACM controller series and matched marshalling termination boards to collect field analog signals.

FunctionThis SAI standard analog input module receives 4-20mA signals from field transmitters, converts analog signals to digital data and transmits to system controller through backplane bus. It collects pressure, temperature, flow and liquid level measurement signals for process monitoring and closed-loop control.

InstallationPower off the rack chassis before installation. Insert the module into designated rack slot and lock the front latch. Connect ribbon cable between module and marshalling termination assembly, wire field transmitters to terminal blocks. Configure channel scaling parameters after power restoration.

InterfaceBackplane bus connector, ribbon cable port for marshalling board, front LED indicators for power, run and channel status.

FeatureStandard analog input I/O module, multi-channel 4-20mA signal acquisition, built-in signal conditioning, overrange detection and channel fault diagnosis, isolated signal circuit. Obsolete legacy spare part, used for APACS+ DCS analog input loop maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Channel no reading: inspect field transmitter loop power, cable wiring and channel scaling setup. Module fault: read diagnostic codes via APACS engineering software, check front LED indicators.

Product BriefSIEMENS MOORE 39SAIAAN is APACS+ series SAI standard analog input module, widely used in petrochemical, power and pulp & paper industries for process analog signal collection.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
