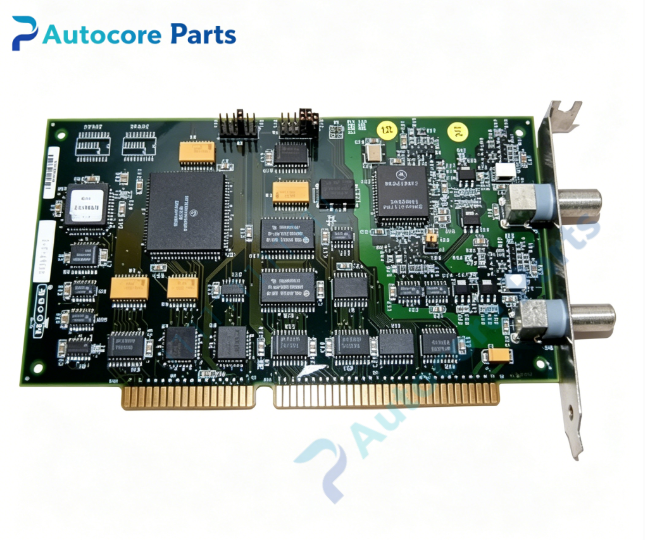

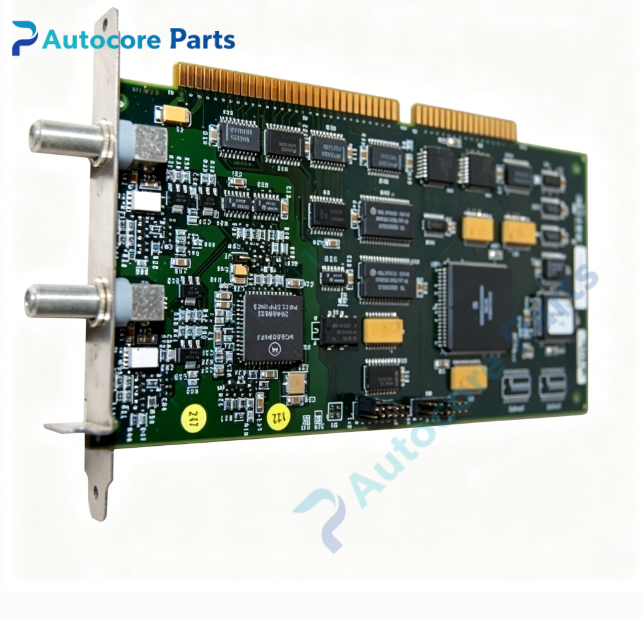

SIEMENS MOORE 16267-1-1 MNET Communication Interface Board

Technical SpecificationsModel:16267-1-1 Brand:SIEMENS MOORE Product Type:MNET Communication Interface Board System:APACS+ DCS System Power Supply:5V / 12V DC from ISA slot Mounting:PC ISA slot installation Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.22kg Dimension:127mm203mm25mm

System compatibility16267-1-1 is compatible with SIEMENS MOORE APACS+ distributed control system. It is an ISA bus MNET interface card installed in engineering workstation PC, used to connect workstation and APACS+ controller rack over MNET network.

FunctionThis MNET interface board implements APACS MNET bus protocol. It uploads real-time process variables, alarm information and controller operating status; downloads control configuration and parameter modification commands to DCS controllers. It supports online monitoring, program editing and system fault diagnosis for APACS+ DCS platform.

InstallationPower off industrial workstation before installation. Insert the card into PC ISA slot and secure bracket. Connect MNET communication cable between card and DCS rack. Set hardware jumper address, install driver and APACS engineering software after power on.

InterfaceISA gold finger connector, MNET communication port, board status LED indicators.

FeatureISA slot MNET interface, reliable bus transmission, on-board communication fault diagnosis, galvanic signal isolation. Obsolete legacy spare part, used for APACS+ DCS workstation communication board maintenance and replacement.

DiagnosticCard not recognized: check ISA slot contact, jumper address and PC hardware resource conflict. Communication offline: inspect MNET cable, terminal resistor and station address setting. Abnormal LED: check on-board power and hardware circuit.

Product BriefSIEMENS MOORE 16267-1-1 is APACS+ series MNET communication interface board, widely used in petrochemical, power and pulp & paper industries for engineering workstation connecting with APACS DCS control racks.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
