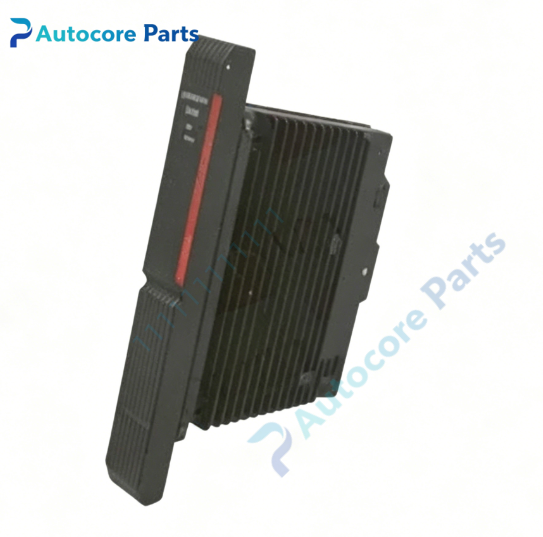

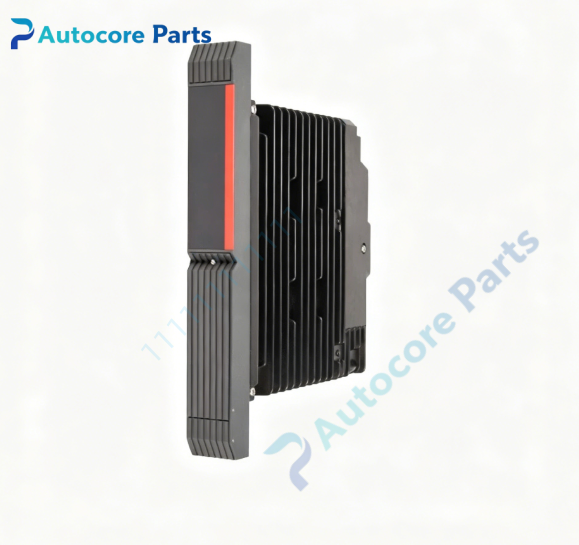

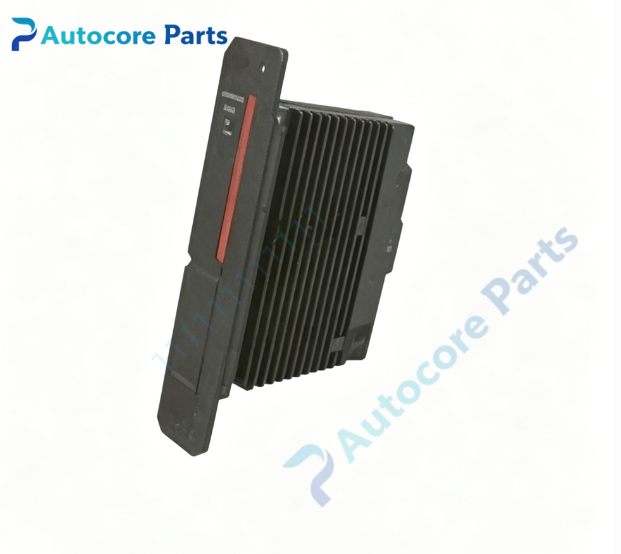

SIEMENS MOORE 16133-79 Standard Analog Input Module

Technical SpecificationsModel:16133-79 Brand:SIEMENS MOORE Product Type:SAM Standard Analog Input Module System:APACS+ DCS System Power Supply:24V DC Input Signal:4-20mA analog current signal Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.78kg Dimension:35mm220mm235mm

System compatibility16133-79 is compatible with SIEMENS MOORE APACS+ distributed control system. It is installed in standard APACS rack chassis to collect analog signals from field transmitters.

FunctionThis SAM standard analog input module converts 4-20mA field analog signals into digital data for DCS controller. It collects pressure, temperature, flow and liquid level signals from field sensors, transmits digital values to backplane bus for process monitoring and closed-loop control.

InstallationPower off the rack chassis before installation. Insert the module into designated rack slot and lock the front latch. Wire field transmitter cables to the matched terminal assembly. Set channel range parameters after power restoration.

InterfaceBackplane bus connector, ribbon cable port for marshalling terminal board, front LED channel status indicators.

FeatureMulti-channel isolated analog input, high signal resolution, built-in overvoltage protection, channel self-diagnosis, stable continuous operation. Obsolete legacy spare part, used for APACS+ DCS analog I/O module maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Channel no reading: verify field sensor wiring, 4-20mA loop power and channel configuration. Module fault: read diagnostic code via APACS configuration software, inspect front LED indicators.

Product BriefSIEMENS MOORE 16133-79 is APACS+ series SAM standard analog input module, widely used in petrochemical, power and pulp & paper industries for field analog signal acquisition.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
