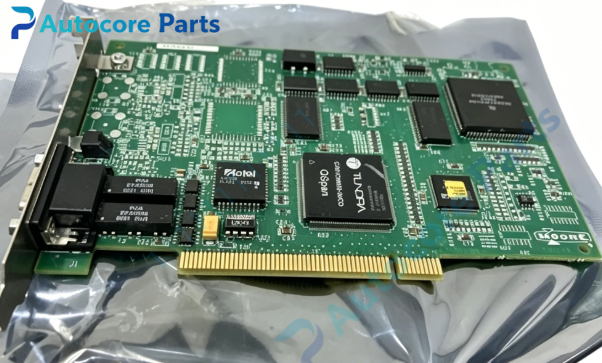

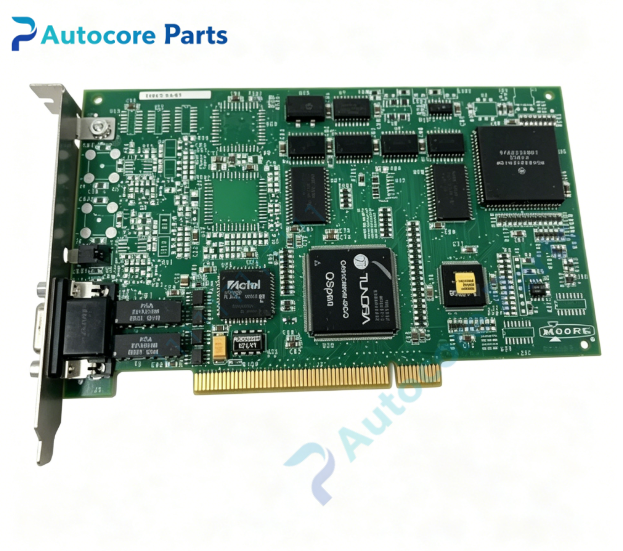

Siemens 16413-16-01 ProSafe MBI Interface Board

Technical SpecificationsModel:16413-16-01 Brand:Siemens Product Type:ProSafe MBI PCI Interface Board Power Supply:Supplied by PCI slot Bus Type:PCI Mounting:PC PCI slot installation Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.45kg Dimension:180mm120mm25mm

System compatibility16413-16-01 belongs to Siemens Moore QUADLOG ProSafe series. It is installed on engineering workstation PC, communicates with QUADLOG SIS and APACS+ DCS racks for offline configuration, program download, online monitoring and fault diagnosis.

FunctionThis MBI PCI interface board establishes communication channel between industrial PC and QUADLOG safety instrumented system. It supports safety logic program download, online real-time data reading, SIF loop status monitoring and fault diagnostic information upload. It is the dedicated hardware required for engineering commissioning, system maintenance and safety logic modification of QUADLOG ESD system.

InstallationPower off the industrial PC before installation. Insert the board into standard PCI slot and secure bracket. Connect dedicated communication cable between MBI board and QUADLOG rack. Install corresponding ProSafe driver software, configure communication parameters, verify online connection with SIS controller.

InterfacePCI gold finger connector, dedicated fieldbus communication port, status LED indicators for power and communication.

FeatureQUADLOG ProSafe dedicated PCI MBI communication board, for SIS engineering workstation, supports program download and system diagnosis, optical isolation, stable long-distance communication. Obsolete legacy spare part, used for QUADLOG safety system maintenance and commissioning workstation replacement.

DiagnosticPC cannot recognize board: check PCI slot contact, hardware driver installation. Communication disconnect: inspect communication cable, terminal resistor and rack power status. Data read abnormal: verify board firmware version and software compatibility.

Product BriefSiemens 16413-16-01 is ProSafe MBI PCI interface board for QUADLOG SIS, widely used in petrochemical and power industries for safety instrumented system engineering configuration and troubleshooting.
