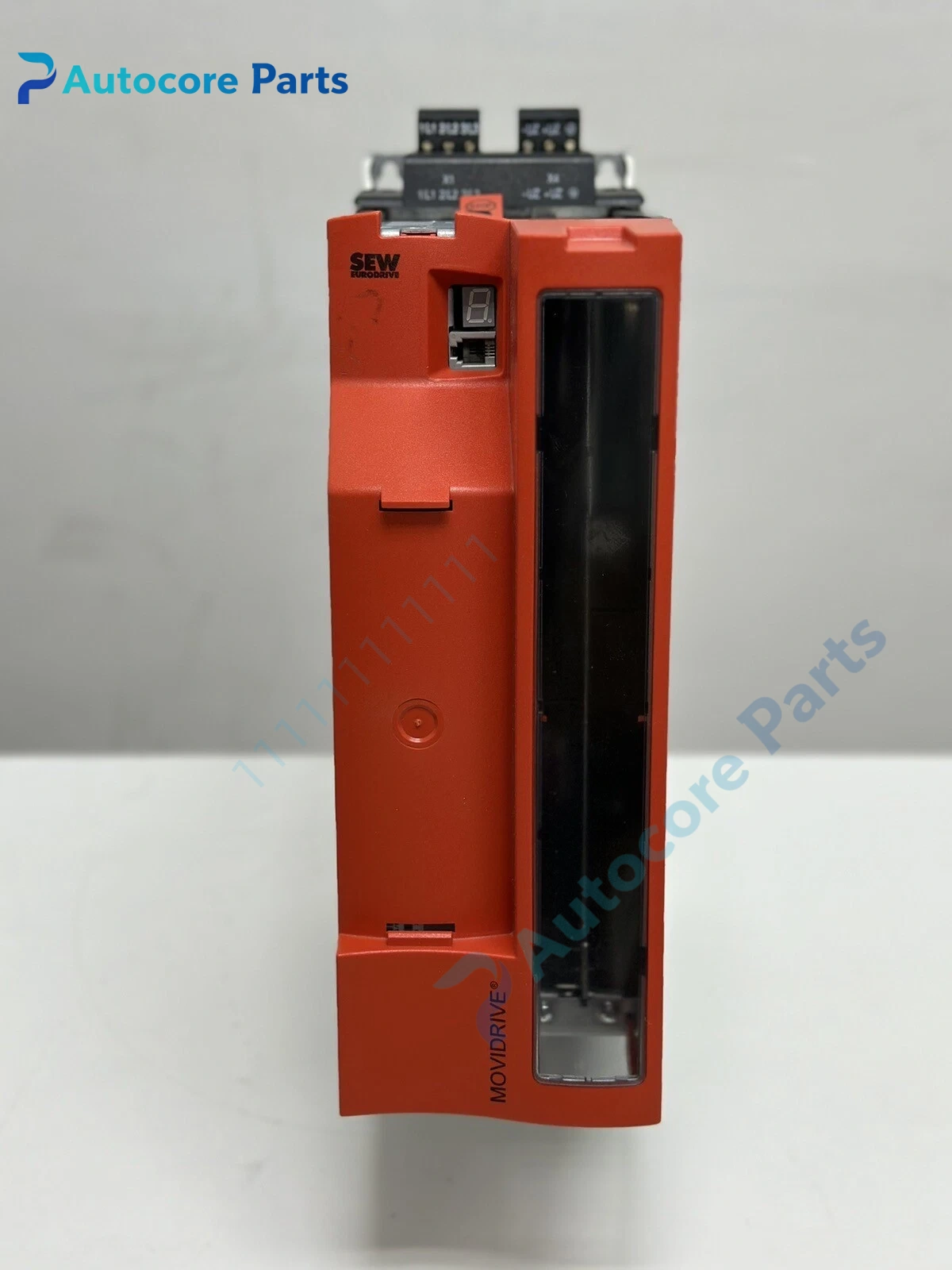

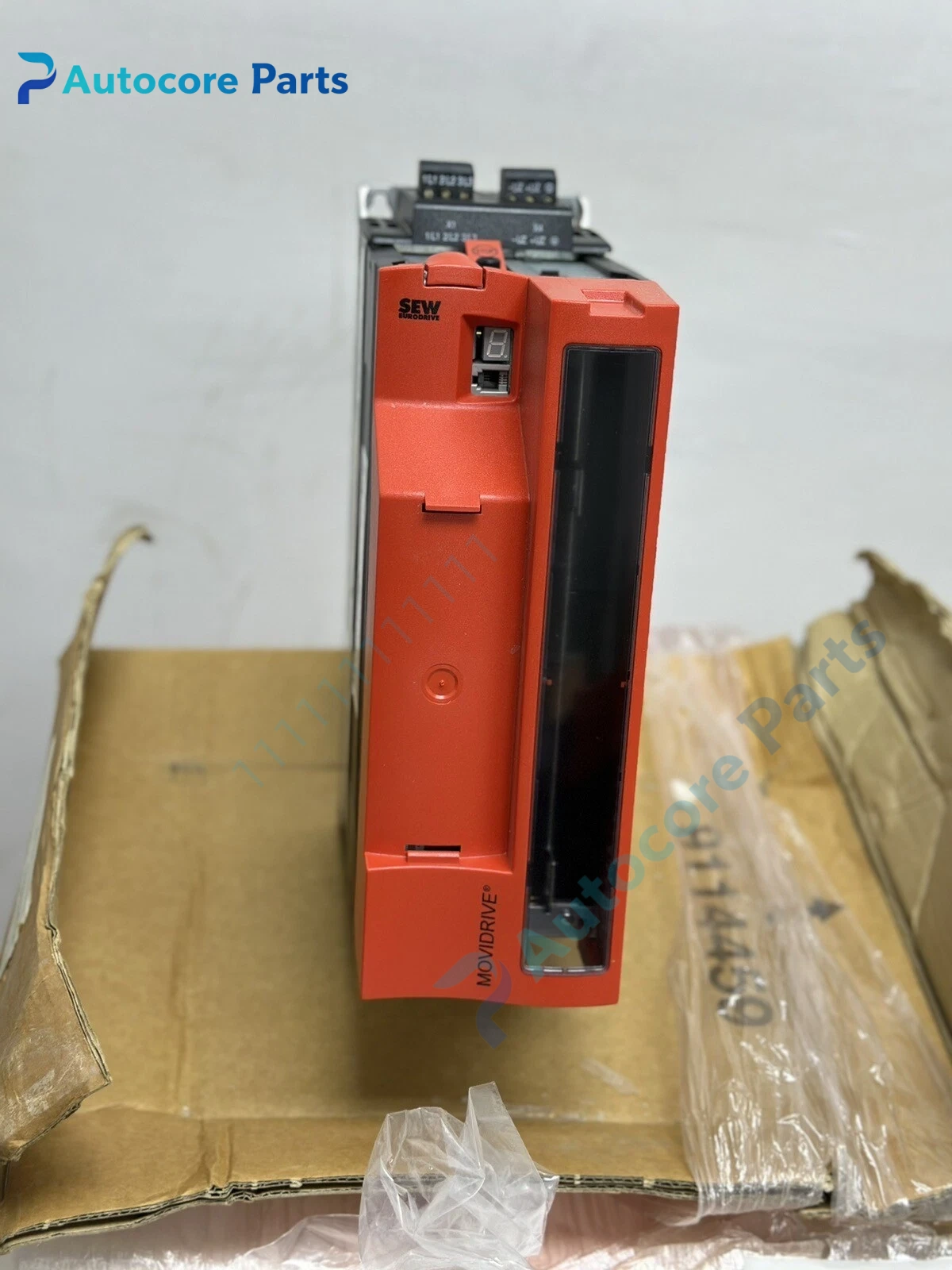

SEW MDX61B0040-5A3-4-00 MOVIDRIVE MDX61B 4kW Variable Frequency Servo Drive Unit

Feature & Principle

This modular multi-purpose drive adopts high-performance PWM control. It supports U/f, VFC, CFC vector and synchronous servo control, built-in IPOS positioning function. It has expansion slots for bus cards such as Profibus, DeviceNet, and System Bus SBus, integrates rich protection functions, suitable for positioning, lifting and conveying motion control.

Specifications

Model: MDX61B0040-5A3-4-00 Brand: SEW EURODRIVE Series: MOVIDRIVE MDX61B Rated power: 4kW Input: 3×380–500V AC Output frequency: 0–400Hz Control mode: V/F, VFC, CFC, servo Expansion: Optional communication I/O cards Cooling: Fan cooling Protection: IP20 Certification: CE, UL

Components & Diagnostics

IGBT power module, main control board, DBG60B operation panel, cooling fan, SBus communication interface and terminal block. Common faults: overcurrent trip, overheat alarm, fan failure, communication interruption and power module breakdown.

Product Brief

MDX61B0040-5A3-4-00 drive, SEW motion spare widely used for packaging machinery, lifting equipment, conveyor lines and automated positioning control cabinets.
