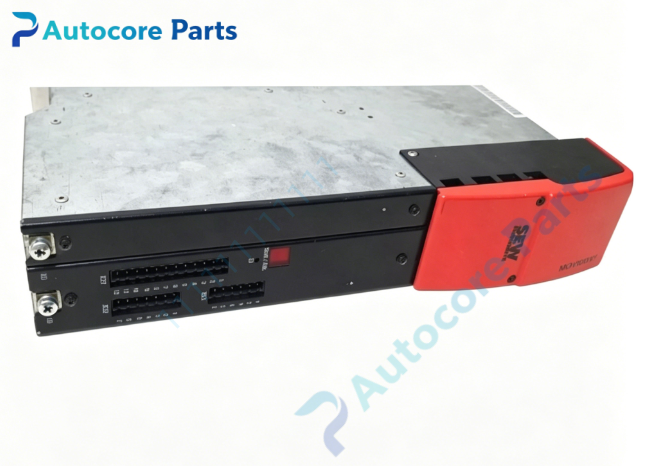

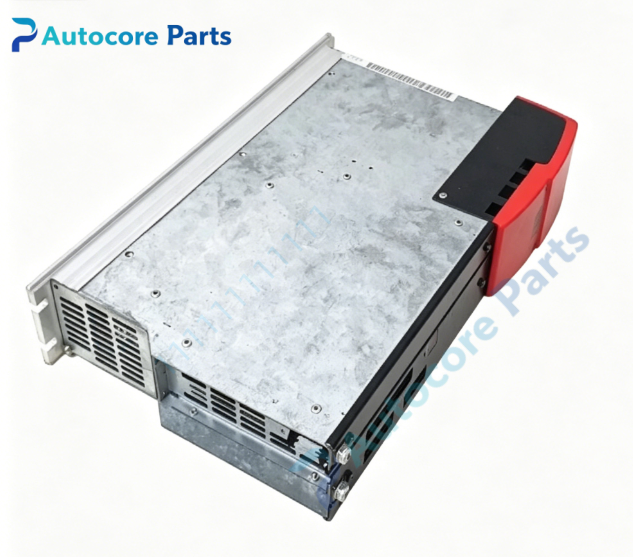

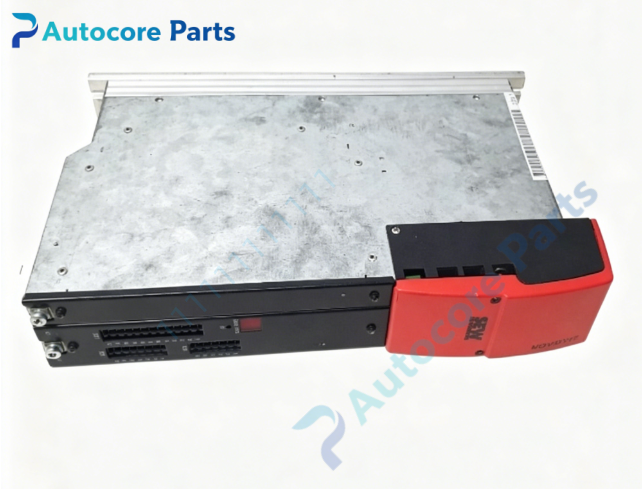

SEW MAS51A015-503 Servo Drive

Technical SpecificationsModel:MAS51A015-503 Brand:SEW Product Type:MOVIDYN Servo Axis Module Input voltage:3×AC380–500V,50/60Hz Rated output current:15 AAC Peak output current:22.5 AAC (0.3s) Internal 24V power supply:5W Pulse frequency:0–400Hz Overload capacity:150% rated current for continuous short time operation Protection class:IP20 Mounting:Cabinet vertical panel mounting Weight:3.5kg Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE,UL

System compatibilityMAS51A015-503 belongs to SEW MOVIDYN series servo axis module. It must work with MPB/MPR power supply unit, matched with SEW synchronous servo motors. Suitable for positioning, speed and torque control. Widely applied in packaging, material handling, machine tool and automated production lines, used as replacement spare part for old MOVIDYN servo systems.

FunctionThis MOVIDYN servo axis module supports position, speed and torque multi-mode control. It integrates IPOS positioning function, built-in I/O terminals and encoder feedback interface. It supports PROFIBUS-DP, CAN and INTERBUS-S fieldbus communication options, realizes high dynamic response for precision motion. Complete protection functions including overcurrent, overvoltage, undervoltage, overtemperature, motor overload and encoder fault alarm.

InstallationCut off main power before installation. Mount servo module vertically inside control cabinet, reserve upper and lower ventilation clearance. Complete power wiring, motor wiring and encoder wiring strictly follow SEW official wiring diagram. Set motor parameters and encoder parameters during commissioning. Implement reliable EMC grounding to reduce electromagnetic interference.

InterfacePower terminal block, digital & analog I/O terminal, encoder feedback port, fieldbus expansion slot, keypad communication port.

FeatureSEW MAS51A015-503 compact MOVIDYN servo axis module, high dynamic motion response for precision automation. Built-in IPOS positioning function, multiple control modes optional. Support parameter backup and upload/download via operation keypad. Discontinued legacy spare part, only for maintenance replacement of SEW MOVIDYN servo systems.

DiagnosticNo power indication: input power loss or power supply module fault; Overcurrent fault: motor short circuit, cable damage or parameter setting error; Encoder fault: feedback cable broken, loose connector or encoder damage; Over temperature alarm: insufficient ventilation, fan failure or continuous overload.

Product BriefSEW MAS51A015-503 is MOVIDYN series 15A three-phase servo axis module, used together with MPB/MPR power supply for high precision position,speed and torque control of SEW synchronous servo motors in industrial automation equipment.
