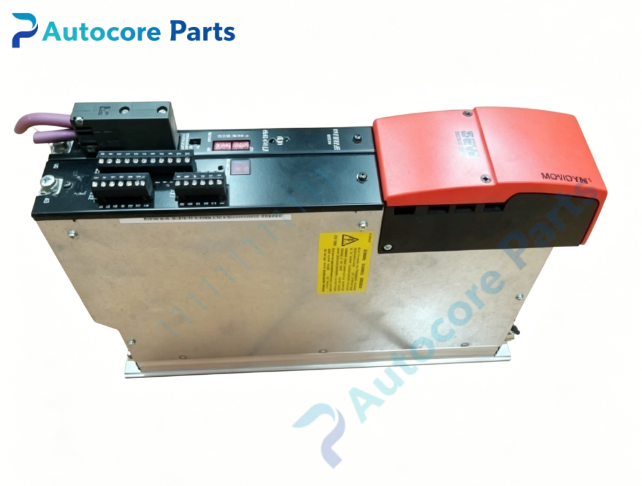

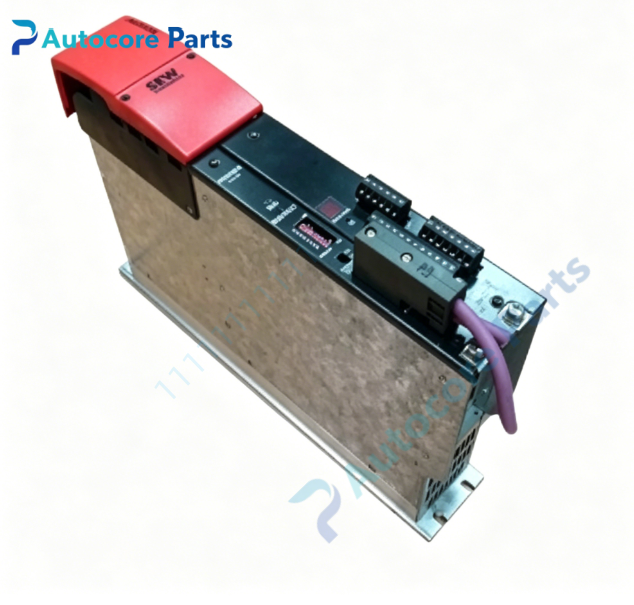

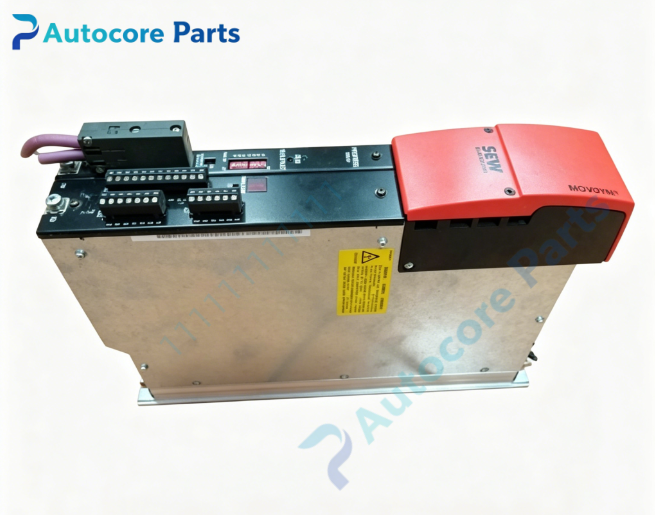

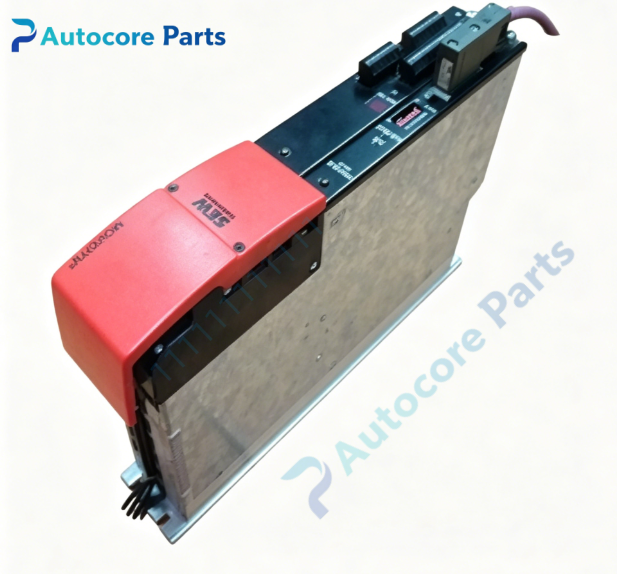

SEW MAS51A010-503 Servo Drive

Technical SpecificationsModel:MAS51A010-503 Brand:SEW Product Type:MOVIDYN Servo Drive Input voltage:3×AC380–500V,50/60Hz Rated output current:10A Pulse frequency:0–400Hz Overload capacity:200% rated current for 5s Protection class:IP20 Mounting:Cabinet vertical panel mounting Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE,UL

System compatibilityMAS51A010-503 belongs to SEW MOVIDYN series servo drive. It is matched with SEW synchronous servo motors, suitable for positioning, speed and torque control. Widely applied in packaging, material handling, machine tool and automated production lines, used as replacement spare part for old MOVIDYN servo systems.

FunctionThis MOVIDYN servo controller supports position, speed and torque multi-mode control. It integrates STO safe torque off function, built-in I/O terminals and encoder feedback interface. It supports multiple fieldbus communication options, realizes high dynamic response for precision motion. Complete protection functions including overcurrent, overvoltage, undervoltage, overtemperature, motor overload and encoder fault alarm.

InstallationCut off main power before installation. Mount servo drive vertically inside control cabinet, reserve upper and lower ventilation clearance. Complete power wiring, motor wiring and encoder wiring strictly follow SEW official wiring diagram. Set motor parameters and encoder parameters during commissioning. Implement reliable EMC grounding to reduce electromagnetic interference.

InterfacePower terminal block, digital & analog I/O terminal, encoder feedback port, fieldbus expansion slot, keypad communication port.

FeatureSEW MAS51A010-503 compact MOVIDYN servo drive, high dynamic motion response for precision automation. Built-in STO safety function, multiple control modes optional. Support parameter backup and upload/download via operation keypad. Discontinued legacy spare part, only for maintenance replacement of SEW MOVIDYN servo systems.

DiagnosticNo power indication: input power loss or internal fuse blown; Overcurrent fault: motor short circuit, cable damage or parameter setting error; Encoder fault: feedback cable broken, loose connector or encoder damage; Over temperature alarm: insufficient ventilation, fan failure or continuous overload.

Product BriefSEW MAS51A010-503 is MOVIDYN series 10A three-phase servo drive, for high precision position,speed and torque control of SEW synchronous servo motors in industrial automation equipment.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
