SEW DT80N-4 Asynchronous Motor

Technical SpecificationsModel:DT80N-4 Brand:SEW Product Type:Three Phase Asynchronous Squirrel Cage AC Motor Frame size:80N Pole:4 pole Rated power:0.75kW Rated speed:1380rpm Rated voltage:380V Rated current:1.9A Protection class:IP55 Insulation class:F Cooling:Self cooling Operating temperature:-20℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

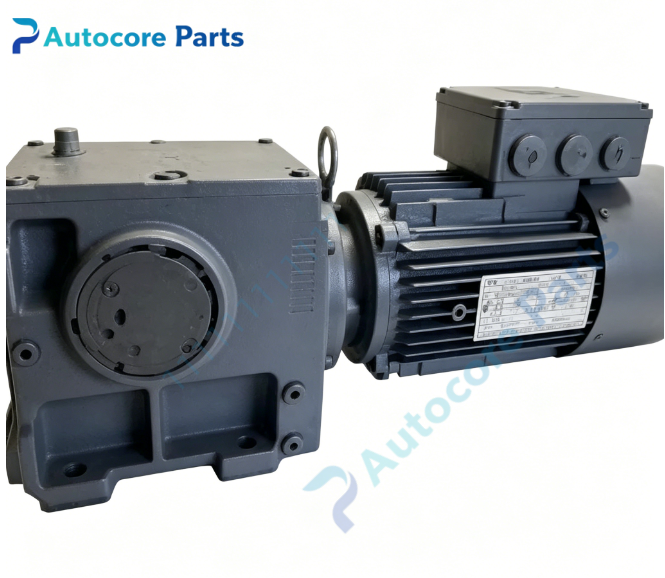

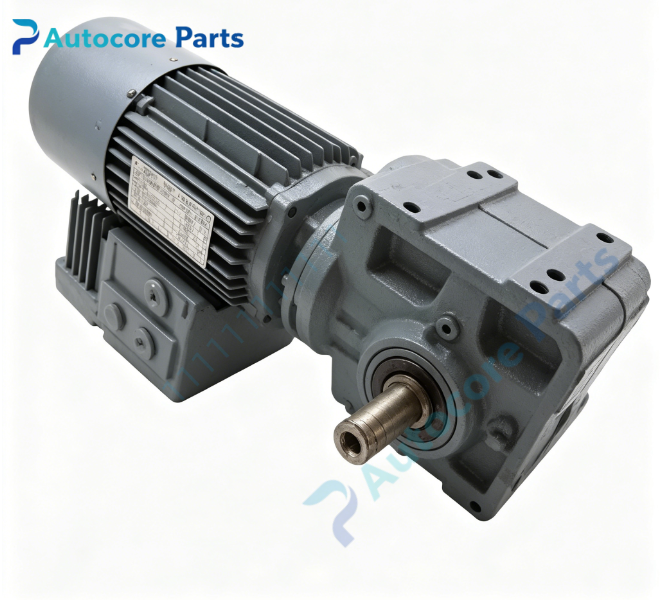

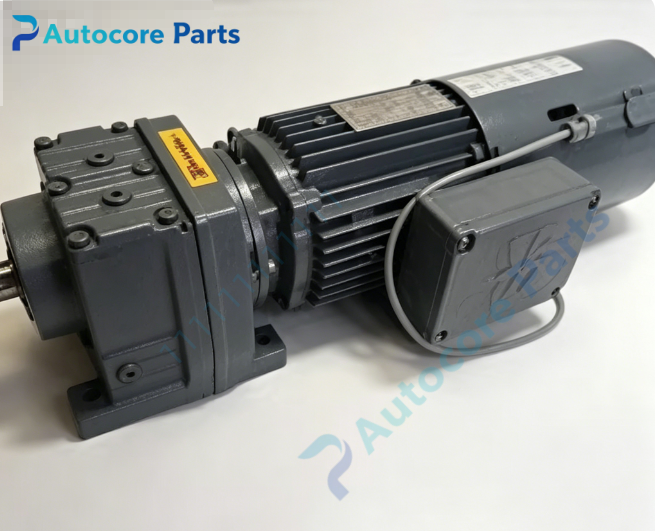

System compatibilityDT80N-4 belongs to SEW DT series standard asynchronous motor. It can be combined with SEW R,F,K,S,W series gear reducers to form integrated gearmotors. Compatible with SEW MOVIDRIVE and MOVITRAC series inverters. Widely used for conveyor, packaging, material handling and general automation equipment, legacy SEW drive system maintenance and spare replacement.

FunctionThis 4-pole three-phase squirrel cage asynchronous motor provides stable continuous rotary power for industrial equipment. Standard terminal box for simple power wiring. It can be matched with various SEW gearboxes to reduce speed and increase torque for low-speed heavy load applications. Cast aluminum housing ensures stable operation, low noise and good heat dissipation.

InstallationCut off power supply before installation. Mount motor via foot or flange installation. Align shaft when assembling with gear unit or coupling, avoid excessive radial and axial load. Separate power cable from signal cable to reduce electromagnetic interference. Tighten wiring terminals inside terminal box, check insulation resistance before power on.

InterfaceStandard wiring terminal box, motor power terminals.

FeatureSEW DT80N-4 compact aluminum housing asynchronous motor,0.75kW 4-pole design. IP55 protection, dust-proof and splash-proof. F class insulation, strong overload capacity. Simple and robust squirrel cage rotor structure, low maintenance requirement. Discontinued legacy spare part, only for DT series motor maintenance replacement. Suitable for medium-duty conveyor and packaging automation equipment.

DiagnosticMotor cannot start: power supply missing or loose wiring inside terminal box; Overheat alarm: overloaded load, poor ventilation or bearing damage; Abnormal vibration & noise: shaft misalignment, bearing wear or uneven air gap; Insulation breakdown: winding aging or damp environment.

Product BriefSEW DT80N-4 is DT series 80N frame 0.75kW 4-pole three-phase asynchronous squirrel cage motor, matched with SEW gear reducers and inverters for general industrial transmission applications.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
