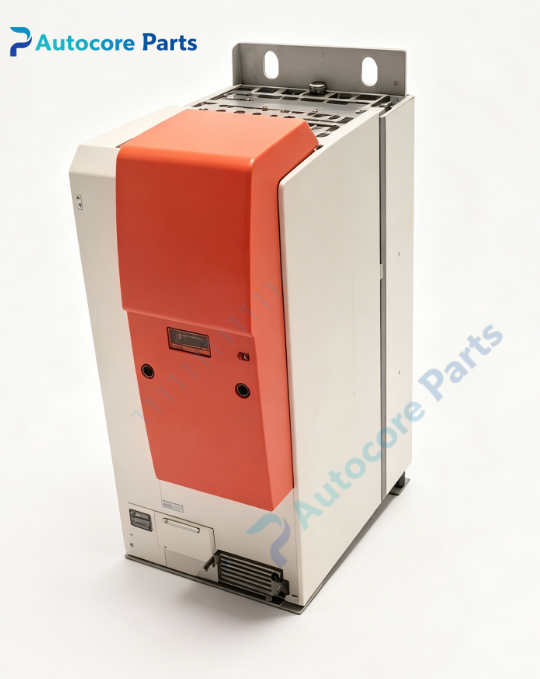

SEW 055-503 MOVITRAC Inverter Control Board

Technical SpecificationsModel:055-503 Brand:SEW Product type:MOVITRAC Inverter Control Board Weight:0.47kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility055-503 is SEW plug-in control board,designed for legacy MOVITRAC series inverter. It cooperates with power supply board,IGBT power unit and operation panel. It serves as the core logic control unit for low-power variable speed drive,used for maintenance and spare replacement of old SEW MOVITRAC inverters.

Function055-503 is dedicated printed circuit control board for SEW MOVITRAC inverter. It receives analog speed setpoint and digital run/stop signals,calculates and outputs PWM drive pulses to IGBT module. It samples DC bus voltage,output current and power module temperature signals,activates overcurrent,overvoltage,undervoltage and overtemperature protection. It supports parameter storage and fault history recording,parameters can be edited via local operation panel. Onboard DIP switches for input signal mode configuration. Dual LED indicators display board power supply and fault alarm status. Built-in EMC filter circuit to suppress cabinet electromagnetic interference.

InstallationPower off the whole drive cabinet and cut main power supply. Discharge DC bus capacitor before disassembly and assembly. Insert 055-503 control board into inverter internal slot and fasten fixing screws. Connect backplane connector for power and signal transmission. Separate low-voltage control wiring and high-power motor cables. Power on the inverter,configure motor parameters and test motor start,stop and speed regulation performance.

InterfaceBackplane edge connector,analog/digital signal input,PWM pulse output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,DIP switch bank,keypad communication socket.

FeatureSEW 055-503 plug-in inverter control board. PWM generation and V/F speed regulation circuit. Integrated multi-level drive protection function. DIP switch for signal mode selection. Gold plated connector for stable signal transmission. Dual LED visual indication for power and fault state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old MOVITRAC inverter spare replacement. Suitable for conveyor,packaging machinery and material handling equipment renovation and maintenance.

DiagnosticMotor cannot start:PWM circuit damage or wrong parameter setting; Inverter frequent trip:current sampling circuit abnormality; LED no light:board auxiliary power loss; Keypad no communication:connector poor contact; Intermittent speed fluctuation:backplane pin oxidation and poor contact.

Product BriefSEW 055-503 is MOVITRAC inverter control board. It is the core logic component of SEW legacy MOVITRAC series inverter,completes PWM signal output,closed-loop speed regulation and multi-protection,widely used as spare part for old SEW inverter maintenance.
