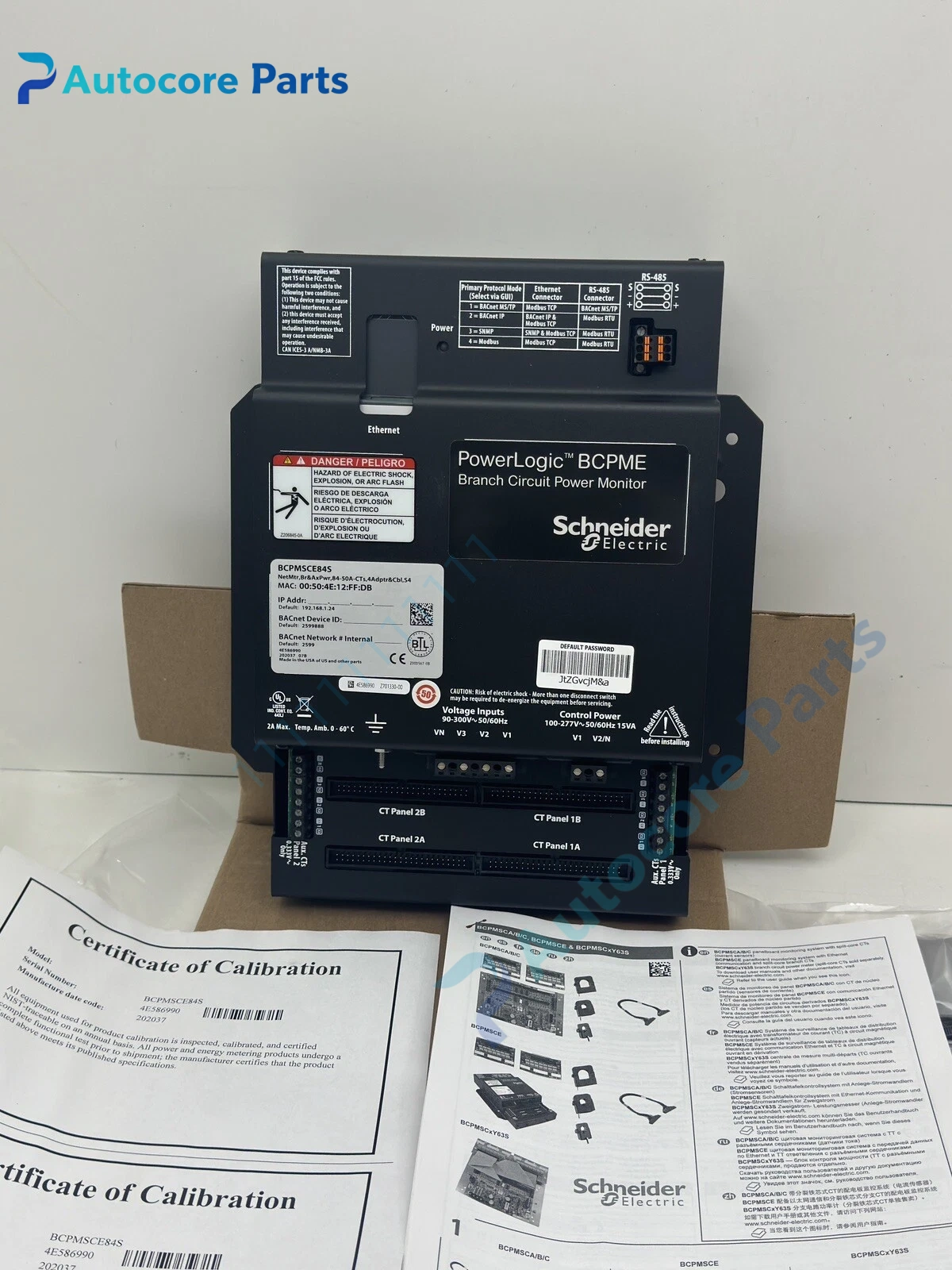

Schneider Electric BCPMSCE84S BCPM Multi-Circuit Energy Meter Unit

Module Feature

BCPMSCE84S is Schneider Electric PowerLogic BCPM advanced multi-circuit power monitoring module, designed for dense branch circuit metering scenarios such as data center power distribution units.

It supports up to 84 split-core 50A CT inputs, collects power data of each branch circuit simultaneously. Integrated Ethernet port and serial communication interface, compatible with multiple industrial protocols. It has rich alarm functions including over-current, under-current and voltage abnormality. DIN rail or plate mounting design, convenient for retrofitting in existing distribution cabinets.

Working principle

Split-core current transformers convert branch load current into low-voltage analog signal and send it to the main acquisition board.

The sampling circuit converts analog signals into digital data, calculates power, energy, power factor and power quality indicators. The module uploads measurement data and alarm information to upper monitoring host through Ethernet or RS485 bus.

Onboard components

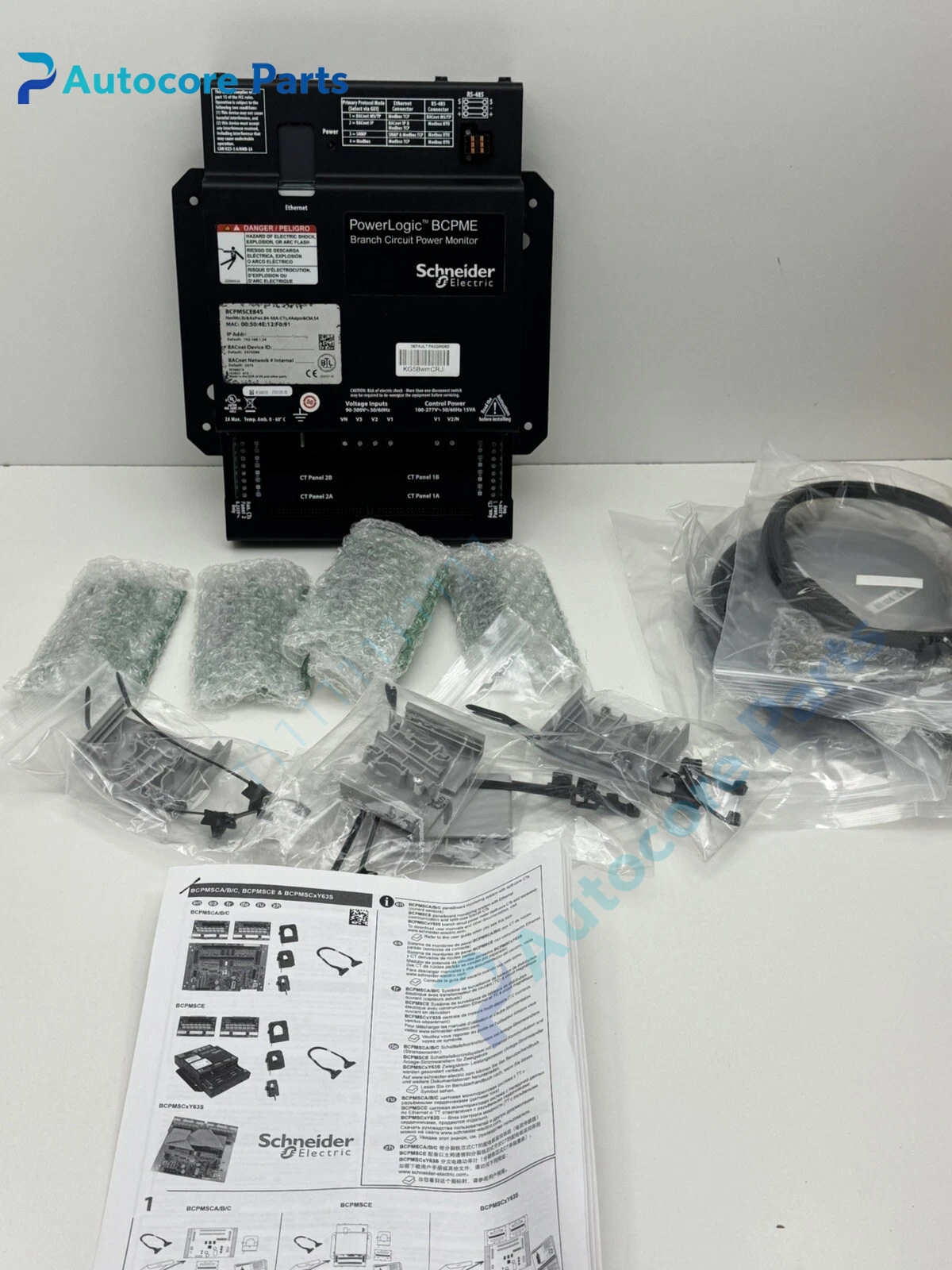

Main processing board, multi-channel signal sampling circuit, CT adapter terminal board, Ethernet communication chip, power management circuit, status LED array, ribbon cable for adapter connection.

LED indicators

Front LEDs indicate power supply, system running, Ethernet communication and fault alarm status.

Hardware self‑diagnosis

Self-check covers power abnormality, CT open circuit, signal out-of-range, communication disconnection and internal hardware error. Fault records can be read via network register.

Programming software

EcoStruxure Power monitoring software for channel configuration, alarm threshold setting, energy data recording and log export.

Electrical & Process Parameters

Model:BCPMSCE84S Brand:Schneider Electric Series:PowerLogic BCPM Device type:84 Channel Branch Circuit Power Monitor CT type:Split core 50A, 0.333V output Supply voltage:90~277V AC Communication:Ethernet Modbus TCP / BACnet IP / SNMP, RS485 Modbus RTU Function:Multi-branch current, power and energy measurement for energy management

Mechanical & Structure

Mounting:DIN rail or panel base mounting Protection class:IP30 Housing:Metal and plastic composite board assembly

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE, ANSI C12.20 compliant Status:Schneider Electric original power monitoring spare

Installation

Fix main board and adapter boards in distribution cabinet. Install split-core CT on each branch cable and connect CT wires to adapter terminals.

Set IP address, baud rate and alarm thresholds through configuration software. Verify all branch readings and communication connection before commissioning.

Interface

Ethernet port, RS485 bus terminals, CT adapter board ribbon connectors, AC power terminals.

Diagnostic

Channel no reading: CT open circuit, CT wiring loose or CT damaged.

Device offline: Network cable fault, IP conflict or power loss.

Measurement drift: CT installation air gap too large or CT saturation.

Product BriefSchneider Electric BCPMSCE84S PowerLogic 84-channel branch power monitor, 50A split-core CT, Ethernet Modbus TCP, used for data center PDU and building distribution energy monitoring.
