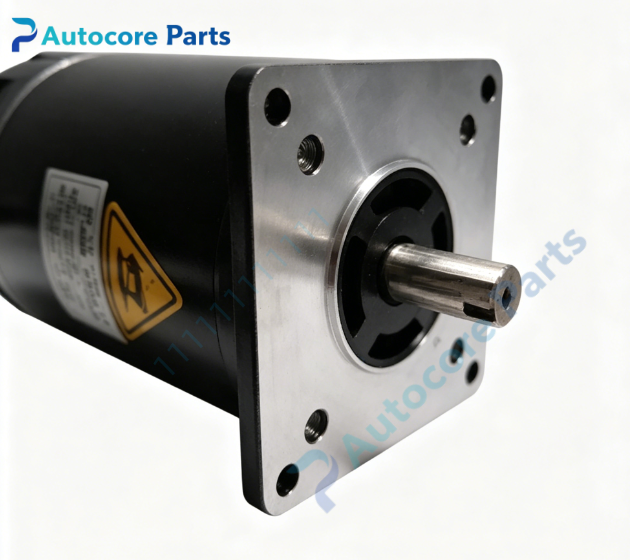

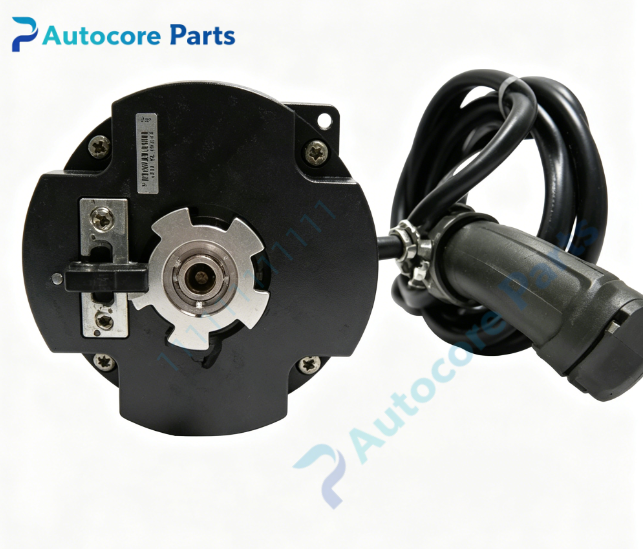

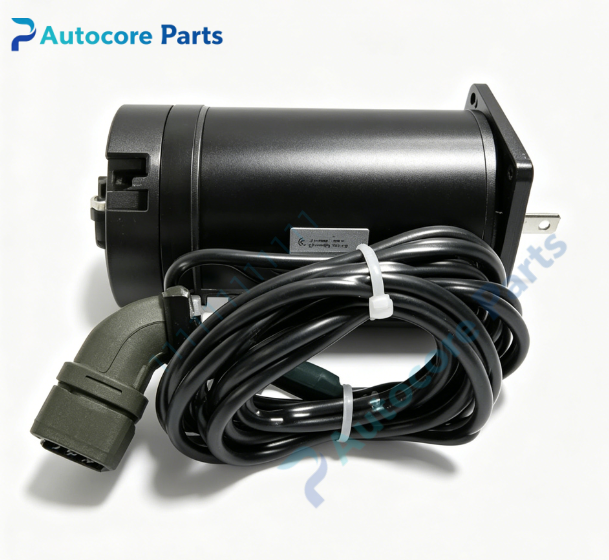

Sanyo Denki RM2BJ0RORZE AC Servo Motor

Module Feature

Sanyo Denki RM2BJ0RORZE belongs to SANMOTION RM series high performance AC brushless servo motor. AC200V power class, optimized rotor inertia design. Built-in high resolution absolute rotary encoder for closed-loop position feedback. Compact square flange structure, low cogging torque, high torque density, strong overload capacity and excellent dynamic response. Heavy duty double ball bearing assembly, outstanding vibration resistance and stable low-speed running performance. Widely used for precision motion axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle

The matched servo amplifier outputs three-phase AC power to motor windings. The built-in absolute encoder continuously feeds rotor angle and speed signal back to servo drive. The drive performs real-time closed-loop calculation and adjusts output current to realize precise torque, speed and position control. Winding damage or encoder failure will trigger servo alarm and stop movement.

Onboard components

Motor stator & rotor assembly,built-in high resolution absolute rotary encoder,heavy duty double ball bearing set,aluminum alloy housing,3-phase power connector,encoder feedback signal connector

LED indicators

No LED indicators on motor body; status LEDs are located on matched servo drive unit.

Hardware self-diagnosis

Visual inspection of shaft surface,connector pins and cable insulation; winding continuity and insulation resistance test; encoder signal waveform inspection; manual rotation smoothness test.

Programming software

Sanyo Denki SANMOTION servo setup software for motor parameter auto recognition, servo gain tuning and alarm log reading.

Electrical & Process Parameters

Rated voltage:AC200V Rotor type:Optimized inertia Feedback:Built-in high resolution absolute rotary encoder Brake:Without holding brake Cooling:Natural air cooling

Mechanical & Structure

Mounting:Square flange mount Protection class:IP65 (shaft and connector area) Shaft:Keyway shaft

Environmental

Operating temperature:0℃ ~ +40℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION RM series AC servo motor

System compatibility

Compatible with Sanyo Denki SANMOTION PY / PZ series servo drives for automation precision axis positioning.

Function

RM2BJ0RORZE servo motor manufactured by Sanyo Denki. It provides high precision rotary motion and positioning control for automation axis. Winding damage,encoder failure or loose coupling will trigger servo alarm and stop movement. It is compact precision motion actuator for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off servo drive system completely. Align motor shaft and load coupling,fasten flange mounting bolts securely. Wire motor power cable and encoder feedback cable. Configure servo parameters via SANMOTION software, perform axis jog test and positioning verification before formal operation.

Interface3-phase power connector, encoder feedback signal connector on housing of RM2BJ0RORZE.

Diagnostic

Motor cannot rotate:Power wiring error, servo enable signal missing or incorrect motor parameters.

Positioning inaccuracy:Encoder fault, loose coupling or servo gain mismatch.

Overheat alarm:Overloaded load, poor ventilation or bearing wear.

Abnormal running noise:Bearing damage or shaft misalignment between motor and load.

Product Brief

RM2BJ0RORZE Sanyo Denki SANMOTION RM series AC servo motor,AC200V,built-in high resolution absolute rotary encoder,square flange mount,no holding brake,for semiconductor wet bench and chemical delivery precision motion axis control.
